PLAN #417-539

Key Specs


1433
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

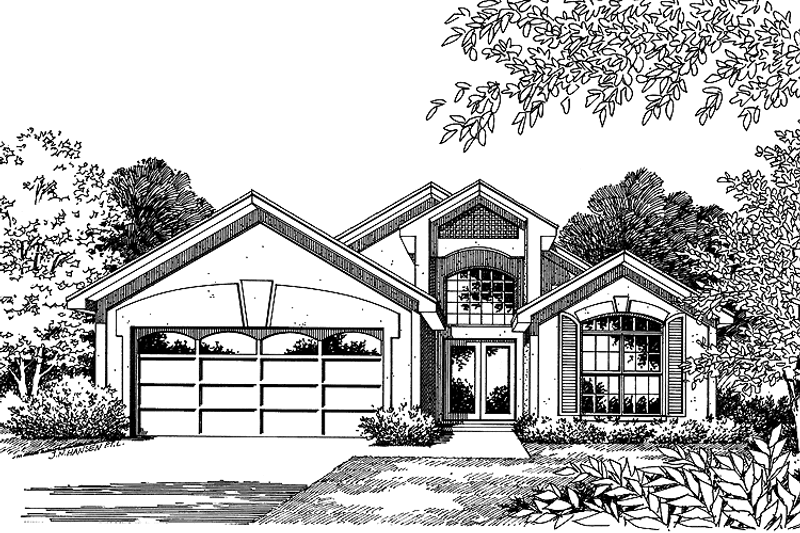

A volume entry and open planning give this house a feeling of spaciousness that goes far beyond its modest square footage. The foyer opens onto a large living and dining area that combines for flexible entertaining needs. The kitchen is planned to fulfill a gourmet's dream and merges with the breakfast area for informal dining. Located to the rear for privacy, the master suite opens onto the patio and features a lush bath with a huge walk-in closet. Two secondary bedrooms share a full hall bath. The covered rear patio has a dramatic vaulted ceiling giving an extra touch of elegance to casual living.

Floor Plans

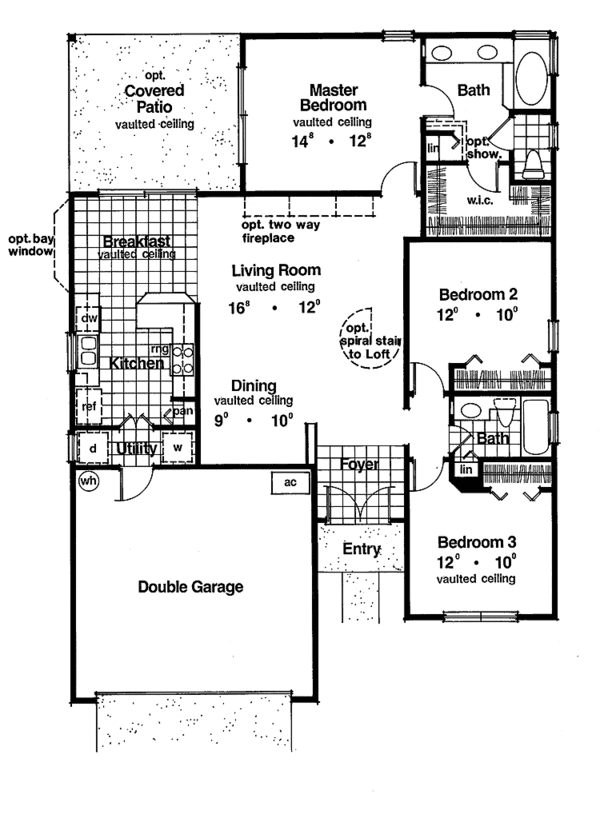

Floor Plan - Main Floor Plan
Floor Plan - Main Floor Plan

Full Specs & Features


Area Main Floor : 1433 sq/ft
Bedroom Features Split Bedrooms
Walk In Closet
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Kitchen Features Kitchenette Wet Bar
Breakfast Nook
Walk In Pantry Cabinet Pantry
Outdoor Spaces Covered Front Porch
Covered Rear Porch
Loft Balcony

What's Included In This Plan Set


Home Design Services - Zirkel

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Plan Set
5 Copy Set :
$690.00
5 printed plan sets mailed to you.
PDF Set :
$890.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
$890.00
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
Foundation
Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Framing
Wood 2x4:
$0.00
Wood 2x4
Additional Options
Additional Construction Sets :
45.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
75.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Home Furniture Planner :
19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
100.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Audio Video Design :
100.00
Receive an overlay sheet with suggested placement of audio and video components.
