PLAN 72-192

Key Specs

sq ft





This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

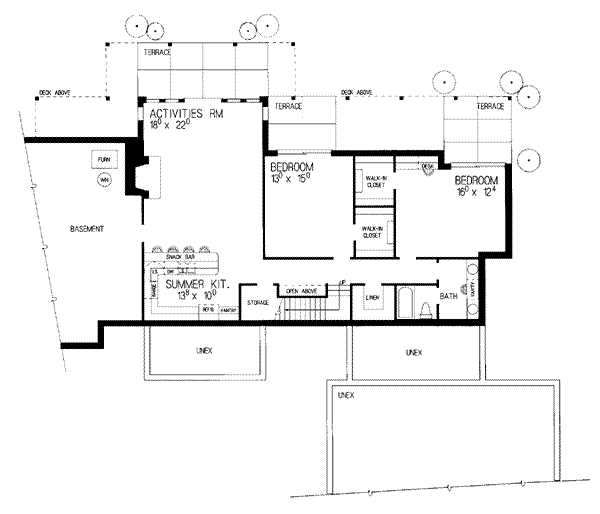

Floor Plan - Lower Floor Plan
Modern Floor Plan - Lower Floor Plan Plan #72-192

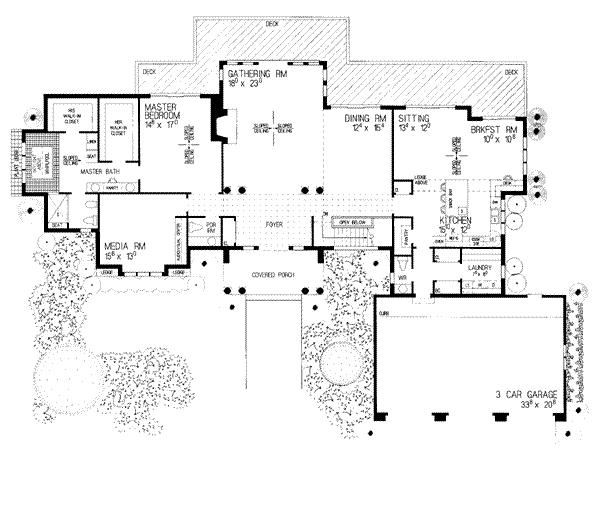

Floor Plan - Main Floor Plan
Modern Floor Plan - Main Floor Plan Plan #72-192

Full Specs & Features

Depth : 64' 8"
Height : 24'
Width : 98'
Basement Living: 1548 sq/ft
First Floor: 2662 sq/ft height 8'
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 10:12
Roof Framing : Combination Truss/Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : Wood - 2x6
Bedroom Features
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Hobby Rec Room Game Room
Storage Area
Garage Features
Oversized Garage
Lot Characteristics
Suited For Sloping Lot
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Empty Nester

3rd BR Closet:

39 sq/ft width 5' 6" x depth 7' 3"

Basement Foundation:

1159 sq/ft width 35' 6" x depth 32' 8"

Bedroom 2:

197 sq/ft width 16' x depth 12' 4"

Bedroom 2 Closet:

40 sq/ft width 5' 6" x depth 7' 4"

Bedroom 3:

195 sq/ft width 13' x depth 15'

Bedroom 3 Closet:

40 sq/ft width 5' 6" x depth 7' 4"

Breakfast Room:

106 sq/ft width 10' x depth 10' 8"

Dining Room:

189 sq/ft width 12' 4" x depth 15' 4"


124 sq/ft width 13' 4" x depth 9' 4"

Game Room:

203 sq/ft width 15' 8" x depth 13'


695 sq/ft width 33' 8" x depth 20' 8"

Gathering Room:

414 sq/ft width 18' x depth 23'


97 sq/ft width 4' x depth 24' 4"

Hall Closet:

33 sq/ft width 6' 9" x depth 5'


189 sq/ft width 15' 10" x depth 12'

Laundry Room:

56 sq/ft width 7' x depth 8'

Master Bathroom:

340 sq/ft width 20' x depth 17'

Master Bedroom:

249 sq/ft width 14' 8" x depth 17'

Master Closet:

77 sq/ft width 6' 10" x depth 11' 4"

Porch - Front:

156 sq/ft width 8' x depth 19' 6"

Powder Room:

32 sq/ft width 6' 1" x depth 5' 4"

Wash Room:

21 sq/ft width 3' 2" x depth 6' 10"

What's Included In This Plan Set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.

Plan Set

PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set :
5 printed plan sets mailed to you.
8 Copy Set :
8 printed plan sets mailed to you.
Reproducible Set :
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Single Set :
One printed set for bidding purposes only. Not a legal building set for construction.


Daylight Basement:
Ideal for sloping lot, lower level of home partially underground.

Additional Options

Additional Construction Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Additional Use License :
Additional Use License.
Audio Video Design :
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Home Furniture Planner :
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
Receive an overlay sheet with suggested placement of lighting fixtures.
Material List :
A list of building supplies needed to construct the infrastructure of your new house.
Mirror Reversed Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Right-Reading Reverse :
Choose this option to reverse your plans and to have the text and dimensions readable.
Unlimited Use License :
Unlimited Use License.

*Alternate Foundations may take time to prepare.
