PLAN #100-412

Key Specs


1443
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

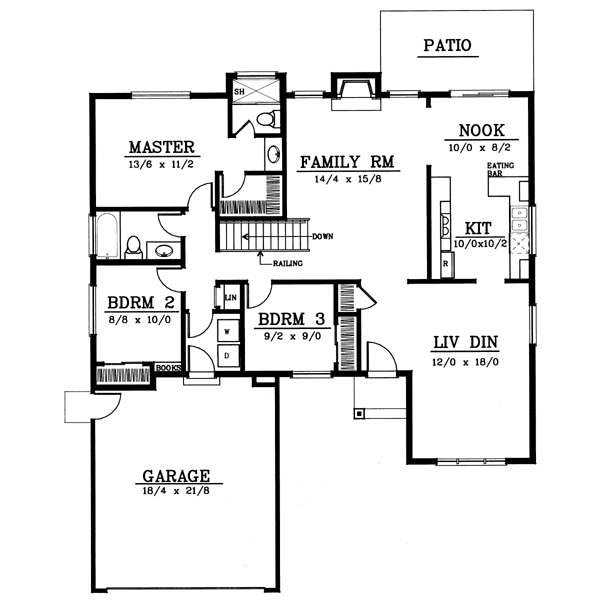

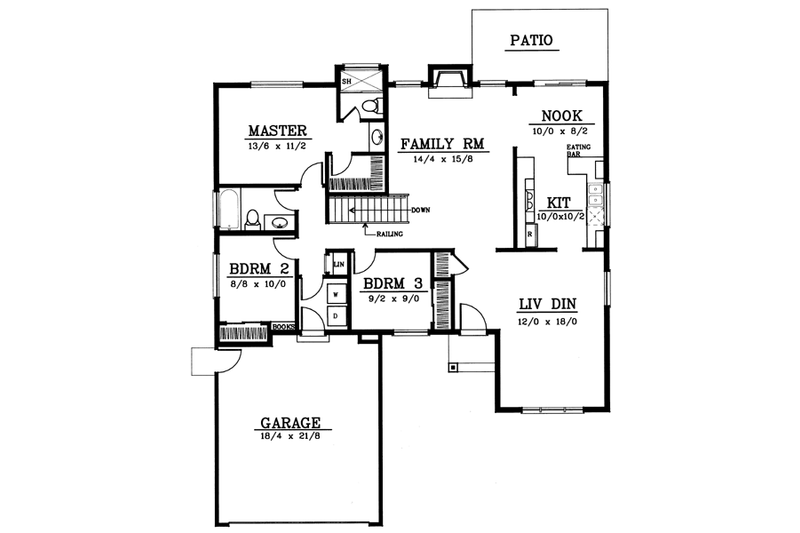

Floor Plan - Main Floor Plan
Floor Plan - Main Floor Plan

Full Specs & Features


Dimension Depth : 53'
Height : 19'
Width : 45'
Area Basement : 1443 sq/ft
Garage : 385 sq/ft
Main Floor : 1443 sq/ft
Ceiling Ceiling Details : Family Room: vaults to 12'6"Master Bedroom: vaults to 11'9"Living Room: vaults to 10'5"Dining Room: vaults to 10'5"
Main Ceiling : 8'
Roof Primary Pitch : 6:12
Secondary Pitch : 8:12
Exterior Wall Framing Framing : 2"x6"
Bedroom Features Walk In Closet
Kitchen Features Peninsula Eating Bar
Additional Room Features Family Room Keeping Room
Lot Characteristics Suited For Narrow Lot
Suited For View Lot
More Economical To Build

What's Included In This Plan Set


Planworks

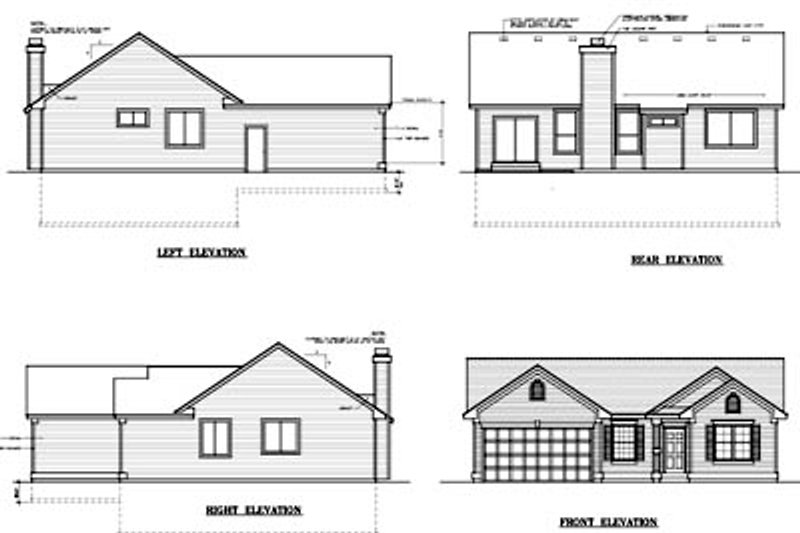

  • Elevations drawn at 1/4" = 1'-0" scale, and includes:
    Material labels
    Floor-to-floor heights
    Roof slope indicators
    Attic ventilation notes
  • Floor Plans drawn at 1/4" = 1'-0" scale, and includes:
    All post and beam locations
    Door and window sizes
    Complete and accurate dimensions
    Room labels and interior room sizes
    Electrical layouts
    Code-related notes
    Building section markers
    Floor joist type, spacing and direction
  • Foundation or Basement Plan drawn at 1/4" = 1'-0" scale, and includes:
    All post and beam locations
    Door and window sizes
    Complete and accurate dimensions
    All foundation wall and footing sizes
    Code-related notes
    Building section markers
    Floor and deck joist type, spacing and direction
    Mechanical equipment location
    Electrical layouts
  • Roof Plan drawn at 1/4" = 1'-0", and includes:
    All beam and header locations
    Building section markers
    Code-related notes
    All necessary notes pertaining to the structural system
  • Building Sections drawn at 1/4" = 1'-0" scale, and includes:
    Beam connections and locations
    Floor joist type and spacing
    Floor-to-floor heights
    Non-typical plate heights indicated
  • Typical wall sections drawn at 1/2" = 1'-0" scale, and includes:
    All labels indicating wall construction
    Foundation wall thickness and minimum reinforcing
    Insulation type and rating
  • Miscellaneous Notes and Details: Including miscellaneous framing details, stairway details and general notes covering code requirements for residential construction
» See important information before purchasing.
Plan Set
PDF Set :
$725.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
$800.00
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
5 Copy Set :
$825.00
5 printed plan sets mailed to you.
8 Copy Set :
$875.00
8 printed plan sets mailed to you.
CAD Set :
$1300.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation
Basement:
$0.00
Ideal for level lot, lower level of home partially or fully underground.
Crawlspace:
$150.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab:
$150.00
Ideal for level lot, single layer concrete poured directly on grade.
Daylight Basement:
$250.00
Ideal for sloping lot, lower level of home partially underground.
Additional Options
Right-Reading Reverse :
150.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
