PLAN 84-778
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 52' 6"
Height : 17'
Width : 39' 10"
Area
First Floor: 1444 sq/ft
Roof
Primary Pitch : 5:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick/Shingle
Framing : Wood - 2x4
Kitchen Features
Kitchen Island
Additional Room Features
Family Room Keeping Room
Rooms

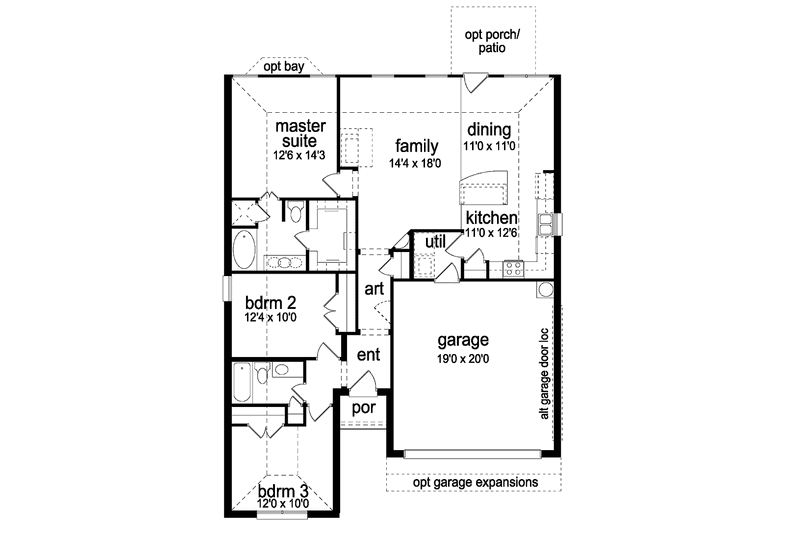

Bedroom 2:
123 sq/ft width 12' 4" x depth 10'
Bedroom 3:
120 sq/ft width 12' x depth 10'
Dinette:
121 sq/ft width 11' x depth 11'
Family Room:
257 sq/ft width 14' 4" x depth 18'
Garage:
380 sq/ft width 19' x depth 20'
Kitchen:
137 sq/ft width 11' x depth 12' 6"
Master Bedroom:
178 sq/ft width 12' 6" x depth 14' 3"
What's Included In This Plan Set
- FOUNDATION LAYOUT PLAN: 1/4" Scale - Dimensioned but not engineered. Structural design of foundation needs to be provided by a local structural engineer.
- FRONT RENDERING: 1/4" Scale
- FLOOR PLAN(S): 1/4" Scale - Electrical and plumbing noted directly on plan(s). Mechanical layouts not included.

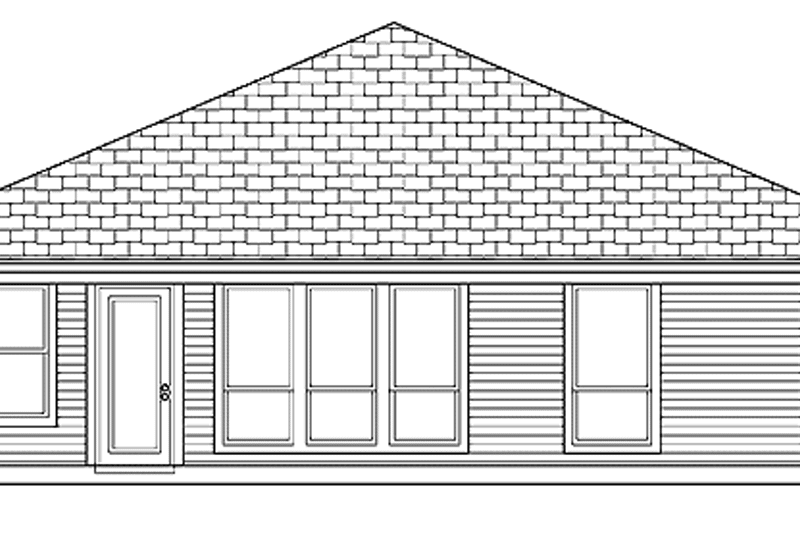

- ELEVATIONS: 1/4" scale rear elevation and 1/8" scale side elevations
- ROOF PLAN: 1/8" scale showing hips, peaks and valleys of roof. Information noted on Elevations page.
- STANDARD DETAIL PAGE: Shows typical building section (not necessarily specific to this plan), and building code notes.
