PLAN #70-1320

Key Specs


1448
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


You will feel right at home in this sensible ranch house. Upon entering the home you can see the kitchen and nook to the right with spacious windows letting in ample amounts of sunlight. The dining room opens inot the living room, both having vaulted ceilings, with the living room revealing an exquisite fireplace. Three bedrroms are the perfect size for your family, or for guests who wish to spend the night. The garage is large enough for two cars and offers an entrance into the house, so you don't have to face those harsh condidtions outside.

Floor Plans

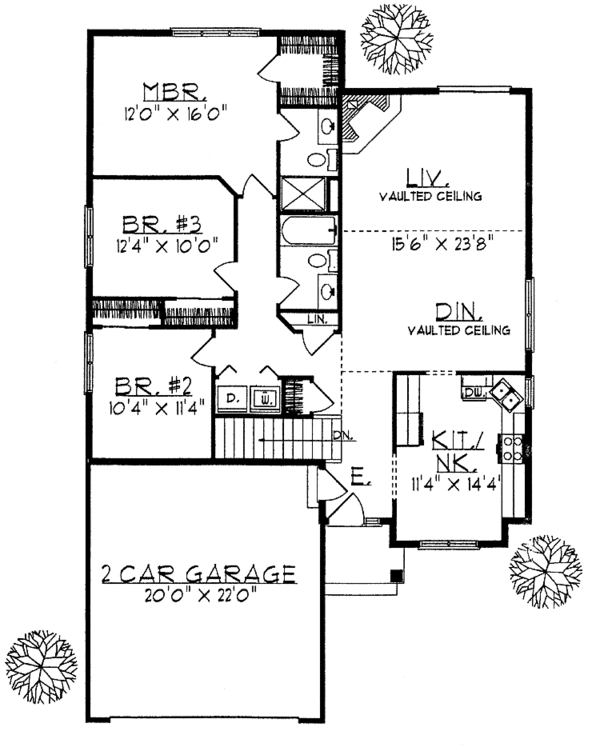

Floor Plan - Main Floor Plan
Ranch Floor Plan - Main Floor Plan Plan #70-1320

Full Specs & Features


Dimension
Depth : 59'
Height : 23'
Width : 38'
Area
First Floor: 1448 sq/ft
Bedroom Features
Main Floor Master Bedroom
Fireplace
Formal Dining Room
Additional Room Features
Main Floor Laundry
Outdoor Spaces
Covered Front Porch
Rooms

Bedroom 2:

117 sq/ft width 10' 4" x depth 11' 4"

Bedroom 3:

123 sq/ft width 12' 4" x depth 10'

Garage:

440 sq/ft width 20' x depth 22'

Kitchen:

162 sq/ft width 11' 4" x depth 14' 4"

Living Room:

366 sq/ft width 15' 6" x depth 23' 8"

Master Bedroom:

192 sq/ft width 12' x depth 16'

What's Included In This Plan Set

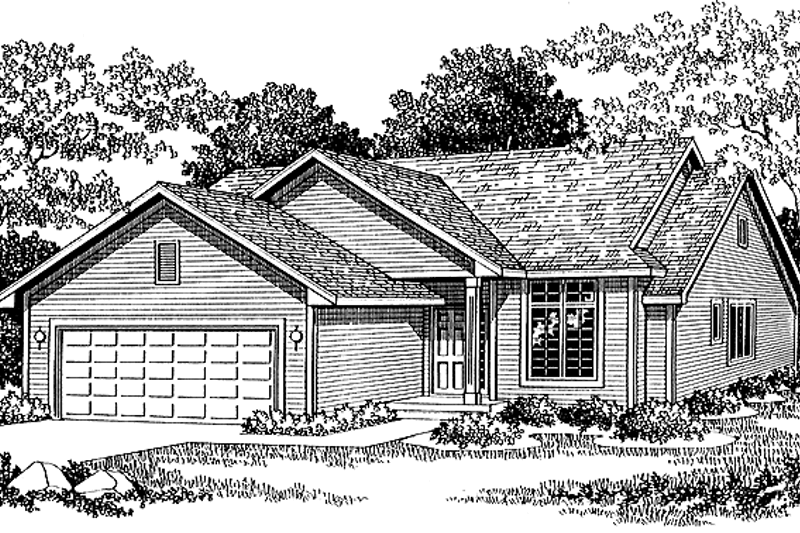

  • Cover sheet with front rendering
  • Foundation and floor plans at 1/4" = 1' scale
  • Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
  • Building sections and details as required to construct the individual design
  • Interior elevation of cabinets at 1/4" = 1' scale
  • Roof plans
  • Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
  • Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
  • Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
» See important information before purchasing.

Plan Set

5 Copy Set :
$729.00
5 printed plan sets mailed to you.
8 Copy Set :
$765.00
8 printed plan sets mailed to you.
PDF Set :
$913.50
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
$913.50
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
CAD Set :
$1440.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Basement:
$0.00
Ideal for level lot, lower level of home partially or fully underground.
Crawlspace:
$265.50
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab:
$265.50
Ideal for level lot, single layer concrete poured directly on grade.

Framing

Wood 2x6:
$0.00
Wood 2x6

Additional Options

Right-Reading Reverse :
265.50
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
45.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
36.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Home Furniture Planner :
17.10
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
90.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Audio Video Design :
90.00
Receive an overlay sheet with suggested placement of audio and video components.
