PLAN #1017-112

Key Specs

sq ft





This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

This Mediterranean house plan has a great layout, and is packed into a small footprint. A stucco exterior with double radius columns compliments the front elevation. Inside you will find a very open floor plan great for entertaining. The great room features a large, coffer ceiling and is opened to the kitchen and dining areas. The master suite has a large walk-in closet and a great view of the outdoor living areas. This house plan is perfect for a narrow lot.

Floor Plans

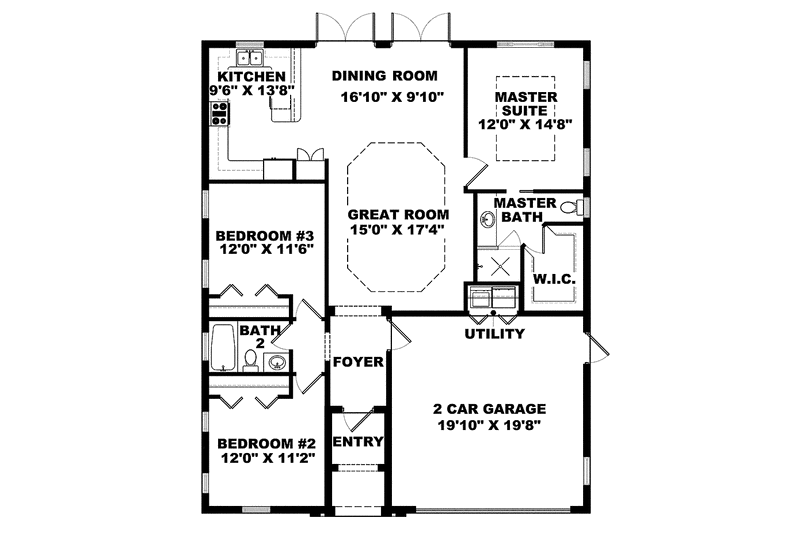

Floor Plan - Main Floor Plan
Mediterranean Floor Plan - Main Floor Plan Plan #1017-112

Full Specs & Features

Dimension Depth : 48' 8"
Height : 21' 11"
Width : 40'
Area Garage : 441 sq/ft
Main Floor : 1450 sq/ft
Bedroom Features Walk In Closet
Additional Room Features Great Room Living Room
Bedroom 2 134 sq/ft width 12' x depth 11' 2"
Bedroom 3 138 sq/ft width 12' x depth 11' 6"
Dining Room 165 sq/ft width 16' 10" x depth 9' 10"
Garage 390 sq/ft width 19' 10" x depth 19' 8"
Great Room 259 sq/ft width 15' x depth 17' 4"
Kitchen 129 sq/ft width 9' 6" x depth 13' 8"
Master Suite 176 sq/ft width 12' x depth 14' 8"

What's Included In This Plan Set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Plan Set
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
Ideal for level lot, single layer concrete poured directly on grade.
Additional Options
Right-Reading Reverse :
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Home Furniture Planner :
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
Receive an overlay sheet with suggested placement of lighting fixtures.
Audio Video Design :
Receive an overlay sheet with suggested placement of audio and video components.
