Key Specs


1498
sq ft

3
Beds

2
Baths

2
Floors

0
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


With its spectacular window wall and spacious deck, this vacation home is a perfect fit for a scenic setting. The living/dining room is dominated by the window wall that takes advantage of the view. A high vaulted ceiling draws the eye up, while the cozy fireplace creates warm atmosphere. A seated snack bar adds space for casual meals to the U-shaped kitchen, which also holds the laundry room. From here, head to the small front deck or over to the master bedroom, hall bathroom, and closets. Upstairs, two more bedrooms have use of another bathroom with a skylight and nearby linen storage. <P/><BR/>

Floor Plans

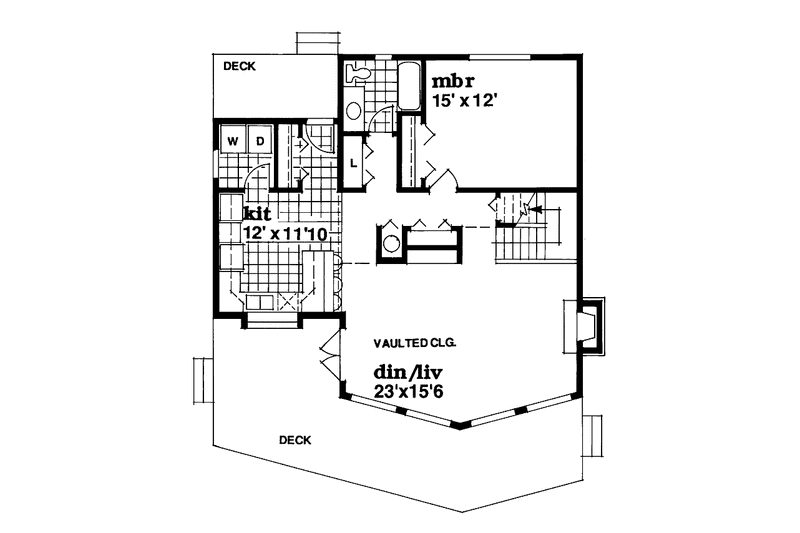

Floor Plan - Main Floor Plan
Floor Plan - Main Floor Plan Plan #47-881

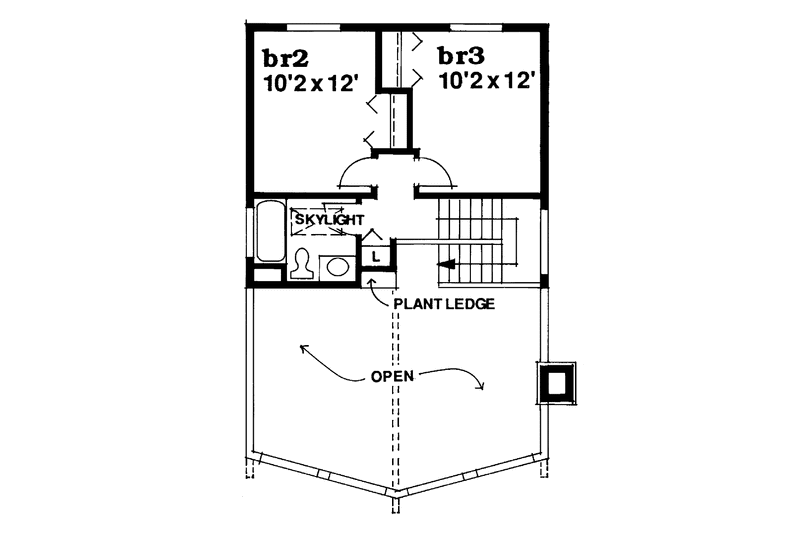

Floor Plan - Upper Floor Plan
Floor Plan - Upper Floor Plan Plan #47-881

Full Specs & Features


Dimension
Depth : 35' 8"
Height : 24'
Width : 36'
Area
First Floor: 1042 sq/ft height 8'
Second Floor: 456 sq/ft
Roof
Roof Framing : Combination Truss/Conventional
Primary Pitch : 12:12
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x6
Bedroom Features
Fireplace
Formal Dining Room
Kitchen Features
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Loft
Outdoor Spaces
Balcony
Deck
Rooms

3rd BR Closet:

8 sq/ft width 2' x depth 4' 1"

Basement Foundation:

1284 sq/ft width 36' x depth 35' 8"

Bedroom 2:

122 sq/ft width 10' 2" x depth 12'

Bedroom 2 Closet:

8 sq/ft width 2' x depth 4'

Bedroom 3:

122 sq/ft width 10' 2" x depth 12'

Bedroom 3 Closet:

8 sq/ft width 2' x depth 4'

Crawlspace Foundation:

1284 sq/ft width 36' x depth 35' 8"

Foyer:

20 sq/ft width 3' 4" x depth 6' 2"

Hall Bathroom:

53 sq/ft width 8' 8" x depth 6' 2"

Hall Closet:

11 sq/ft width 2' x depth 5' 10"

Kitchen:

132 sq/ft width 12' x depth 11'

Living Room:

356 sq/ft width 23' x depth 15' 6"

Master Bedroom:

180 sq/ft width 15' x depth 12'

Master Closet:

13 sq/ft width 2' x depth 6' 8"

Porch - Left:

270 sq/ft width 36' x depth 7' 6"

Porch - Rear:

74 sq/ft width 12' x depth 6' 2"

Powder Room:

53 sq/ft width 7' 6" x depth 7' 2"

Utility Room:

31 sq/ft width 5' 4" x depth 5' 10"

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

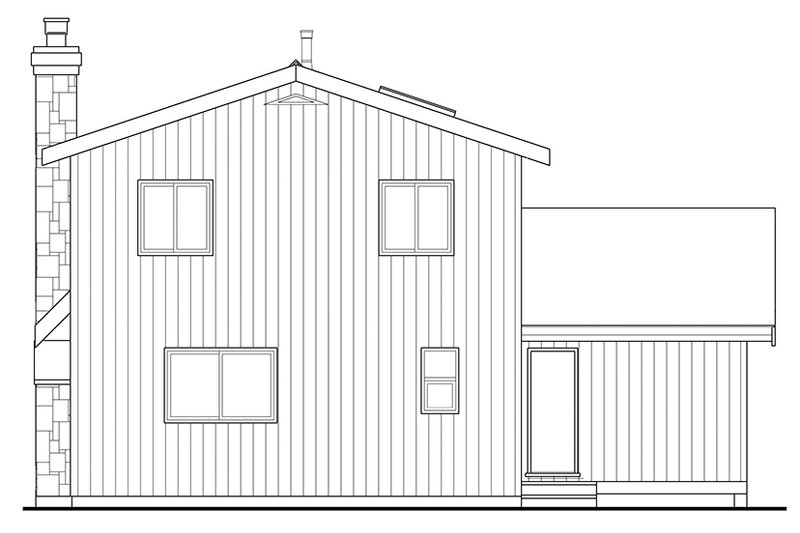

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
