PLAN #18-222

Key Specs

sq ft





This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

Spaciousness is evident throughout this floor plan due to the open
 concept. Two or more living areas in this home design allows for a more
 diversified use of these spaces. This home plan offers both informal and
 formal dining areas. The master bedroom is conveniently located on the
 main floor of this house plan. This floor plan has one or more
 additional bedrooms on the main floor, exclusive of the master. Main
 living areas are strategically located making this home plan suited for
 a view lot. The orientation of the entrances of this home plan make it
 suited for a corner lot. Unfinished Lower Floor - 939 Sq. Ft.

Floor Plans

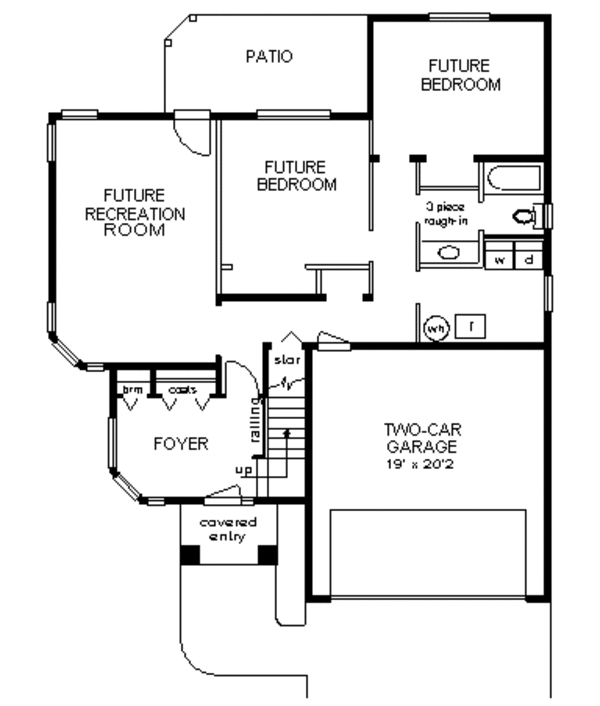

Floor Plan - Lower Floor Plan
Mediterranean Floor Plan - Lower Floor Plan Plan #18-222

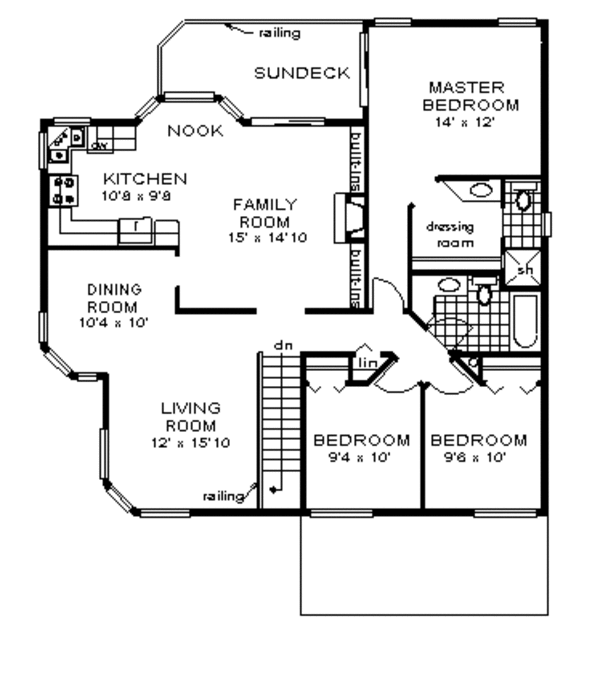

Floor Plan - Main Floor Plan
Mediterranean Floor Plan - Main Floor Plan Plan #18-222

Full Specs & Features

Depth : 48'
Height : 24' 8"
Width : 41'
First Floor: 1385 sq/ft
Main Ceiling : 8'
Primary Pitch : 6:12
Exterior Wall Framing
Framing : 2"x6"
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Kitchen Features
Breakfast Nook
Additional Room Features
Family Room Keeping Room
Unfinished Future Space
Garage Features
Garage Under
Lot Characteristics
Suited For Narrow Lot
Suited For Sloping Lot
Suited For View Lot
Outdoor Spaces
Covered Rear Porch

What's Included In This Plan Set

All plans are drawn at ¼” scale or larger and include :
  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

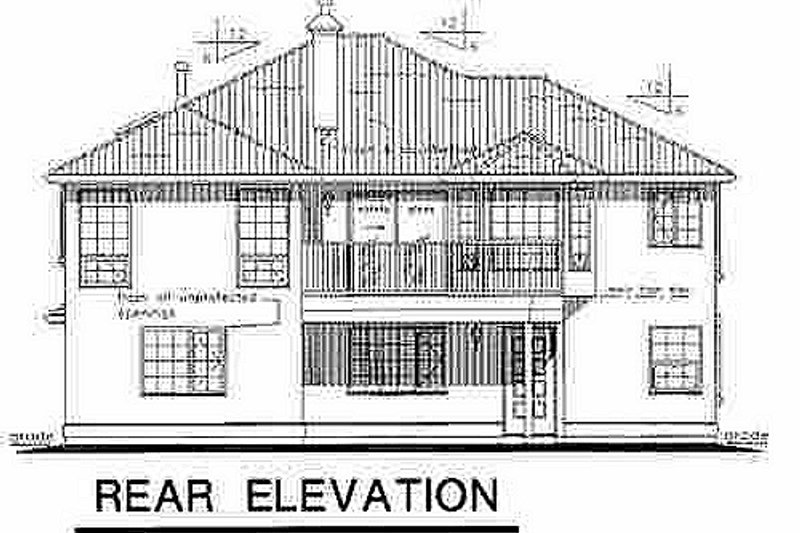

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
