PLAN 70-143
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
This traditional design floor plan is 1537 sq ft and has 2 bedrooms and 2 bathrooms.
Floor Plans

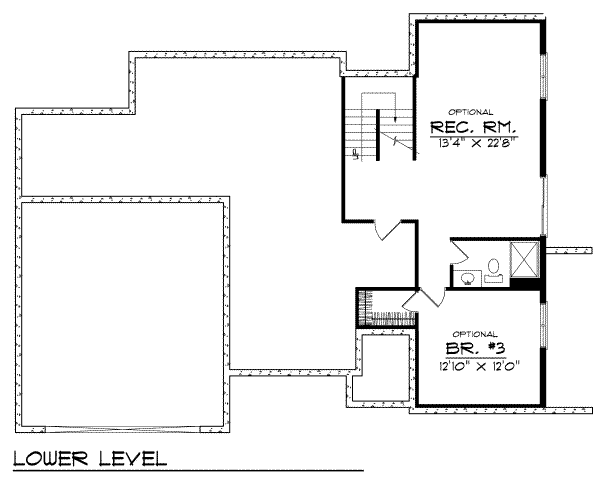

Floor Plan - Lower Floor

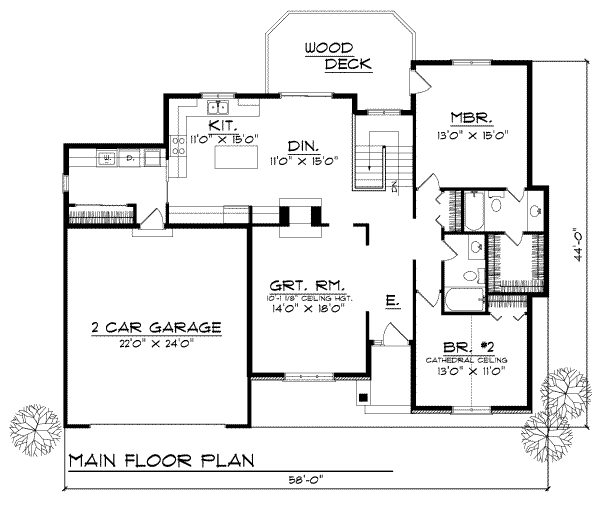

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 44'
Height : 24'
Width : 58'
Area
First Floor: 1537 sq/ft height 8'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 9:12
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : Wood - 2x6
Bedroom Features
Walk In Closet
Kitchen Features
Kitchen Island
Additional Room Features
Unfinished Future Space
Lot Characteristics
Suited For Sloping Lot
Suited For View Lot
More
Empty Nester
Rooms
Bedroom 2:
143 sq/ft width 13' x depth 11'
Dining Room:
165 sq/ft width 11' x depth 15'
Garage:
528 sq/ft width 22' x depth 24'
Gathering Room:
252 sq/ft width 14' x depth 18'
Kitchen:
165 sq/ft width 11' x depth 15'
Master Bedroom:
195 sq/ft width 13' x depth 15'
What's Included In This Plan Set
Plans are typically drawn to ¼” scale and include:
» See important
information before purchasing.
- Cover Sheet: Cover sheet with front rendering
- Foundation Plan(s): Foundation plans at 1/4" = 1' scale
- Floor Plan(s): Floor plans at 1/4" = 1' scale
- Exterior Elevations: Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
- Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
- Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
- Building Section(s): Building sections and details as required to construct the individual design
- Electrical Plan(s): Schematic electrical plans with suggested switch, outlet, and light fixture locations
- Kitchen Cabinet Elevation(s): Interior elevation of cabinets at 1/4" = 1' scale
- Construction Notes / Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
- Specification(s): General specification design notes
Questions? Call 1-800-447-0027
Plan Set
5 Copy Set:
$868.70
$868.70
5 printed plan sets mailed to you.
8 Copy Set:
$906.95
$906.95
8 printed plan sets mailed to you.
PDF Set:
$1084.60
$1084.60
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set:
$1084.60
$1084.60
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
CAD Set:
$1714.45
$1714.45
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation
Daylight Basement:
$0.00
$0.00
Ideal for sloping lot, lower level of home partially underground.
Crawlspace:
$335.75
$335.75
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab:
$335.75
$335.75
Ideal for level lot, single layer concrete poured directly on grade.
Additional Options
Right-Reading Reverse:
$335.75
$335.75
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets:
$68.00
$68.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design:
$140.25
$140.25
Receive an overlay sheet with suggested placement of audio and video components.
Comprehensive Material List:
$250.75
$250.75
A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.
Construction Guide:
$33.15
$33.15
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$140.25
$140.25
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets:
$63.75
$63.75
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
