Plan Description

This cozy cottage offers all of the comforts of a first home in a one-story, efficient design. The bedrooms sit to either side of the plan, with the master suite on the left, and two additional family bedrooms on the right. The great room is at the heart of the home, outfitted with a corner fireplace. The U-shaped kitchen with serving bar offers added convenience. The breakfast nook enjoys a pleasant view of the rear covered patio. A two-car garage completes this plan.

Floor Plans

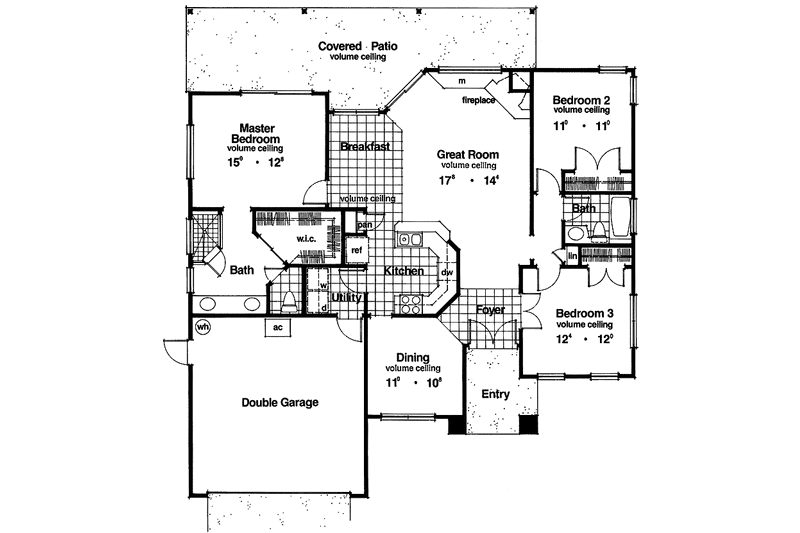

Floor Plan - Main Floor Plan
Mediterranean Floor Plan - Main Floor Plan Plan #417-625

Full Specs & Features

Depth : 55'
Height : 24'
Width : 50'
First Floor: 1550 sq/ft height 10'
Bedroom Features
Split Bedrooms
Walk In Closet
Formal Dining Room
Formal Living Room / Parlor
Additional Room Features
Great Room Living Room
Outdoor Spaces
Covered Rear Porch

Bedroom 2:

121 sq/ft width 11' x depth 11'

Bedroom 3:

147 sq/ft width 12' 4" x depth 12'

Dining Room:

117 sq/ft width 11' x depth 10' 8"


386 sq/ft width 19' 4" x depth 20'

Gathering Room:

253 sq/ft width 17' 8" x depth 14' 4"


125 sq/ft width 12' 6" x depth 10'

Master Bathroom:

99 sq/ft width 8' 4" x depth 12'

Master Bedroom:

190 sq/ft width 15' x depth 12' 8"

Master Closet:

63 sq/ft width 10' x depth 6' 4"

Utility Room:

40 sq/ft width 6' 8" x depth 6'

What's Included In This Plan Set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
