This compact Colonial plan offers a 3 bedrooms, and 2 1/2 baths along with some interesting options for expansion. The first floor has a formal dining room, formal living area and a family room. The living and dining areas can be combined, however, to create a great room with central fireplace making the first floor a huge open living space. Upstairs, the turned stair and hall overlook a two-story foyer below, and a bonus area over the garage can become a fourth bedroom.

Floor Plans

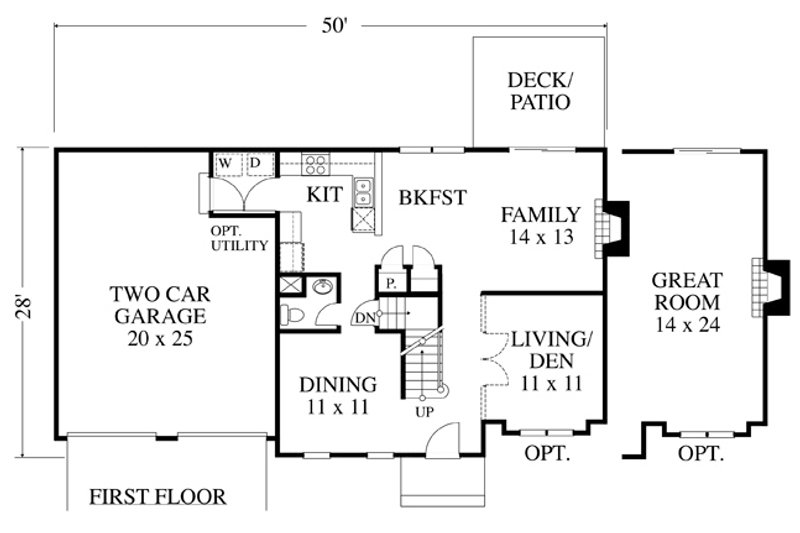

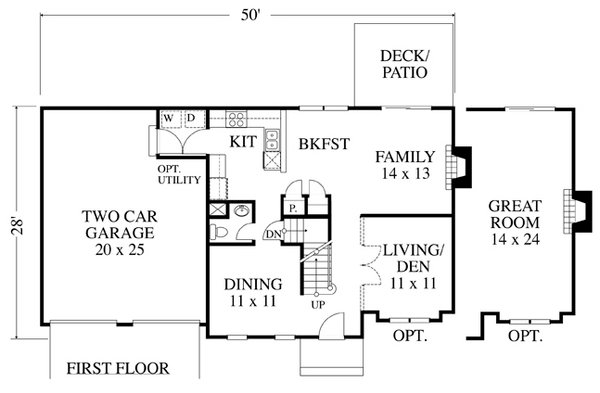

Floor Plan - Main Floor Plan

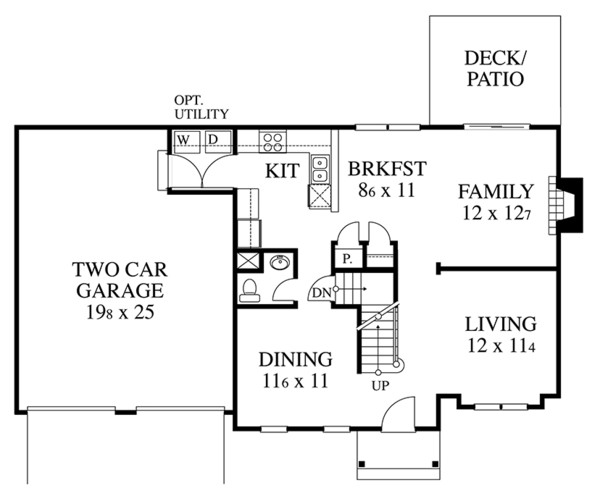

Colonial Floor Plan - Main Floor Plan Plan #1053-66

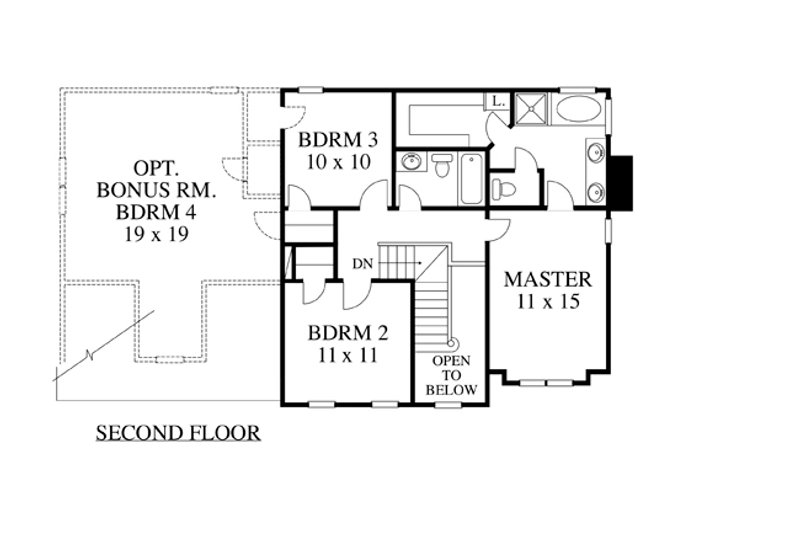

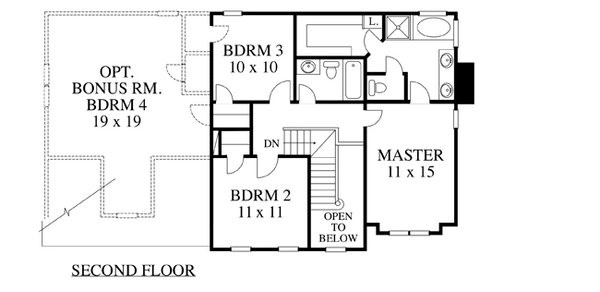

Floor Plan - Upper Floor Plan

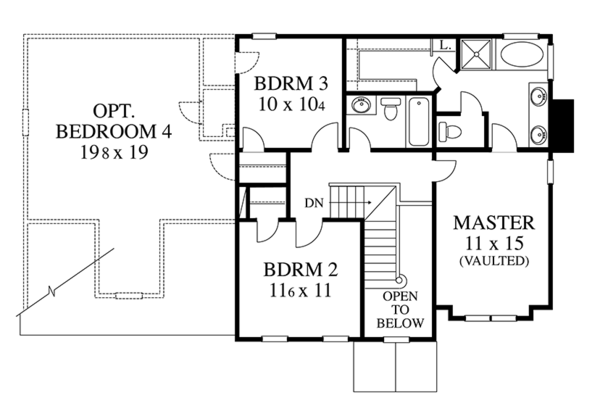

Colonial Floor Plan - Upper Floor Plan Plan #1053-66

Full Specs & Features

Dimension Depth : 28'
Height : 28' 6"
Width : 50'
Area Bonus : 386 sq/ft
Garage : 488 sq/ft
Lower Floor : 730 sq/ft
Main Floor : 817 sq/ft
Upper Floor : 746 sq/ft
Bedroom Features Upstairs Master Bedrooms
Walk In Closet
Formal Dining Room
Formal Living Room / Parlor
Kitchen Features Breakfast Nook
Additional Room Features Family Room Keeping Room
Main Floor Laundry
Open Floor Plan
Vaulted / Cathedral Ceilings
Garage Features Front Entry Garage
Outdoor Spaces Courtyard
Covered Front Porch
Bedroom 2 127 sq/ft width 11' 5" x depth 11'
Bedroom 3 103 sq/ft width 10' x depth 10' 4"
Breakfast 94 sq/ft width 8' 6" x depth 11'
Covered Front Porch 24 sq/ft width 0" x depth 0"
Dining Room 127 sq/ft width 11' 6" x depth 11'
Family Room 151 sq/ft width 12' x depth 12' 7"
Garage 488 sq/ft width 19' 8" x depth 25'
Living Room 136 sq/ft width 12' x depth 11' 4"
Master Bedroom 165 sq/ft width 11' x depth 15'
Optional Bedroom 4 386 sq/ft width 19' x depth 19' 8"
Optional Laundry Room 42 sq/ft width 0" x depth 0"
