Call us at 1-800-447-0027
ON SALE!

Photographs may show modified designs.

Save

PLAN 18-223

Select Plan Set Options

What's included?
Additional Construction Sets
$57.00/each
Mirror Reversed Sets
$57.00
Subtotal
NOW $877.80
You save $46.20
(5% savings)
Sale ends soon!
Also order by phone: 1-800-447-0027
Cost-to-Build Estimates
How much will this cost to build?
This report will provide you cost estimates based on location and building materials.
Questions?
Questions?

We do our best to get back within 24 - 48 business hours.
Need an answer fast? Call us now.
Hours  Mon-Fri, 9 am - 8:30 pm (EST)

PLAN 18-223

Key Specs


1577
sq ft

3
Beds

2
Baths

2
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

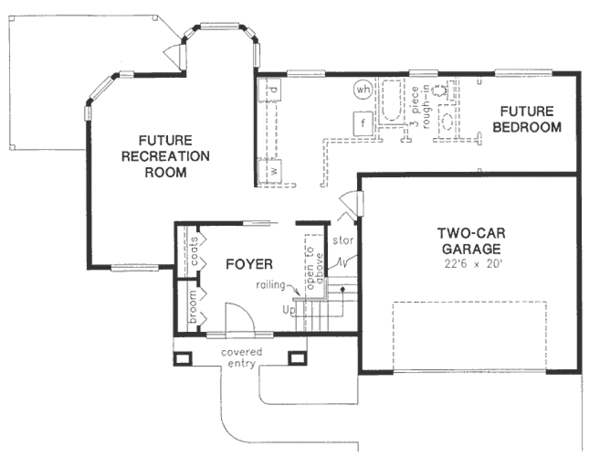

Floor Plan - Lower Floor Plan
Reverse
European Floor Plan - Lower Floor Plan Plan #18-223

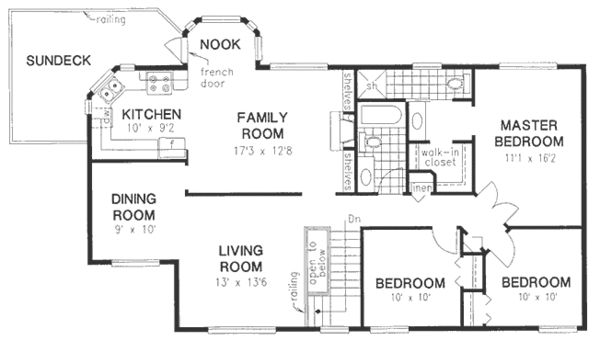

Floor Plan - Main Floor Plan
Reverse
European Floor Plan - Main Floor Plan Plan #18-223

Full Specs & Features


Dimension
Depth : 36' 6"
Height : 23' 8"
Width : 51' 10"
Area
First Floor: 1396 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 8'
Roof
Primary Pitch : 6:12
Roof Framing : Truss
Roof Type : Asphalt
Exterior Wall Framing
Framing : 2"x6"
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Breakfast Nook
Additional Room Features
Family Room Keeping Room
Unfinished Future Space
Garage Features
Garage Under
Lot Characteristics
Suited For View Lot
Outdoor Spaces
Covered Rear Porch

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :
  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
» See important information before purchasing.

Plan Set

PDF Set :
$877.80
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set :
$987.53
5 printed plan sets mailed to you.
8 Copy Set :
$1097.25
8 printed plan sets mailed to you.
Reproducible Set :
$1097.25
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
CAD Set :
$1755.60
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Single Set :
$768.08
One printed set for bidding purposes only. Not a legal building set for construction.

Foundation

Basement:
$0.00
Ideal for level lot, lower level of home partially or fully underground.
Daylight Basement:
$0.00
Ideal for sloping lot, lower level of home partially underground.

Additional Options

Additional Construction Sets :
$57.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Additional Use License :
$399.00
Additional Use License.
Audio Video Design :
$95.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
$37.05
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Home Furniture Planner :
$18.05
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
$95.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Material List :
$80.75
A list of building supplies needed to construct the infrastructure of your new house.
Mirror Reversed Sets :
$57.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Right-Reading Reverse :
$166.25
Choose this option to reverse your plans and to have the text and dimensions readable.
Unlimited Use License :
$798.00
Unlimited Use License.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
