Key Specs


1578
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


With a graceful pediment above and a sturdy, columned veranda below, this relaxing home was made for country living. The veranda wraps slightly around on two sides of the facade and permits access to a central foyer with a den (or third bedroom) on the right and the country kitchen on the left. Look for an island work space in the kitchen and a plant ledge over the entry between the great room and the kitchen. A fireplace warms the great room and is flanked by windows overlooking the rear deck. A casually defined dining space has double-door access to this same deck.<P/><BR/>

Floor Plans

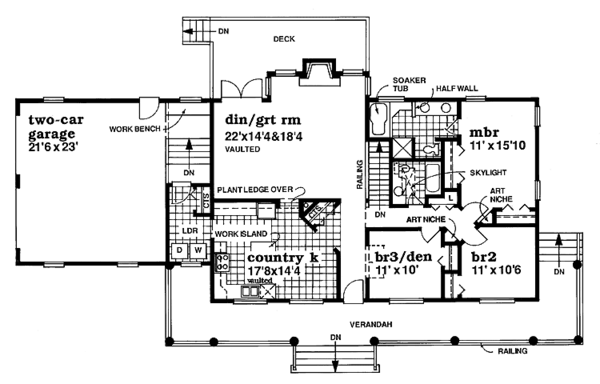

Floor Plan - Main Floor Plan
Ranch Floor Plan - Main Floor Plan Plan #47-890

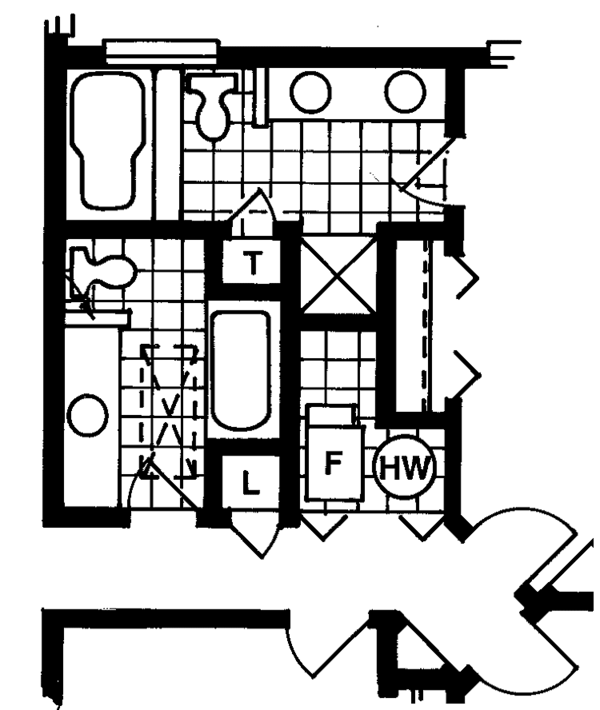

Floor Plan - Other Floor Plan
Ranch Floor Plan - Other Floor Plan Plan #47-890

Full Specs & Features


Dimension
Depth : 40' 6"
Height : 24'
Width : 83'
Area
First Floor: 1578 sq/ft height 9'
Roof
Roof Framing : Combination Truss/Conventional
Primary Pitch : 8:12
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x6
Bedroom Features
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Kitchen Features
Kitchen Island
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Garage Features
Side Entry Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Deck
Rooms

3rd BR Closet:

7 sq/ft width 3' 7" x depth 2'

Basement Foundation:

1853 sq/ft width 34' x depth 54' 6"

Bedroom 2:

115 sq/ft width 10' 6" x depth 11'

Bedroom 2 Closet:

17 sq/ft width 3" x depth 70' 2"

Bedroom 3:

110 sq/ft width 10' x depth 11'

Bedroom 3 Closet:

17 sq/ft width 3" x depth 70' 2"

Crawlspace Foundation:

1853 sq/ft width 34' x depth 54' 6"

Deck:

184 sq/ft width 8' x depth 23'

Garage:

494 sq/ft width 23' x depth 21' 6"

Hall:

40 sq/ft width 10' x depth 4'

Hall Bathroom:

48 sq/ft width 6' 6" x depth 7' 6"

Hall Closet:

8 sq/ft width 4' x depth 2'

Kitchen:

251 sq/ft width 14' 3" x depth 17' 8"

Master Bathroom:

113 sq/ft width 8' 6" x depth 13' 4"

Master Bedroom:

174 sq/ft width 15' 10" x depth 11'

Master Closet:

11 sq/ft width 2' x depth 5' 8"

Porch - Front:

396 sq/ft width 6' 6" x depth 61'

Utility Room:

66 sq/ft width 11' x depth 6'

Walk-In Closet:

14 sq/ft width 7' x depth 2'

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
