Enjoy resort-style living in this striking Sun Country home. Guests will always feel welcome when entertained in the formal living and dining areas, but the eat-in country kitchen overlooking the family room will be the center of attention. Casual living will be enjoyed in the large family room and out on the patio with the help of an optional summer kitchen and view of the fairway. Built-in shelves and an optional media center provide decorating options. The master suite features a volume ceiling and a spacious master bath.

Floor Plans

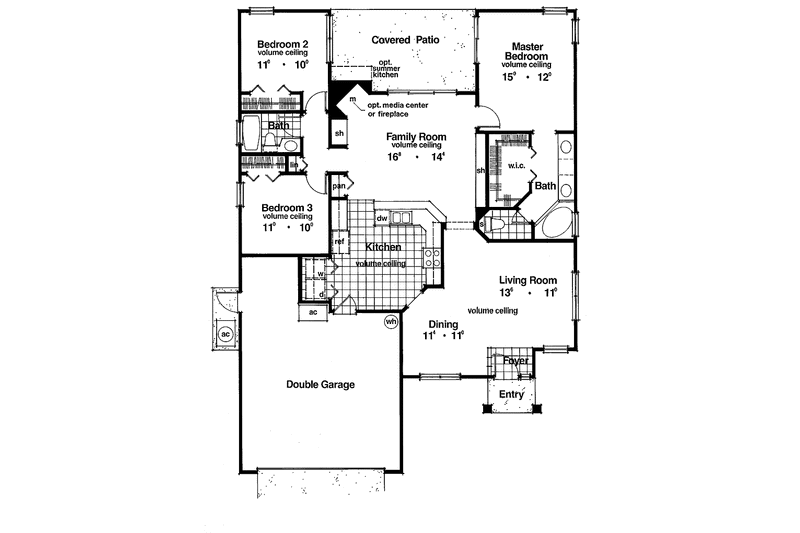

Floor Plan - Main Floor Plan
Mediterranean Floor Plan - Main Floor Plan Plan #417-480

Full Specs & Features

Depth : 59'
Height : 19' 2"
Width : 43'
First Floor: 1550 sq/ft
Primary Pitch : 6:12
Roof Framing : Truss
Roof Type : Slate
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : Block
Bedroom Features
Formal Dining Room
Formal Living Room / Parlor
Split Bedrooms
Additional Room Features
Family Room Keeping Room
Master Sitting Area
Media Room
Outdoor Spaces
Covered Front Porch
Covered Rear Porch

3rd BR Closet:

6 sq/ft width 3' 5" x depth 2'

Bathroom 2:

35 sq/ft width 7' 2" x depth 5'

Bedroom 2:

110 sq/ft width 11' x depth 10'

Bedroom 2 Closet:

14 sq/ft width 7' 2" x depth 2'

Bedroom 3:

110 sq/ft width 11' x depth 10'

Bedroom 3 Closet:

14 sq/ft width 7' 2" x depth 2'

Dining Room:

124 sq/ft width 11' 4" x depth 11'


386 sq/ft width 19' 8" x depth 19' 8"

Gathering Room:

234 sq/ft width 16' 4" x depth 14' 4"


135 sq/ft width 14' 6" x depth 9' 4"

Living Room:

148 sq/ft width 13' 6" x depth 11'

Master Bathroom:

106 sq/ft width 11' 11" x depth 8' 11"

Master Bedroom:

180 sq/ft width 15' x depth 12'

Master Closet:

38 sq/ft width 5' 8" x depth 6' 10"

Porch - Rear:

192 sq/ft width 18' 4" x depth 10' 6"

What's Included In This Plan Set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
