PLAN 569-10

Key Specs

1595
sq ft

3
Beds

2.5
Baths

2
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description

This thoughtfully designed home was created to maximize livability and minimize the eco-footpring. This value engineered narrow lot home plan is where the real people can celebrate life with a style all their own. Unique, vibrant and urban modern home filled with real heart and soul and families too.

Floor Plans

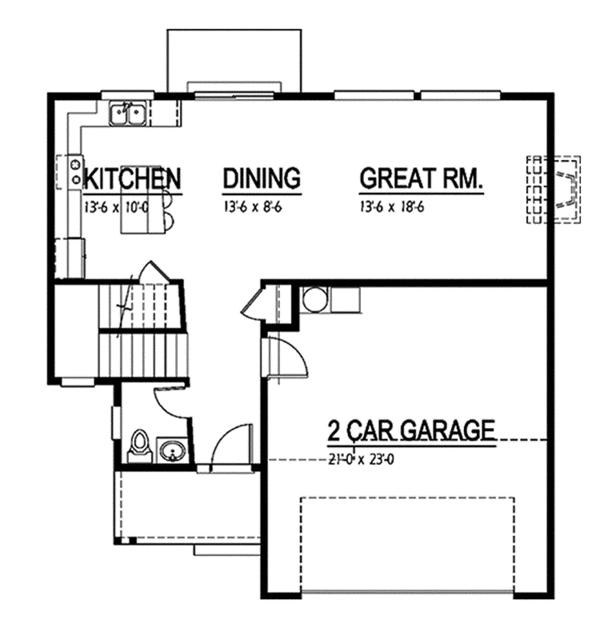

Floor Plan - Main Floor Plan

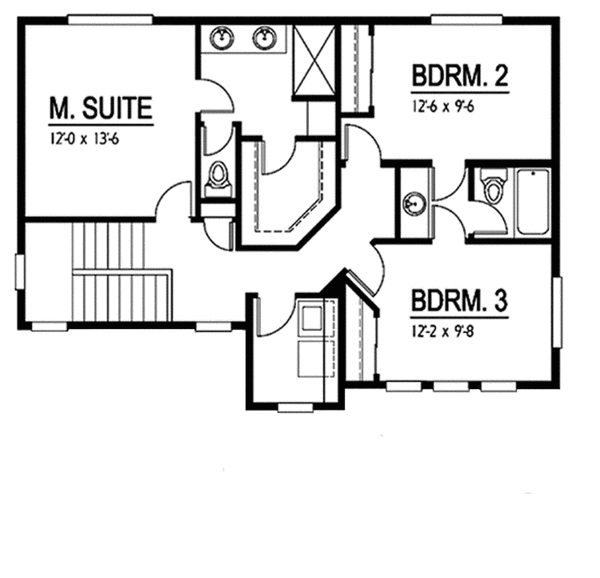

Floor Plan - Upper Floor Plan

Full Specs & Features

Dimension

Depth : 38'
Height : 26' 8"
Width : 38'

Area

Bonus: 198 sq/ft height 9'
First Floor: 736 sq/ft height 9'
Garage: 510 sq/ft height 9'
Porch: 24 sq/ft
Second Floor: 859 sq/ft height 9'

*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 4:12
Roof Framing : Truss
Roof Type : Composition

Exterior Wall Framing

Exterior Wall Finish : Siding
Framing : Wood - 2x6

Bedroom Features

Fireplace
Split Bedrooms
Walk In Closet

Kitchen Features

Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry

Additional Room Features

Open Floor Plan
Upstairs Laundry

Outdoor Spaces

Courtyard

Rooms

Bedroom 2:

118 sq/ft width 12' 6" x depth 9' 6"

Bedroom 3:

117 sq/ft width 12' 2" x depth 9' 8"

Dining Room:

114 sq/ft width 13' 6" x depth 8' 6"

Garage:

483 sq/ft width 21' x depth 23'

Great Room:

249 sq/ft width 13' 6" x depth 18' 6"

Kitchen:

135 sq/ft width 13' 6" x depth 10'

Master Suite:

162 sq/ft width 12' x depth 13' 6"

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
