PLAN 1058-53
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 54'
Height : 17' 4"
Width : 40'
Area
First Floor: 1612 sq/ft height 8' 8"
Garage: 402 sq/ft height 8' 8"
Roof
Primary Pitch : 5:12
Roof Framing : Truss
Roof Type : Clay Tile
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : Block
Bedroom Features
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Kitchen Island
Additional Room Features
Main Floor Laundry
Mud Room
Garage Features
Front Entry Garage
Outdoor Spaces
Courtyard
Covered Front Porch
Rooms
Bedroom 2:
width 11' 10" x depth 11' 2"
Bedroom 3:
width 11' 10" x depth 11' 2"
Covered Entry:
44 sq/ft
Dining Area:
width 12' x depth 11'
Garage:
402 sq/ft width 18' 8" x depth 19' 8"
Kitchen:
width 11' 10" x depth 15'
Living Room:
width 14' x depth 18'
Owner's Suite:
width 12' x depth 15'
Rear Patio:
width 10' x depth 8'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

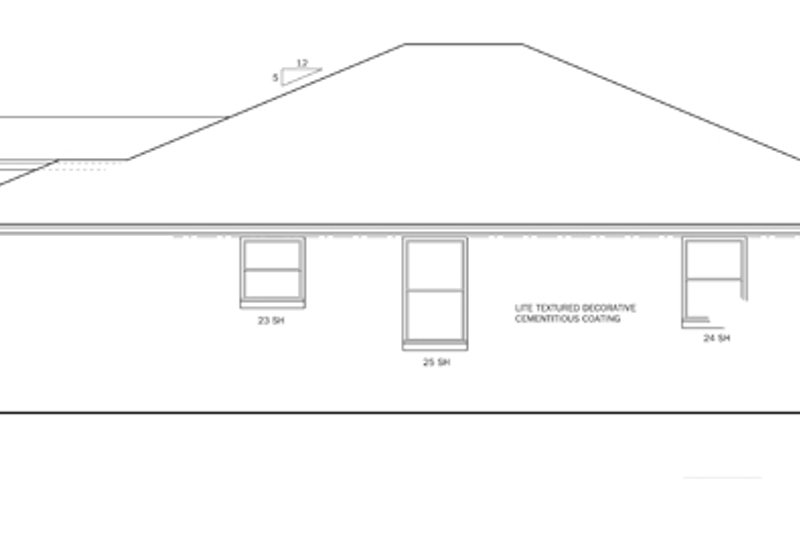

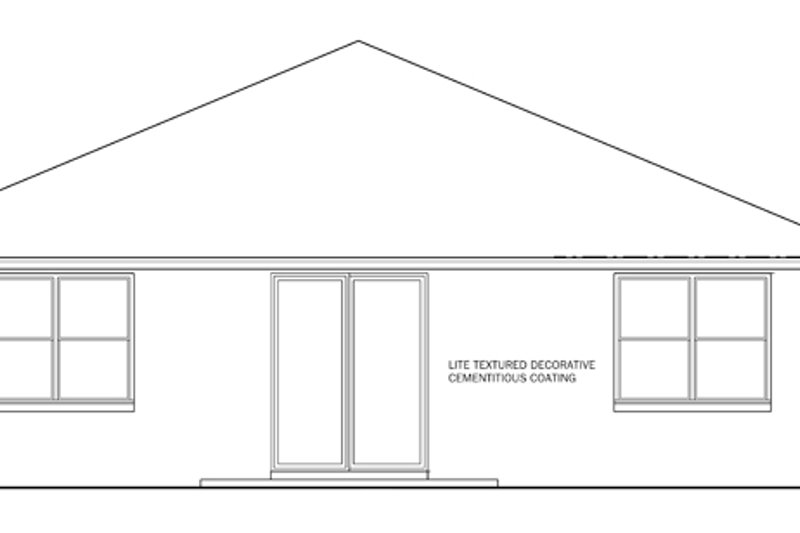

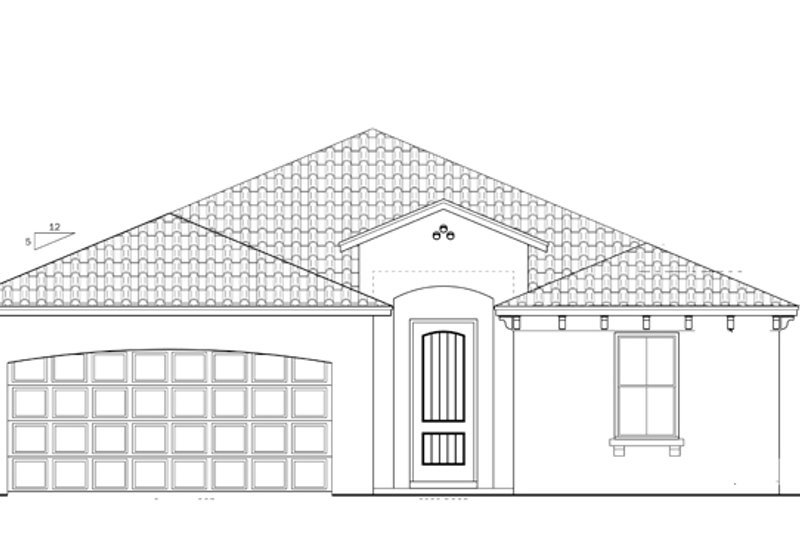

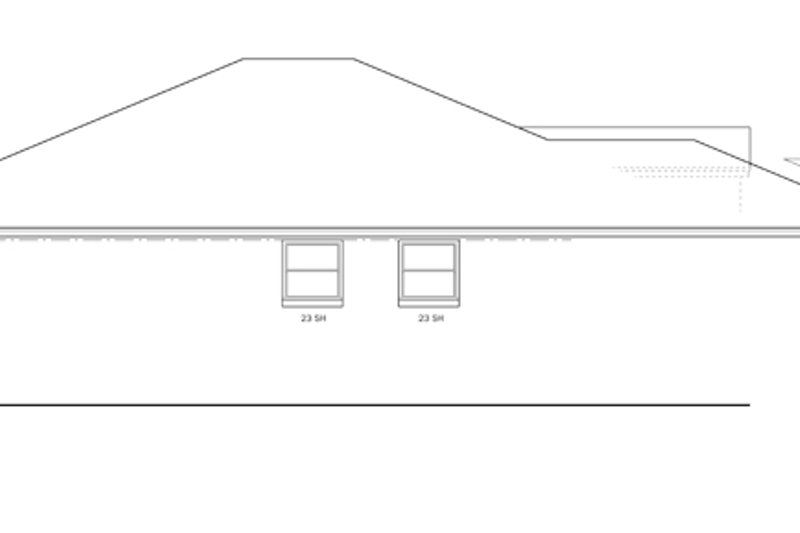

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

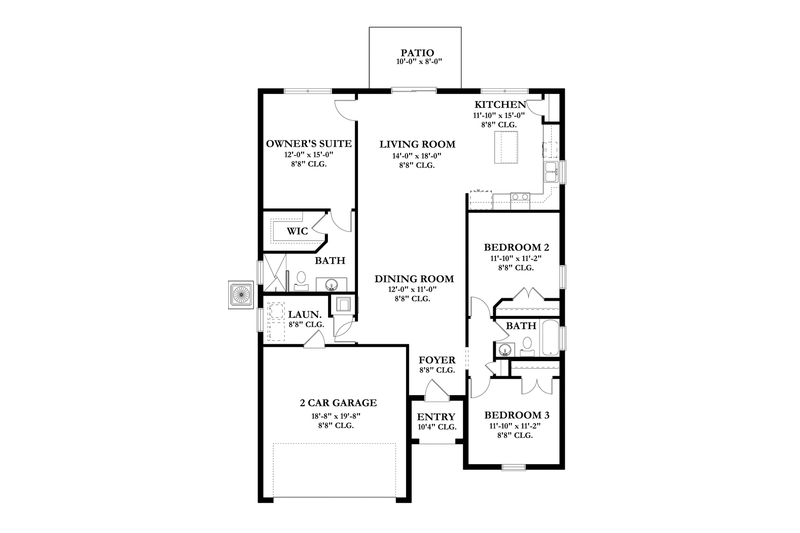

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$1900.00
$2300.00
$2300.00
Foundation
$0.00
Framing
$0.00
Additional Options
$300.00
$50.00
$1150.00
$100.00
$39.00
$100.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
