PLAN #70-1043

Key Specs


1612
sq ft

3
Beds

2.5
Baths

2
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


Stone details, shingle siding and graceful columns adorn this traditional two-story home, making it a great seller in today’s market. The main floor provides the living area of the home where the kitchen, dining and great rooms flow together perfectly to create a space that’s perfect for entertaining. A covered porch off the back of the home provides additional living space that overlooks the back yard. Upstairs you’ll find a spacious master with on-suite bath, two additional bedrooms, a full bath, and the laundry room. A two-stall garage with extra storage completes the home.

Floor Plans


Floor Plan - Main Floor Plan

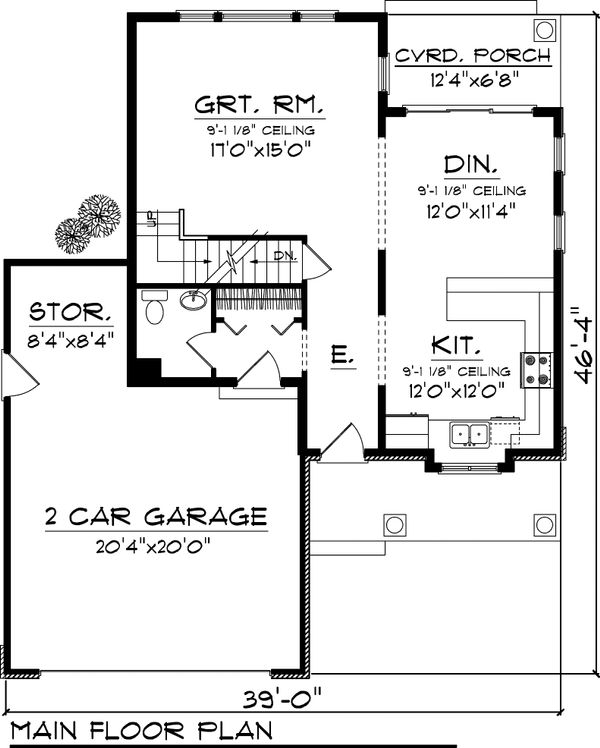

Craftsman Floor Plan - Main Floor Plan Plan #70-1043
Floor Plan - Upper Floor Plan

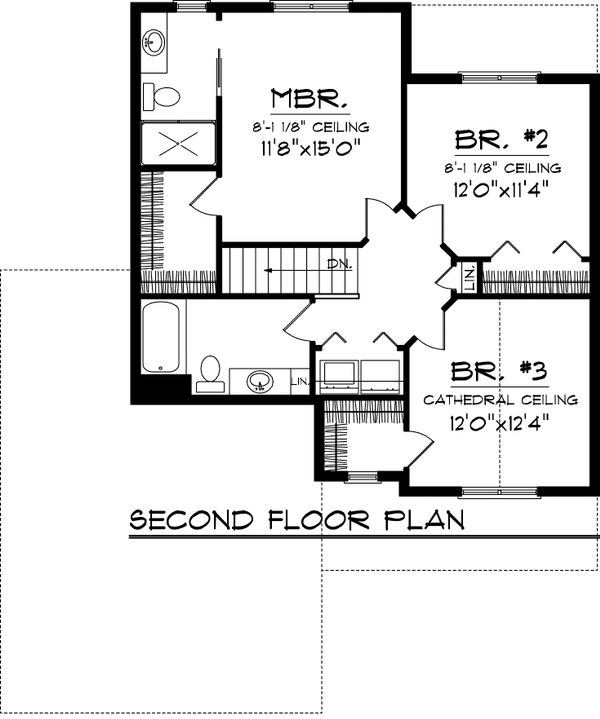

Craftsman Floor Plan - Upper Floor Plan Plan #70-1043

Full Specs & Features


Dimension
Depth : 46' 4"
Height : 30' 3"
Width : 39'
Area
First Floor: 804 sq/ft height 9'
Garage: 502 sq/ft
Second Floor: 808 sq/ft
Ceiling
Ceiling Details : bedroom #3 has a Cathedral ceiling
Main Ceiling : 9'
Upper Ceiling Ft : 8'
Roof
Roof Framing : Truss
Roof Load : 47
Primary Pitch : 8:12
Secondary Pitch : 4:12
Exterior Wall Framing
Insulation : 19
Exterior Wall Finish : Siding, Shake, Stone
Framing : 2 x 6
Bedroom Features
Upstairs Bedrooms
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Eating Bar
Breakfast Nook
Additional Room Features
Great Room Living Room
Storage Area
Upstairs Laundry
Garage Features
Front Entry Garage
Lot Characteristics
Suited For Narrow Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms

Basement:

width 39' x depth 46' 4"

Bathroom 2:

width 11' x depth 6' 4"

Bedroom 2:

width 12' x depth 11' 4"

Bedroom 2 Closet:

width 7' x depth 2' 1"

Bedroom 3:

width 12' x depth 12' 4"

Bedroom 3 Closet:

width 5' 3" x depth 4' 8"

Dining Room:

width 12' x depth 11' 4"

Foyer:

width 5' x depth 15'

Garage:

502 sq/ft width 20' 4" x depth 20'

Garage Storage:

width 8' 4" x depth 8' 4"

Great Room:

width 17' x depth 15'

Half Bath:

width 5' 4" x depth 6' 4"

Hall:

width 6' x depth 3' 11"

Kitchen:

width 12' x depth 12'

Laundry:

width 5' 10" x depth 2' 11"

Master Bath:

width 5' x depth 10'

Master Bedroom:

width 11' 8" x depth 15'

Master Walk In Closet:

width 5' x depth 8'

Porch Front:

width 18' x depth 6'

Porch Rear:

width 12' 4" x depth 6' 8"

What's Included In This Plan Set


  • Cover sheet with front rendering
  • Foundation and floor plans at 1/4" = 1' scale
  • Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
  • Building sections and details as required to construct the individual design
  • Interior elevation of cabinets at 1/4" = 1' scale
  • Roof plans
  • Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
  • Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
  • Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
