PLAN #47-907

Key Specs


1634
sq ft

3
Beds

2
Baths

2
Floors

0
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


Looking for a home that combines the charm of a farmhouse with a modern open layout? This plan offers all this and more, giving you several options to create your perfect floor plan by adding, if you wish, a loft upstairs and powder bath on the first floor. The open plan makes it easy to get around the living areas, all of them with vaulted ceilings: the fireplace-warmed great room, the dining area, and the kitchen. An angled snack bar is a convenient place to serve up everything from a quick breakfast to hors d'oeuvres during a party. The spacious master bedroom is located on the first floor for privacy and features a walk-in closet, windowed sitting nook, and private bathroom with a skylight (an alternate layout condenses this space to make room for a powder bath). Two more bedrooms rest upstairs, and can be joined by a loft if you choose to enclose the space above the kitchen.<P/><BR/><P/><BR/>

Floor Plans

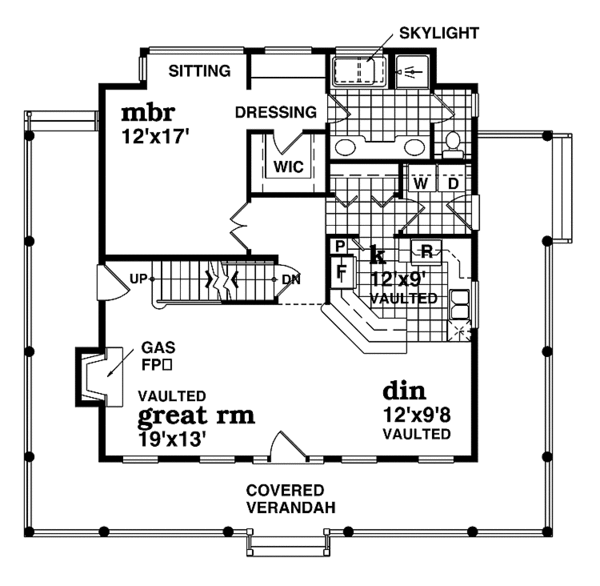

Floor Plan - Main Floor Plan
Victorian Floor Plan - Main Floor Plan Plan #47-907

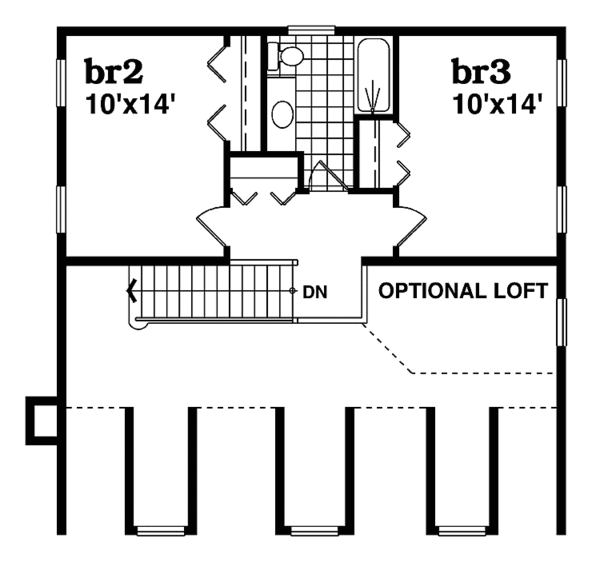

Floor Plan - Upper Floor Plan
Victorian Floor Plan - Upper Floor Plan Plan #47-907

Full Specs & Features


Dimension
Depth : 41' 4"
Height : 29'
Width : 44' 8"
Area
Bonus: 82 sq/ft
First Floor: 1099 sq/ft height 8'
Second Floor: 535 sq/ft
Bedroom Features
Split Bedrooms
Walk In Closet
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Kitchen Features
Kitchenette Wet Bar
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
Great Room Living Room
Master Sitting Area
Outdoor Spaces
Covered Front Porch
Loft Balcony
Wrap Around Porch
Rooms

3rd BR Closet:

9 sq/ft width 4' 4" x depth 2' 2"

Basement Foundation:

1120 sq/ft width 35' x depth 32'

Bedroom 2:

140 sq/ft width 14' x depth 10'

Bedroom 2 Closet:

14 sq/ft width 7' 4" x depth 2'

Bedroom 3:

140 sq/ft width 14' x depth 10'

Bedroom 3 Closet:

14 sq/ft width 7' 4" x depth 2'

Crawlspace Foundation:

1120 sq/ft width 35' x depth 32'

Dining Room:

114 sq/ft width 9' 6" x depth 12'

Gathering Room:

243 sq/ft width 12' 10" x depth 19'

Hall Bathroom:

77 sq/ft width 9' 8" x depth 8'

Hall Closet:

14 sq/ft width 2' 6" x depth 5' 10"

Kitchen:

108 sq/ft width 9' x depth 12'

Master Bathroom:

107 sq/ft width 12' x depth 8' 11"

Master Bedroom:

204 sq/ft width 17' x depth 12'

Master Closet:

31 sq/ft width 5' x depth 6' 4"

Porch - Front:

282 sq/ft width 6' 4" x depth 44' 8"

Porch - Left:

177 sq/ft width 28' x depth 6' 4"

Porch - Right:

177 sq/ft width 28' x depth 6' 4"

Utility Room:

34 sq/ft width 6' x depth 5' 10"

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.

Plan Set

PDF Set :
$720.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set :
$810.00
5 printed plan sets mailed to you.
8 Copy Set :
$900.00
8 printed plan sets mailed to you.
Reproducible Set :
$900.00
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
CAD Set :
$1440.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Basement:
$0.00
Ideal for level lot, lower level of home partially or fully underground.
Crawlspace:
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Daylight Basement:
$247.50
Ideal for sloping lot, lower level of home partially underground.
Slab:
$247.50
Ideal for level lot, single layer concrete poured directly on grade.

Framing

Wood 2x6:
$0.00
Wood 2x6

Additional Options

Material List :
76.50
A list of building supplies needed to construct the infrastructure of your new house.
Right-Reading Reverse :
157.50
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
54.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
54.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Home Furniture Planner :
17.10
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
90.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Audio Video Design :
90.00
Receive an overlay sheet with suggested placement of audio and video components.
