PLAN #417-841

Key Specs

sq ft





This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

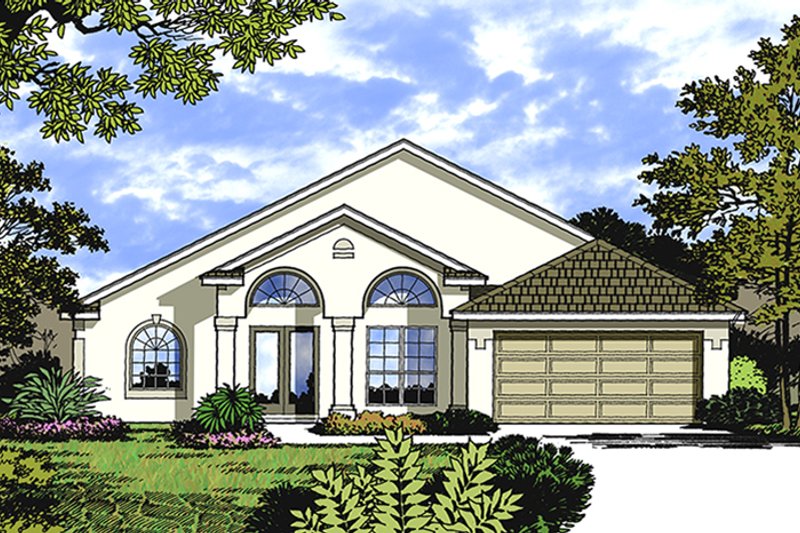

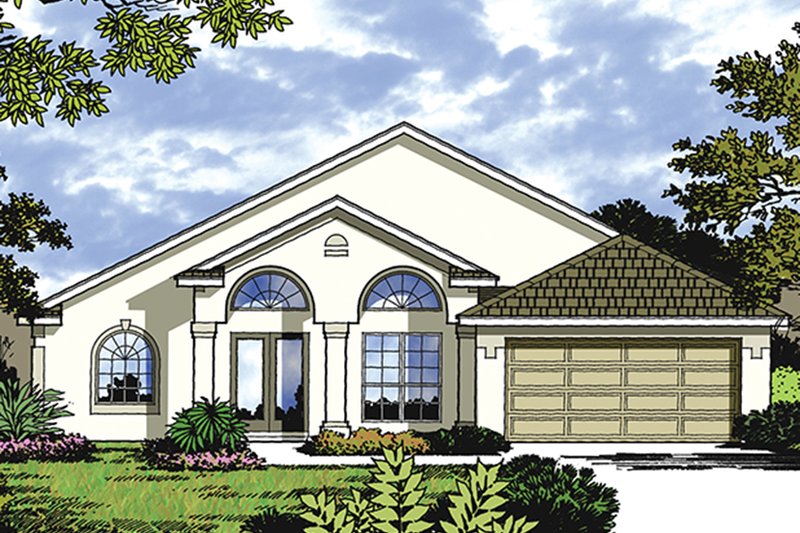

A dramatic double door entry with windowed transom and arched windows create a striking facade that would enhance any community. The archways continue throughout the home and, combined with plant shelves, add to the luxurious feel of the plan. The split plan layout provides open and spacious living areas while affording the bedrooms plenty of privacy.

Floor Plans

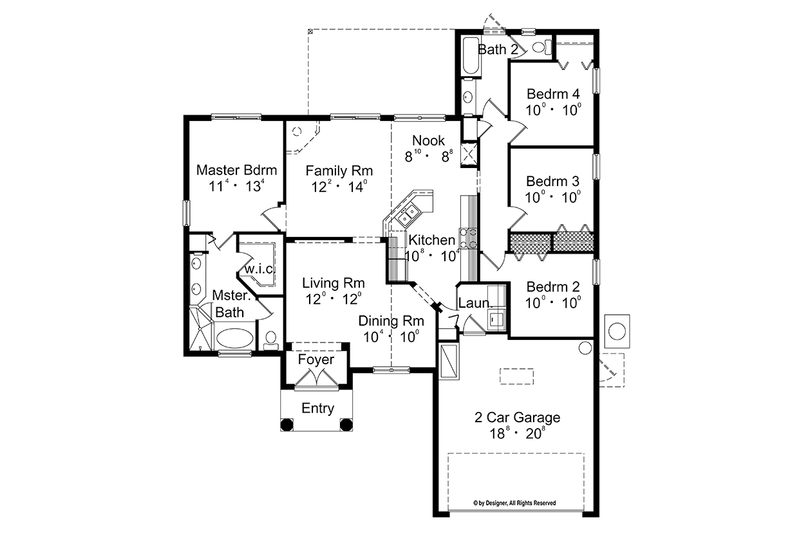

Floor Plan - Main Floor Plan
Mediterranean Floor Plan - Main Floor Plan Plan #417-841

Full Specs & Features

Dimension Depth : 58' 8"
Height : 21' 8"
Width : 50'
Area Garage : 430 sq/ft
Main Floor : 1640 sq/ft
Bedroom Features Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Additional Room Features Family Room Keeping Room
Main Floor Laundry
Vaulted / Cathedral Ceilings
Garage Features Front Entry Garage
Outdoor Spaces Covered Front Porch
Covered Rear Porch
Bedroom 2 100 sq/ft width 10' x depth 10'
Bedroom 3 100 sq/ft width 10' x depth 10'
Bedroom 4 100 sq/ft width 10' x depth 10'
Covered Front Porch 43 sq/ft width 0" x depth 0"
Covered Rear Porch 182 sq/ft width 0" x depth 0"
Dining Room 103 sq/ft width 10' 4" x depth 10'
Family Room 170 sq/ft width 12' 2" x depth 14'
Garage 430 sq/ft width 18' 8" x depth 20' 8"
Kitchen 110 sq/ft width 10' 8" x depth 10' 4"
Living Room 144 sq/ft width 12' x depth 12'
Master Bedroom 151 sq/ft width 11' 4" x depth 13' 4"
Nook 77 sq/ft width 8' 10" x depth 8' 8"

What's Included In This Plan Set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Plan Set
5 Copy Set :
5 printed plan sets mailed to you.
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Ideal for level lot, single layer concrete poured directly on grade.
Ideal for level lot, lower level of home partially or fully underground.
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Additional Options
Right-Reading Reverse :
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Home Furniture Planner :
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
Receive an overlay sheet with suggested placement of lighting fixtures.
Audio Video Design :
Receive an overlay sheet with suggested placement of audio and video components.
