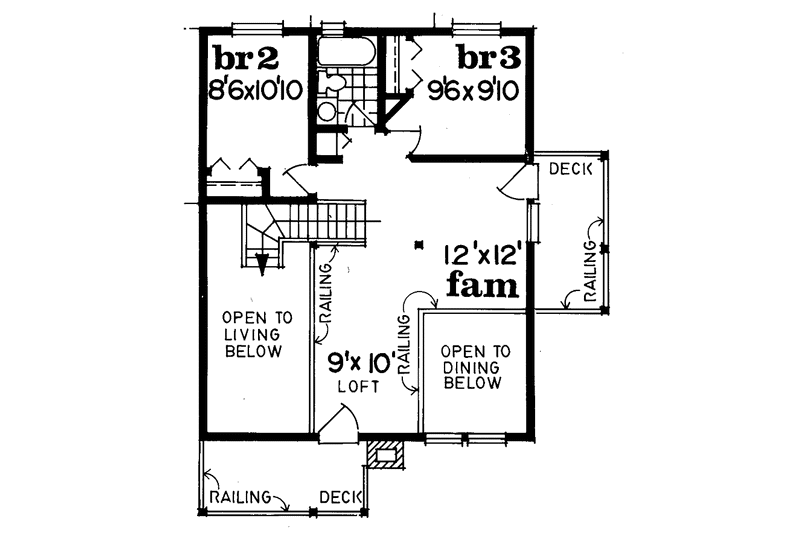

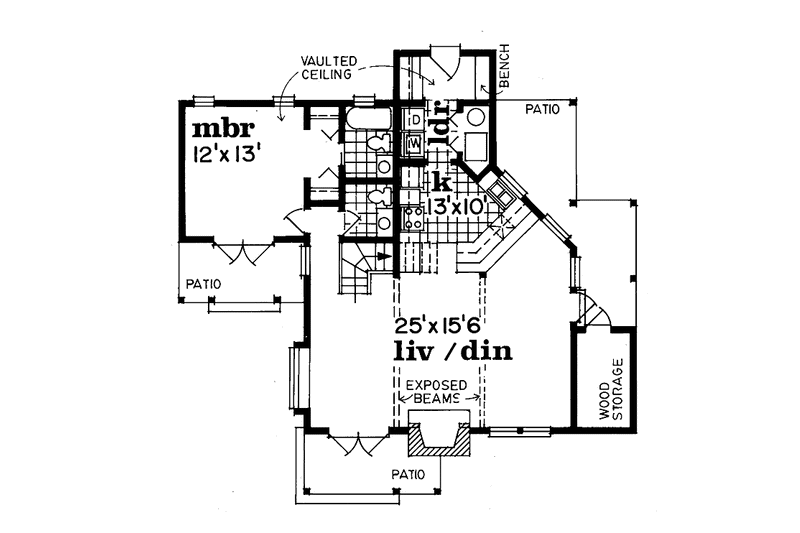

Stone and siding complement chalet features to make this cozy design. The vaulted living and dining rooms, with exposed beam ceilings, are open to the loft above. A spacious wood storage area is found off the living room to feed the warm hearth inside. The kitchen features a pass-through counter to the dining area and leads to a laundry room with work bench. The master suite is on the first floor and has a private patio and bath. An additional half-bath is located in the main hall. The second floor holds a family room with desk and two family bedrooms with shared bath.
3rd BR Closet:
10 sq/ft width 5' 2" x depth 2'
37 sq/ft width 7' 5" x depth 5'
92 sq/ft width 10' 10" x depth 8' 6"
Bedroom 2 Closet:
10 sq/ft width 2' x depth 5' 2"
93 sq/ft width 9' 10" x depth 9' 6"
Bedroom 3 Closet:
10 sq/ft width 2' x depth 5' 2"
2002 sq/ft width 44' x depth 45' 6"
Den/Office or Bedroom 1:
407 sq/ft width 15' 8" x depth 26'
40 sq/ft width 4' 6" x depth 9'
150 sq/ft width 12' x depth 12' 6"
28 sq/ft width 5' 8" x depth 5'
9 sq/ft width 4' 6" x depth 2'
130 sq/ft width 10' x depth 13'
36 sq/ft width 7' 4" x depth 5'
156 sq/ft width 13' x depth 12'
6 sq/ft width 2' x depth 3' 4"
55 sq/ft width 9' 10" x depth 5' 8"
28 sq/ft width 5' x depth 5' 8"
