PLAN 70-1111

Key Specs


1680
sq ft

2
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


Traditional in style but high on detail, this 1680 square foot ranch home will blend easily into any neighborhood. With two bedrooms and a den, this home will please many buyers with families who also need an at-home work environment. The open floor plan includes a kitchen with a central island that has direct access to the adjacent great and dining rooms, and a screened porch is accessed through patio doors off the back of the home. The master suite pleases with a tray ceiling, walk-in closet and direct laundry access. A two-stall garage completes this plan.

Floor Plans


Floor Plan - Main Floor Plan
Reverse

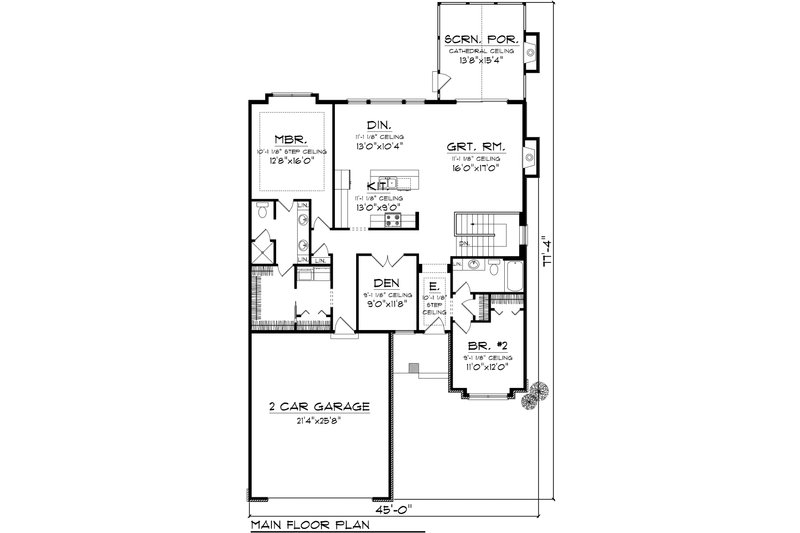

Ranch Floor Plan - Main Floor Plan Plan #70-1111

Full Specs & Features


Dimension
Depth : 77' 4"
Height : 20'
Width : 45'
Area
First Floor: 1680 sq/ft
Garage: 572 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Ceiling Details : 9'. Din Rm/Kitchen/Grt Rm Vaulted, Master Bdrm/Entry 10' Step, Bdrm #2 Cathedral
Lower Ceiling : 9'
Main Ceiling : 9'
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Roof Load : 47 psf
Roof Type : Asphalt
Secondary Pitch : 6:12
Exterior Wall Framing
Exterior Wall Finish : Siding, Stone
Framing : 2x6
Bedroom Features
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Additional Room Features
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Sunroom
Unfinished Future Space
Garage Features
Front Entry Garage
Lot Characteristics
Suited For Narrow Lot
Outdoor Spaces
Screened Porch
More
Economical To Build
Rooms

Bedroom 2:

width 11' x depth 12'

Den:

width 9' x depth 11' 8"

Dining Room:

width 13' x depth 10' 4"

Garage:

572 sq/ft width 21' 4" x depth 25' 8"

Great Room:

width 16' x depth 17'

Kitchen:

width 13' x depth 9'

Master Bedroom:

width 12' 8" x depth 16'

Screened Porch:

width 13' 8" x depth 15' 4"

What's Included In This Plan Set


  • Cover sheet with front rendering
  • Foundation and floor plans at 1/4" = 1' scale
  • Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
  • Building sections and details as required to construct the individual design
  • Interior elevation of cabinets at 1/4" = 1' scale
  • Roof plans
  • Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
  • Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
  • Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
