Plan Description
This ranch design floor plan is 1692 sq ft and has 2 bedrooms and 2 bathrooms.
Floor Plans

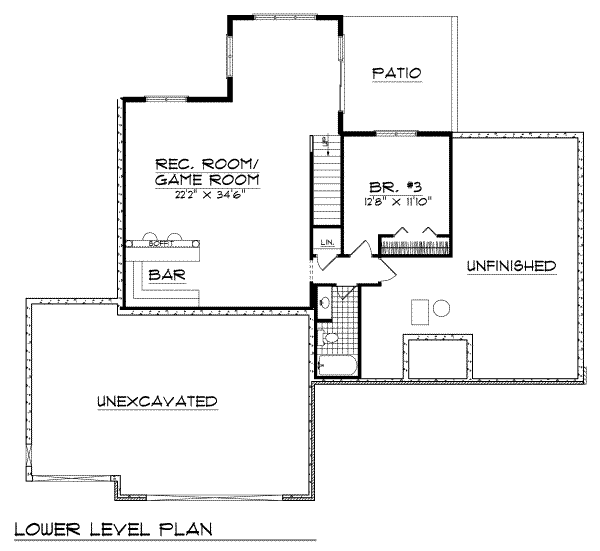

Floor Plan - Lower Floor

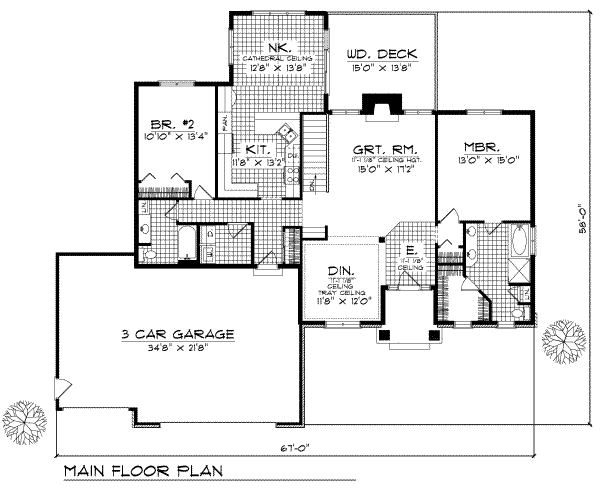

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 58'
Height : 24'
Width : 68'
Area
First Floor: 1692 sq/ft height 9'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : Wood - 2x6
Bedroom Features
Walk In Closet
Kitchen Features
Breakfast Nook
Additional Room Features
Great Room Living Room
Unfinished Future Space
Garage Features
Oversized Garage
Lot Characteristics
Suited For Sloping Lot
Suited For View Lot
More
Empty Nester
Rooms
Bedroom 2:
144 sq/ft width 10' 10" x depth 13' 4"
Dining Room:
140 sq/ft width 11' 8" x depth 12'
Great Room:
257 sq/ft width 15' x depth 17' 2"
Kitchen:
153 sq/ft width 11' 8" x depth 13' 2"
Master Bedroom:
195 sq/ft width 13' x depth 15'
Nook:
173 sq/ft width 12' 8" x depth 13' 8"
