Plan Description

 This three bedroom home features an open living room plan, a blend of indoor & outdoor living spaces, and generous exterior living areas. The designers have taken care to include several design options that cater to different aesthetic tastes and accommodate different budgets. The simple form and sharp gabled roof resonates with an iconic understanding of a home. The standing seem metal roof, smooth white stucco, and rich woodtones give it a crisp modern feel that accentuate the clean lines without making it seem foreboding. Integrated planter boxes provide color and texture to this friendly suburban minimalism. An optional roof deck over the garage provides serviceable outdoor space on small lots.
 A custom wood fence can really set a house apart from the rest of the neighborhood. On a narrow lot it makes sense to pay a little extra attention to the fence since it will be the walls of any outdoor space. By using wood that matches the trim of the house the yard will be perceived as a series of outdoor extensions to the interior spaces.
 The first floor of this home uses it’s open spaces and outside escapes to create a larger than expected feel. The kitchen, dining, and living room have been connected to allow open living and family evenings. Each family member will be able to conduct different activities, while still communicating. This open multi-tasking environment is a useful reflection of today’s lifestyle.
 The second floor’s key feature is it’s open on to an expansive roof deck. This indoor\outdoor living concepts takes what could have been a tight upper level, and greatly expands it allowing for barbeques, stargazing, and just hanging out. The master bed and bath leave nothing to be desired and are a great example of efficient luxury.
 The simple kitchen layout with the half-bar provides generous cooking and food preparation area. The half-bar makes for an excellent morning breakfast stop before starting the work day. Open shelving, in addition to the generous array of windows, give this kitchen a light, airy feel. The entry-level solid surface countertops, like DuPont’s Simplicity, are a great way to provide a clean sanitary look without breaking the bank. The stainless steel refrigerator comes with a pull-out freezer, which makes accessing your frozen food a breeze.
 In the Dining room, the double French doors offer an opportunity for a patio perfect for outdoor grilling. Exposed wood beams give the ceiling texture and provide a hint of rusticity. The office armoire allows for the everyday functionality of a computer station at the center of the living level but can be closed shut to hide clutter when not in use or when entertaining company.
 In the Living room, the indentation on the far wall is a great place to locate television, audio equipment, and reading materials. The sectional couches can be arranged in a number of configurations, which provides flexibility to the space to accommodate both formal entertainment and casual, everyday functions.
 The ductwork of the HVAC system is located entirely within the conditioned space of the building, which greatly enhances its efficiency over conventional installations. Additionally, a Heat Recovery Ventilator accomplishes two tasks: 1)It ensures healthy indoor air quality by continually expelling old, stale air from within the home and 2)It mediates the thermal properties between the outgoing and incoming airstreams, which further-increases the efficiency of the HVAC system. The simple villa has two options for locating the furnace—one in the attic and one on the ground floor—which accommodates different builders’ preferences. Domestic hot water needs are met by an on-demand, tankless water heater. Building electricity is offset by 2.04kW of solar shingles by Eagle Integrated Solar.

Floor Plans

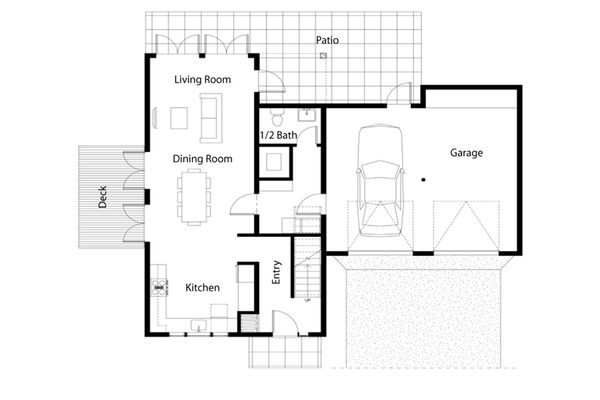

Floor Plan - Main Floor Plan
Traditional Floor Plan - Main Floor Plan Plan #497-38

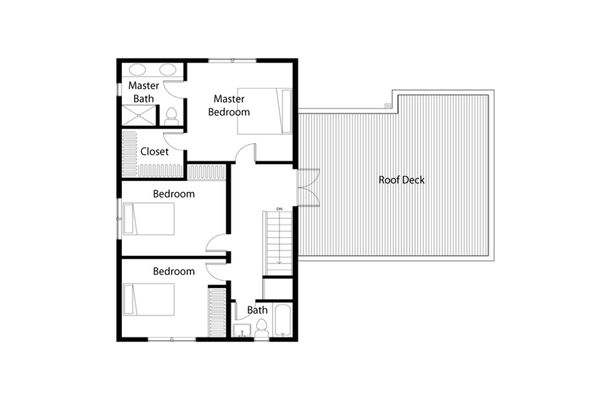

Floor Plan - Upper Floor Plan
Traditional Floor Plan - Upper Floor Plan Plan #497-38

Full Specs & Features

Depth : 40'
Height : 25' 6"
Width : 46'
Decks : 1001 sq/ft
Main Floor : 814 sq/ft
Upper Floor : 880 sq/ft
Main Ceiling : 8' 2"
Upper Ceiling Ft : 8' 2"
Roof Framing : Stick
Primary Pitch : 9:12
Roof Type : Gable
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : 2"x6"
Bedroom Features
Upstairs Bedrooms
Upstairs Master Bedrooms
Walk In Closet
Additional Room Features
Great Room Living Room
Outdoor Spaces
Grill Deck Sundeck
Economical To Build
Energy Efficient Features
Energy Efficient Design

What's Included In This Plan Set

House plans created for Green Living give our customers design options that meet or exceed existing energy standards, while giving options in the realm of cost, style, and environmental commitment. As an example, all Green Living homes are designed to perform 30% to 50% better than prescriptive building code energy performance. The level of home performance depends on the products that you choose.

Each Green Living house plan includes:

  • LEED for Homes Rating System: Guidelines to meet LEED for Homes certification levels of: Certified, Silver, Gold, and Platinum. LEED for Homes is a national, voluntary certification system, developed by national experts and experienced builders, that promotes the design and construction of high-performance green homes and encourages the adoption of sustainable practices by the homebuilding industry. The LEED for Homes Rating System is part of the suite of nationally recognized LEED Green Building Rating Systems administered by USGBC. Like all LEED Rating Systems, it is the market's leadership system, targeting the top 25% of home building practices in terms of environmental responsibility. LEED provides industry resources and tools on how to "green" any new home. With LEED, homebuilders can differentiate their structures as meeting the highest performance measures, and homebuyers can readily identify high quality green homes. LEED provides national consistency in defining the features of a green home, enables builders anywhere in the country to obtain a green rating on their homes, and assures homebuyers of the quality of their purchases, all based on a recognized national brand. Learn more about the LEED® Rating System here.
  • Window shading details: External window shading devices are an effective method for reducing heat gains through windows during Summer. In fact, external shading devices can reduce heat gains by up to 80% if sized and built properly. With this in mind, the founders of Green Living, formerly Free Green, created this page to assist home builders in constructing effective window shading devices. The information we provide includes a zoning map of the United States, zoning charts for proper sizing of shading devices and a variety of shading device styles and materials to suite different tastes and different home designs.
  • General Notes: Typically one sheet of general notes pertinent to the construction of the home
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Wall sections and other construction details: Detailed drawings showing wall connections, from foundation to the roof. wall connections to foundation, window installation, siding installation, stair details, and more.
  • Framing Plans: Drawn to 1/4" scale. The framing layout is intended to be a suggested layout only. Design loads & weather conditions vary by region. As a result the size, spacing & layout of all structural elements in this home design must be approved by a structural engineer and code official based on your specific site location prior to construction.
  • Electrical Plan with electrical symbols legend: In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc. Note: Most Green Living plans have an electrical plan, however some do not. Please contact us to verify.
