PLAN #406-247

Key Specs


1756
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

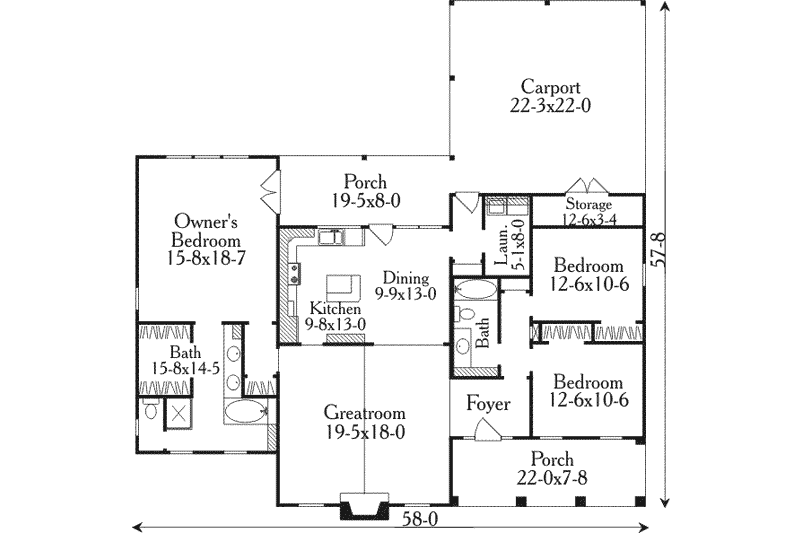

Floor Plan - Main Floor Plan
Floor Plan - Main Floor Plan

Full Specs & Features


Dimension Depth : 58'
Height : 21'
Width : 58'
Area Garage : 538 sq/ft
Main Floor : 1756 sq/ft
Porch : 324 sq/ft
Ceiling Main Ceiling : 9'
Roof Primary Pitch : 8:12
Secondary Pitch : 10:12
Exterior Wall Framing Framing : 2"x4"
Bedroom Features Split Bedrooms
Kitchen Features Kitchen Island
Breakfast Nook
Additional Room Features Great Room Living Room
Storage Area
Garage Features Carport Porte Cochere
Side Entry Garage
Lot Characteristics Suited For Corner Lot
Suited For View Lot
Outdoor Spaces Covered Front Porch
Covered Rear Porch

What's Included In This Plan Set


Larry James Design

  • The first sheet is the cover sheet which outline the Design Criteria and Construction Notes, such as general site, foundation, framing and mechanical notes

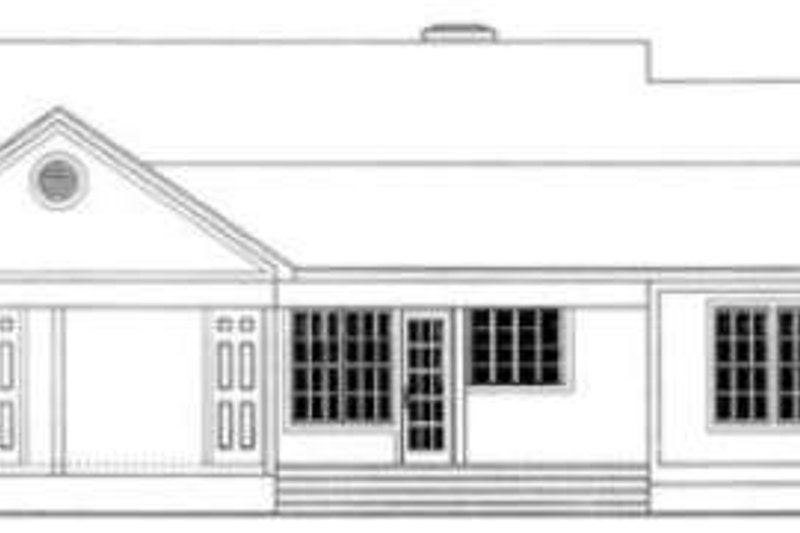

  • The second sheet is typically the front and side elevation drawn to 1/4" scale.
  • The third sheet is the rear and side elevation drawn to 1/4" scale.
  • The foundation of your choice (slab, crawl space or basement). Floor Plan 1/4" Scale
  • Detail and Section Page
  • Cabinet elevations & Roof Plan
  • Electrical Plan
  • Foundation Details
