PLAN 927-722
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.Plan Description

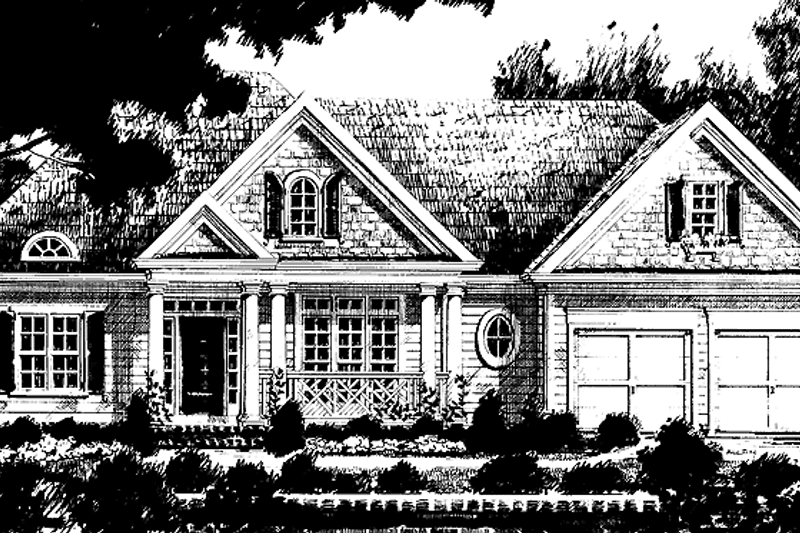

This darling Early American adaptation will be the highlight of your neighborhood. Varied window treatments, a detailed lattice porch and a portico-style entry lend unmatched charm to the exterior. Inside, a heightened foyer leads to the vaulted great room, complete with a warming fireplace. The modified-galley kitchen includes a serving bar and easily accesses the breakfast nook and dining room. At the right rear, comparable bedrooms share a full bath. The master suite is located for privacy and is adorned with a tray ceiling, vaulted bath, and elongated walk-in closet built for two. Bonus space above the garage is perfect for a home office, gym, or studio.
Special offer for builders! Select a CAD, PDF, or Reproducible format, and you will receive an unlimited use license at no additional cost. Build as many times as you like with no re-use fees! This offer only applies to plans bearing this note. Unless explicitly noted, a purchased plan may only be built once. An unlimited use license is not transferable.
Full Specs & Features
Dimension
Depth : 47' 8"
Height : 23' 6"
Width : 61'
Height : 23' 6"
Width : 61'
Area
Basement Unfinished: 1769 sq/ft

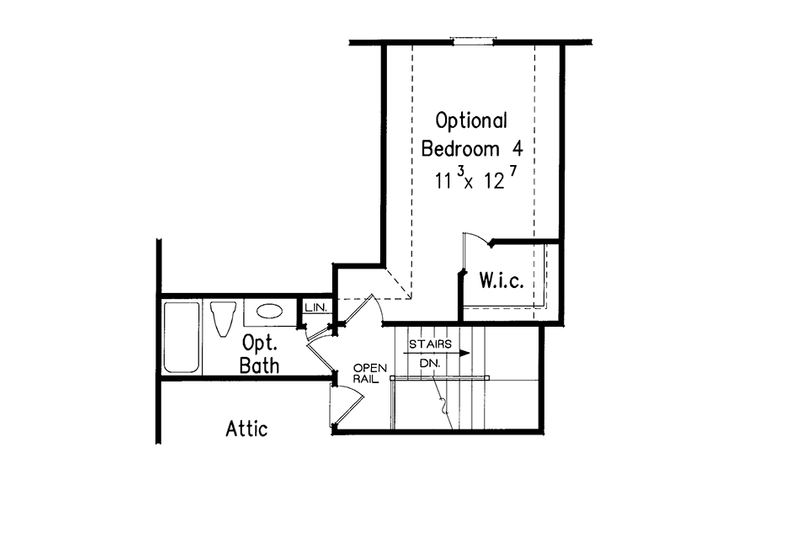

Bonus: 324 sq/ft
First Floor: 1769 sq/ft height 9'
Garage: 468 sq/ft
Bonus: 324 sq/ft
First Floor: 1769 sq/ft height 9'
Garage: 468 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 10:12
Roof Framing : Conventional
Roof Type : Shingle
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x4
Framing : Wood - 2x4
Bedroom Features
Fireplace
Split Bedrooms
Split Bedrooms
Kitchen Features
Breakfast Nook
Outdoor Spaces
Covered Front Porch
Rooms

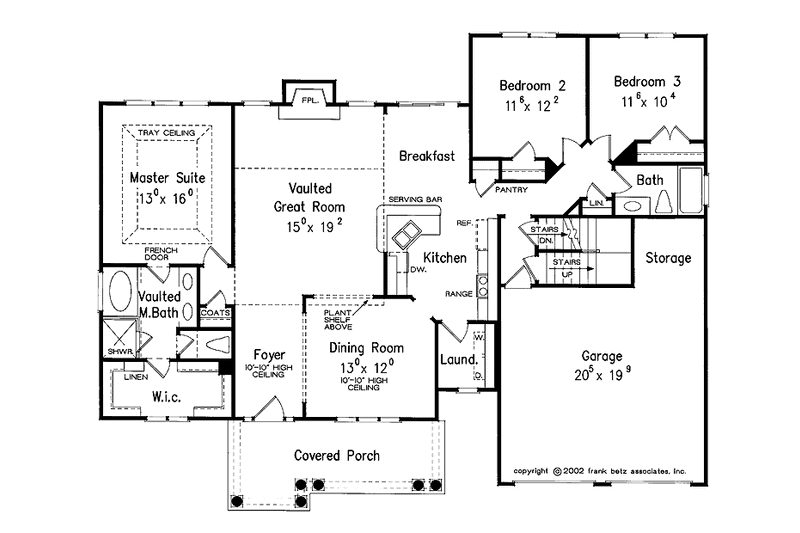

Bedroom 2:
139 sq/ft width 11' 6" x depth 12' 2"
Bedroom 3:
118 sq/ft width 11' 6" x depth 10' 4"
Bedroom 4:
141 sq/ft width 11' 3" x depth 12' 7"
Breakfast:
89 sq/ft width 8' 4" x depth 10' 9"
Dining Room:
164 sq/ft width 13' 4" x depth 12' 4"
Foyer:
84 sq/ft width 6' 10" x depth 12' 4"
Great Room:
287 sq/ft width 15' x depth 19' 2"
Kitchen:
118 sq/ft width 11' x depth 10' 9"
Laundry Room:
37 sq/ft width 5' 9" x depth 6' 6"
Master Bathroom:
88 sq/ft width 9' 6" x depth 9' 4"
Master Bedroom:
208 sq/ft width 13' x depth 16'
Master Closet:
72 sq/ft width 13' x depth 5' 7"
