PLAN 70-946
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 56'
Height : 22' 9"
Width : 50'
Area
First Floor: 1770 sq/ft height 9'
Garage: 852 sq/ft
Ceiling
Lower Ceiling : 8'
Main Ceiling : 9'
Roof
Primary Pitch : 6:12
Roof Framing : Truss
Roof Load : 47 psf
Secondary Pitch : 8:12
Exterior Wall Framing
Exterior Wall Finish : Shake, Stone, Siding
Framing : 2"x6"
Insulation : Exterior R-19, Ceiling R-38
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Eating Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Storage Area
Garage Features
Oversized Garage
Lot Characteristics
Suited For Narrow Lot
Outdoor Spaces
Covered Front Porch
More
Empty Nester
Rooms
Bedroom 2:
172 sq/ft width 14' x depth 12' 4"
Dining Room:
126 sq/ft width 11' 6" x depth 11'
Garage:
909 sq/ft width 23' 4" x depth 39'
Great Room:
306 sq/ft width 22' 8" x depth 13' 6"
Kitchen:
162 sq/ft width 12' x depth 13' 6"
Master Bedroom:
226 sq/ft width 14' x depth 16' 2"
What's Included In This Plan Set
- Cover sheet with front rendering

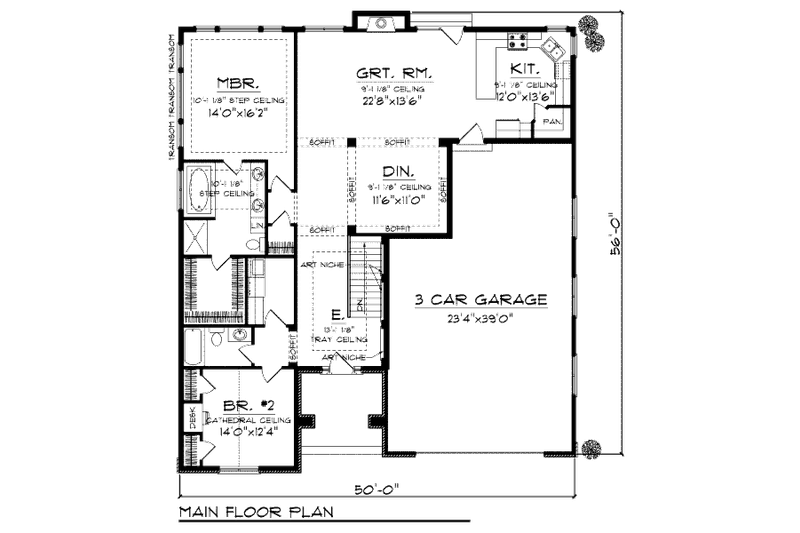

- Foundation and floor plans at 1/4" = 1' scale

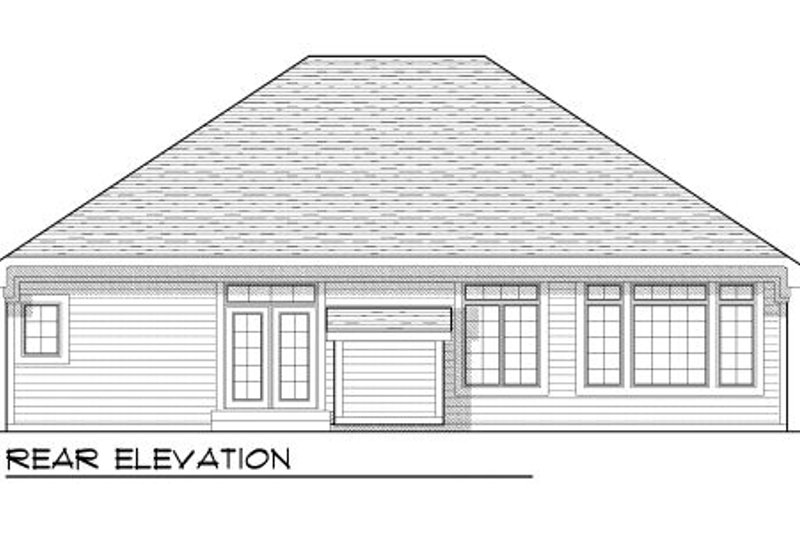

- Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
- Building sections and details as required to construct the individual design
- Interior elevation of cabinets at 1/4" = 1' scale
- Roof plans
- Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
- Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
- Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
Plan Set
$1006.00
$1060.00
$1257.00
$1257.00
$1999.00
Foundation
$0.00
$395.00
$395.00
Additional Options
$395.00
$80.00
$100.00
$39.00
$75.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
