PLAN #417-849

Key Specs

sq ft





This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

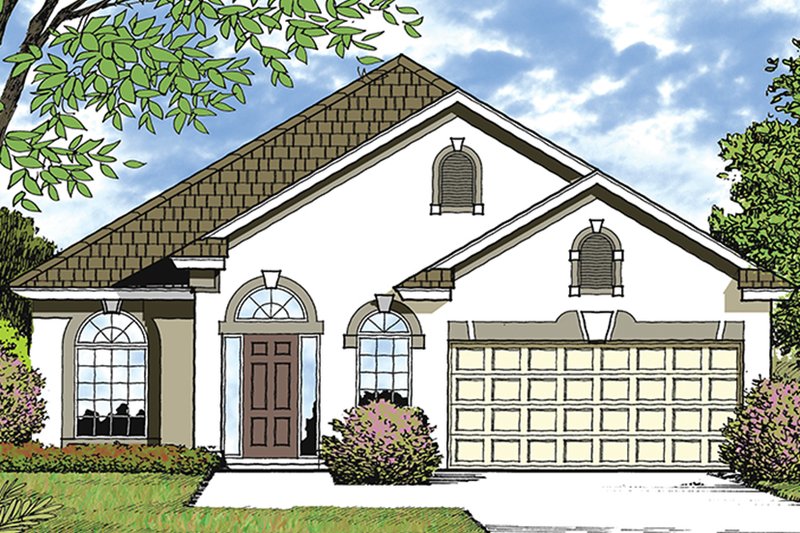

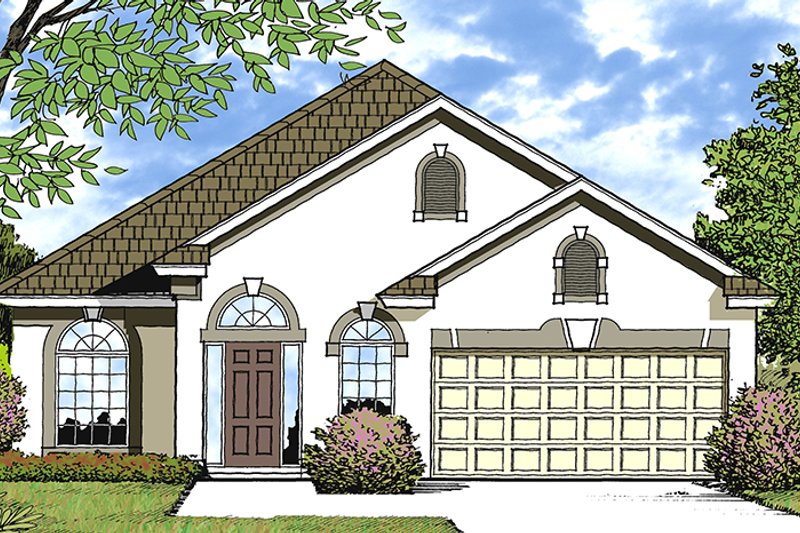

This narrow lot plan with clean lined Traditional exterior is perfect for any community. An archway leads from the welcoming living room and dining room into a large open informal living space encompassing the family room, kitchen and nook. The private master suite in the rear of the home has a sliding glass door to the patio area. Another archway leads to the secondary bedrooms.

Floor Plans

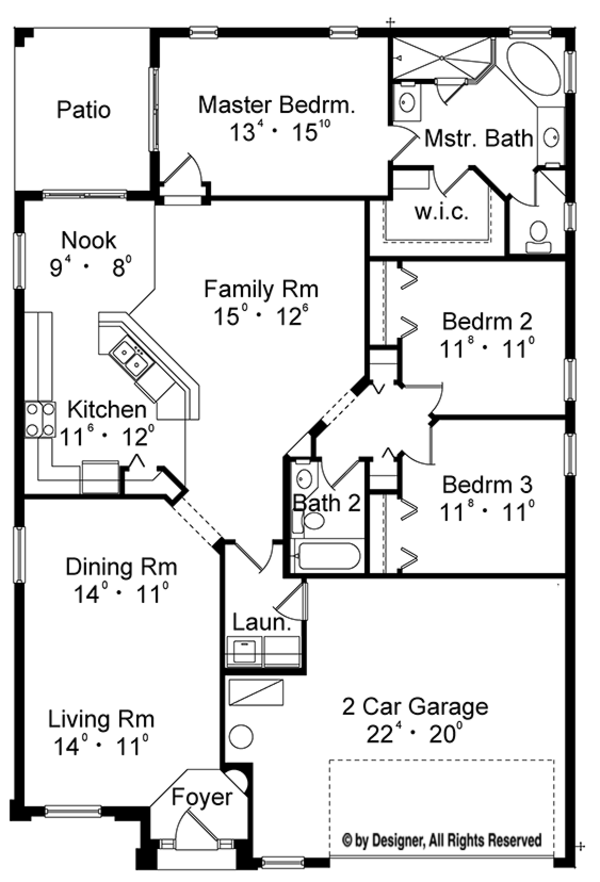

Floor Plan - Main Floor Plan

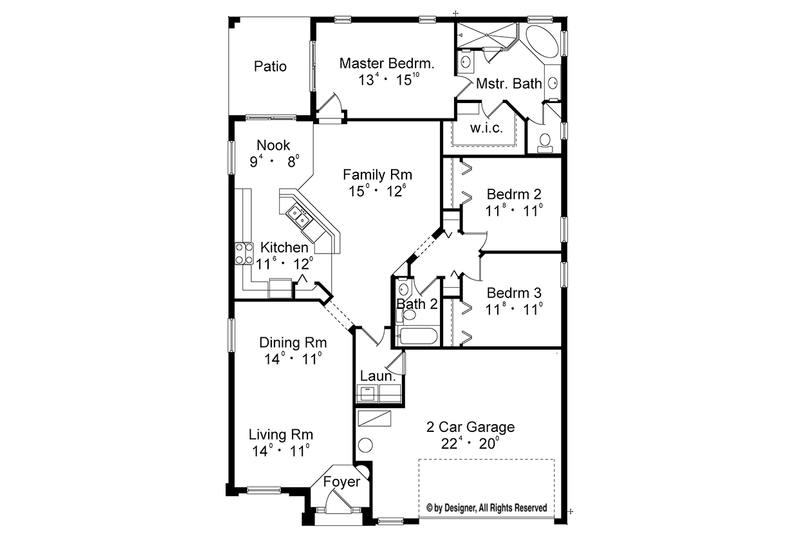

European Floor Plan - Main Floor Plan Plan #417-849

Full Specs & Features

Dimension Depth : 60'
Width : 40'
Area Garage : 463 sq/ft
Main Floor : 1771 sq/ft
Bedroom Features Main Floor Master Bedroom
Walk In Closet
Formal Dining Room
Formal Living Room / Parlor
Kitchen Features Kitchenette Wet Bar
Breakfast Nook
Additional Room Features Family Room Keeping Room
Main Floor Laundry
Open Floor Plan
Vaulted / Cathedral Ceilings
Garage Features Front Entry Garage
Outdoor Spaces Courtyard
Bedroom 2 128 sq/ft width 11' 8" x depth 11'
Bedroom 3 128 sq/ft width 11' 8" x depth 11'
Covered Front Porch 11 sq/ft width 0" x depth 0"
Covered Rear Porch 120 sq/ft width 0" x depth 0"
Dining Room 154 sq/ft width 14' x depth 11'
Family Room 188 sq/ft width 15' x depth 12' 6"
Garage 463 sq/ft width 22' 4" x depth 20'
Kitchen 138 sq/ft width 11' 6" x depth 12'
Living Room 154 sq/ft width 14' x depth 11'
Master Bedroom 211 sq/ft width 13' 4" x depth 15' 10"
Nook 75 sq/ft width 9' 4" x depth 8'

What's Included In This Plan Set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Plan Set
5 Copy Set :
5 printed plan sets mailed to you.
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Ideal for level lot, single layer concrete poured directly on grade.
Ideal for level lot, lower level of home partially or fully underground.
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Additional Options
Right-Reading Reverse :
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Home Furniture Planner :
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
Receive an overlay sheet with suggested placement of lighting fixtures.
Audio Video Design :
Receive an overlay sheet with suggested placement of audio and video components.
