Plan Description
Though smaller in size, this traditional one-story home provides a
family-oriented floor plan that leaves nothing out. Besides the formal living
room (or study if you prefer) and dining room, there+s a gathering room with
fireplace, snack bar and sliding glass doors to the rear terrace. The U-shaped
kitchen is in close proximity to the handy utility area. Of particular note is
the grand master bedroom with garden whirlpool tub, walk-in closet and private
terrace. The sleeping area is completed with two family bedrooms to the front.
Floor Plans

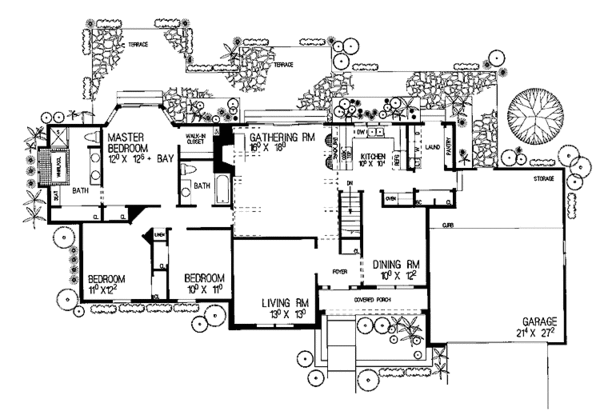

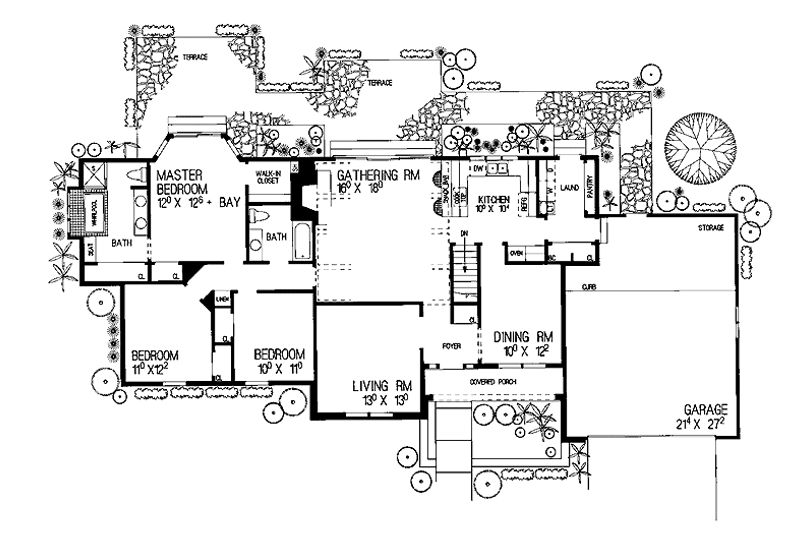

Floor Plan - Main Floor

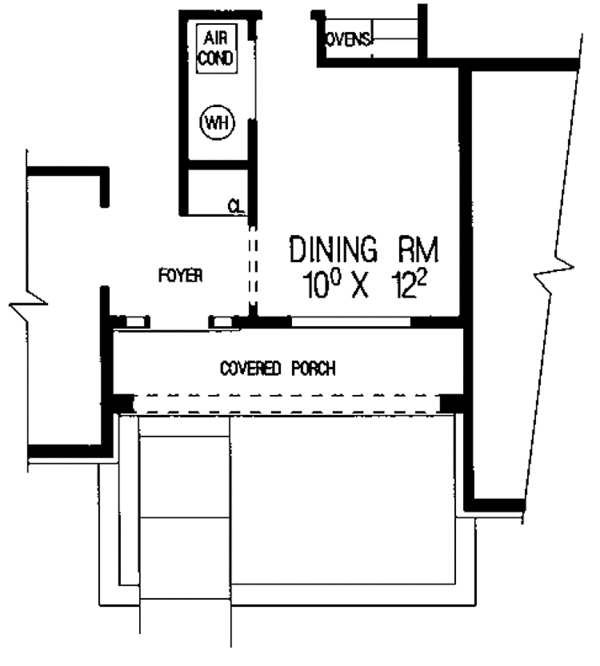

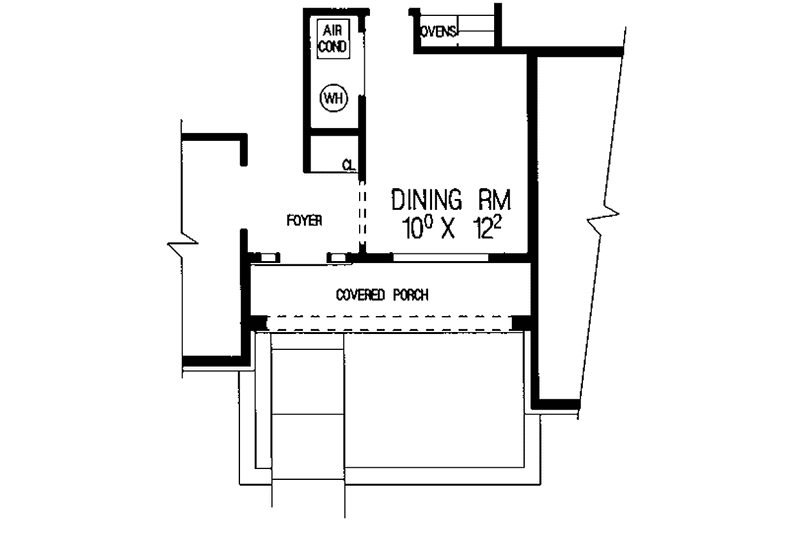

Floor Plan - Other Floor
Full Specs & Features
Dimension
Depth : 38' 8"
Height : 21'
Width : 82' 4"
Area
First Floor: 1777 sq/ft height 8'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 7:12
Roof Framing : Truss
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x6
Bedroom Features
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Additional Room Features
Great Room Living Room
Outdoor Spaces
Covered Front Porch
Rooms
Dining Room:
121 sq/ft width 12' 2" x depth 10'
Gathering Room:
288 sq/ft width 18' x depth 16'
Living Room:
169 sq/ft width 13' x depth 13'
Master Bedroom:
150 sq/ft width 12' 6" x depth 12'
