PLAN #70-1164

Key Specs


1783
sq ft

2
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


This craftsman ranch is abundant in size and impressive in detail. Massive columns define a spacious front porch while barn door-style garage doors, stone and shingle siding all complement each other to create maximum curb appeal. Inside, an open concept floor plan design takes advantage of every inch of living space. The kitchen features an island with eating area that overlooks the dining room and nook to the back of the home. The living room lies adjacent and includes a step ceiling and a wall of windows that provide plenty of natural light to the living space. The master suite lies to the right of the home and includes a walk-in closet and dual sinks. The second bedroom lies to the front of the home just to the right of the entry. A two-stall garage completes this home.

Floor Plans

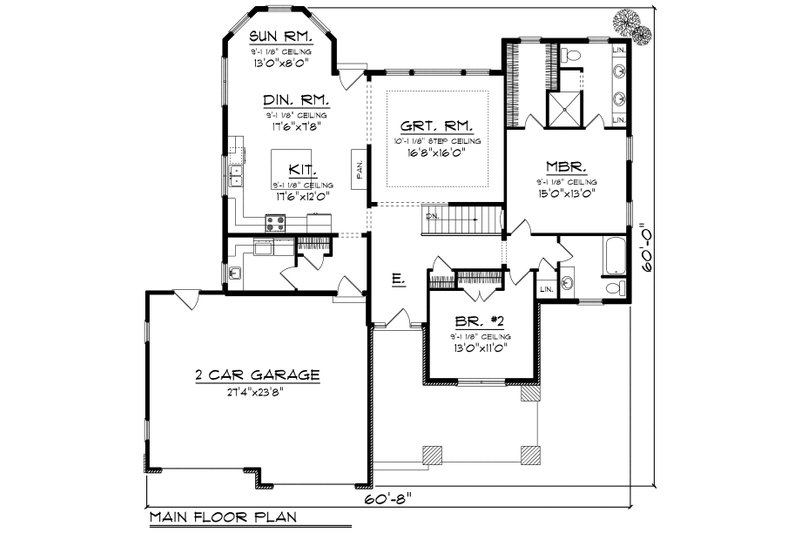

Floor Plan - Main Floor Plan
Floor Plan - Main Floor Plan

Full Specs & Features


Dimension Depth : 60'
Height : 8'
Width : 60' 8"
Area Garage : 645 sq/ft
Main Floor : 1783 sq/ft
Porch : 259 sq/ft
Ceiling Ceiling Details : Grt Rm 10' Step
Lower Ceiling : 8'
Main Ceiling : 9'
Roof Roof Framing : Truss
Roof Load : 47 psf
Primary Pitch : 8:12
Secondary Pitch : 6:12
Exterior Wall Framing Exterior Wall Finish : Siding, Shake, Stone
Framing : 2x6
Bedroom Features Main Floor Master Bedroom
Walk In Closet
Kitchen Features Kitchen Island
Breakfast Nook
Additional Room Features Mud Room
Great Room Living Room
Main Floor Laundry
Unfinished Future Space
Garage Features Front Entry Garage
Outdoor Spaces Covered Front Porch
Screened Porch Sunroom

What's Included In This Plan Set


Ahmann Design

  • Cover sheet with front rendering
  • Foundation and floor plans at 1/4" = 1' scale
  • Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
  • Building sections and details as required to construct the individual design
  • Interior elevation of cabinets at 1/4" = 1' scale
  • Roof plans
  • Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
  • Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
  • Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
» See important information before purchasing.
Plan Set
5 Copy Set :
$853.00
5 printed plan sets mailed to you.
8 Copy Set :
$895.00
8 printed plan sets mailed to you.
PDF Set :
$1070.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
$1070.00
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
CAD Set :
$1695.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation
Basement:
$0.00
Ideal for level lot, lower level of home partially or fully underground.
Crawlspace:
$295.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab:
$295.00
Ideal for level lot, single layer concrete poured directly on grade.
Additional Options
Right-Reading Reverse :
295.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
40.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
