PLAN #406-190

Key Specs

sq ft





This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

Floor Plan - Main Floor Plan

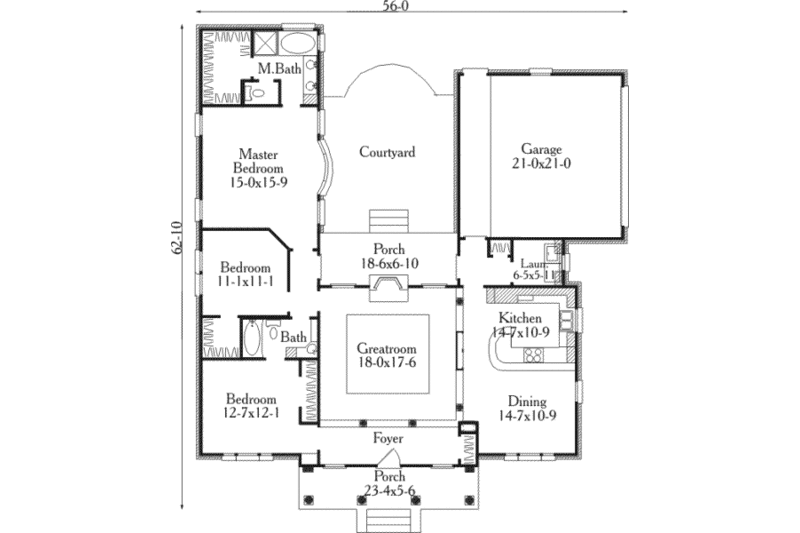

Southern Floor Plan - Main Floor Plan Plan #406-190
Floor Plan - Other Floor Plan

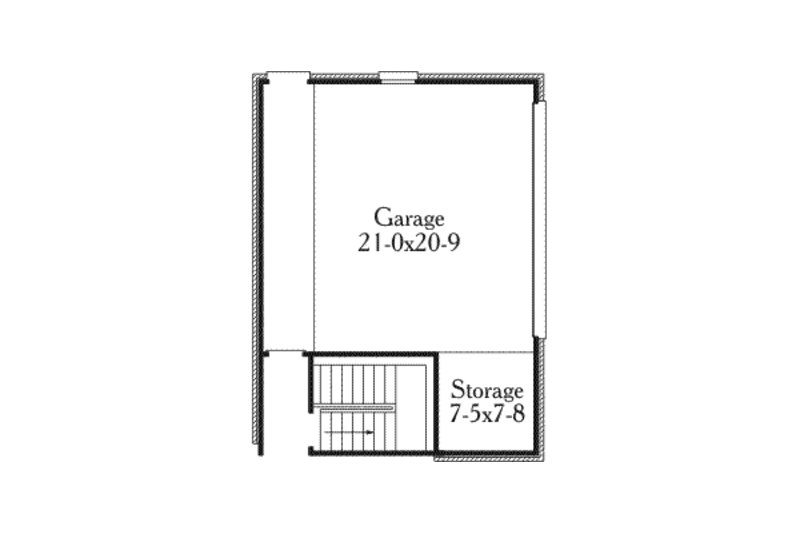

Southern Floor Plan - Other Floor Plan Plan #406-190

Full Specs & Features

Depth : 62' 10"
Height : 26'
Width : 56'
First Floor: 1792 sq/ft height 9'
Main Ceiling : 9'
Primary Pitch : 10:12
Exterior Wall Framing
Framing : 2"x4"
Bedroom Features
Walk In Closet
Kitchen Features
Eating Bar
Breakfast Nook
Additional Room Features
Great Room Living Room
Storage Area
Garage Features
Rear Garage
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Suited For View Lot
Outdoor Spaces
Covered Front Porch

Bedroom 2:

122 sq/ft width 11' 1" x depth 11' 1"

Bedroom 3:

152 sq/ft width 12' 7" x depth 12' 1"

Dining Room:

156 sq/ft width 14' 7" x depth 10' 9"


441 sq/ft width 21' x depth 21'

Gathering Room:

315 sq/ft width 18' x depth 17' 6"


156 sq/ft width 14' 7" x depth 10' 9"

Laundry Room:

37 sq/ft width 6' 5" x depth 5' 11"

Master Bedroom:

236 sq/ft width 15' x depth 15' 9"

Porch - Front:

128 sq/ft width 23' 4" x depth 5' 6"

Porch - Rear:

126 sq/ft width 18' 6" x depth 6' 10"

What's Included In This Plan Set

  • The first sheet is the cover sheet which outline the Design Criteria and Construction Notes, such as general site, foundation, framing and mechanical notes

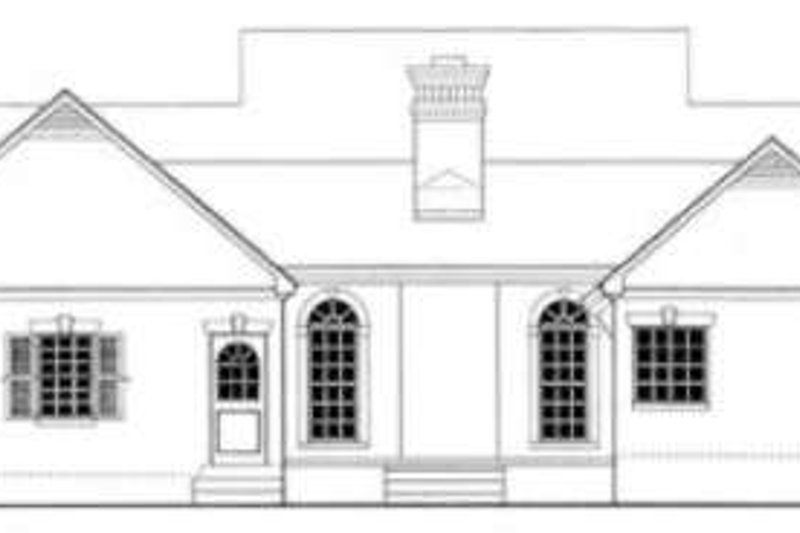

  • The second sheet is typically the front and side elevation drawn to 1/4" scale.
  • The third sheet is the rear and side elevation drawn to 1/4" scale.
  • The foundation of your choice (slab, crawl space or basement). Floor Plan 1/4" Scale
  • Detail and Section Page
  • Cabinet elevations & Roof Plan
  • Electrical Plan
  • Foundation Details
» See important information before purchasing.
Plan Set
5 Copy Set :
5 printed plan sets mailed to you.
8 Copy Set :
8 printed plan sets mailed to you.
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Ideal for level lot, single layer concrete poured directly on grade.
Ideal for level lot, lower level of home partially or fully underground.
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Additional Options
Material List :
A list of building supplies needed to construct the infrastructure of your new house.
Right-Reading Reverse :
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
