Key Specs


1795
sq ft

3
Beds

2.5
Baths

2
Floors

0
Garages

This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


Here's what you want in a weekend getaway: a cozy fireplace, room for guests, and seemingly endless windows. A sunken spa on the deck provides the perfect place for stargazing. Inside the home, floor-to-ceiling windows let you enjoy the view from the open dining and living rooms. The kitchen includes a snack counter for dishing up casual meals. A full bathroom and spacious closet make the master suite a luxurious retreat. Don't miss the practical amenities (including a powder bath, bench, and closets) on this level. Upstairs, two more bedrooms share a full bathroom and a loft. <P/><BR/>Special offer for builders! Select a CAD, PDF, or Reproducible format, and you will receive an unlimited use license at no additional cost. Build as many times as you like with no re-use fees! This offer only applies to plans bearing this note. Unless explicitly noted, a purchased plan may only be built once. An unlimited use license is not transferable.

Floor Plans

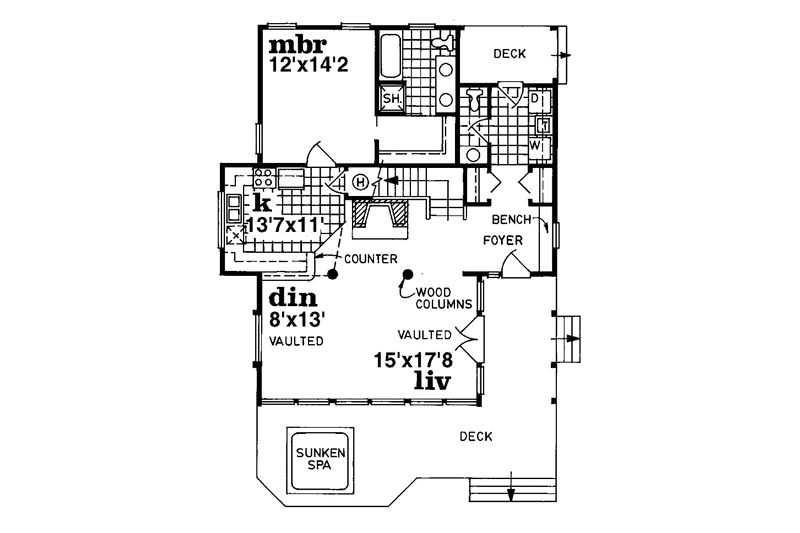

Floor Plan - Main Floor Plan
Floor Plan - Main Floor Plan Plan #47-927

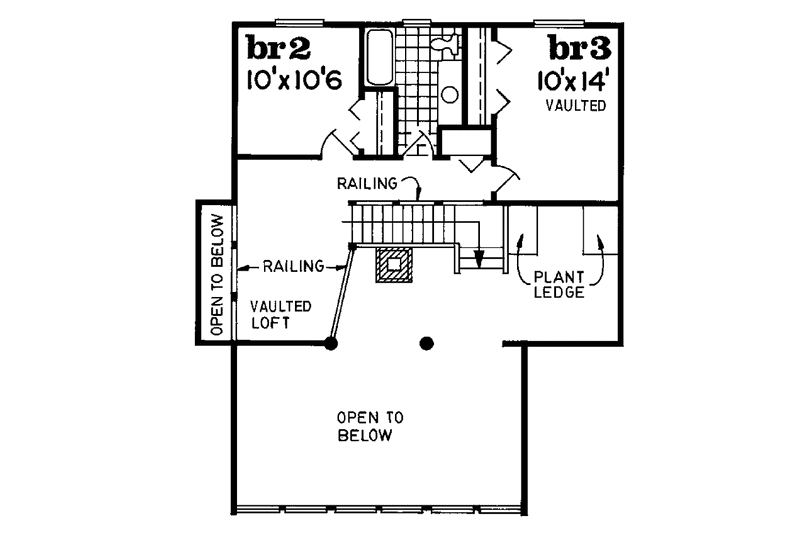

Floor Plan - Upper Floor Plan
Floor Plan - Upper Floor Plan Plan #47-927

Full Specs & Features


Dimension Depth : 40'
Height : 32'
Width : 36'
Area Main Floor : 1157 sq/ft
Upper Floor : 638 sq/ft
Bedroom Features Split Bedrooms
Walk In Closet
Fireplace
Formal Dining Room
Kitchen Features Kitchenette Wet Bar
Outdoor Spaces Covered Front Porch
Covered Rear Porch
Loft Balcony
3rd BR Closet 16 sq/ft width 2' x depth 8' 2"
Basement Foundation 1440 sq/ft width 36' x depth 40'
Bedroom 2 105 sq/ft width 10' x depth 10' 6"
Bedroom 2 Closet 10 sq/ft width 2' x depth 5' 2"
Bedroom 3 140 sq/ft width 10' x depth 14'
Bedroom 3 Closet 10 sq/ft width 2' x depth 5' 2"
Crawlspace Foundation 1440 sq/ft width 36' x depth 40'
Deck 384 sq/ft width 32' x depth 12'
Dining Room 104 sq/ft width 8' x depth 13'
Hall 63 sq/ft width 9' x depth 7'
Hall Bathroom 84 sq/ft width 8' x depth 10' 6"
Hall Closet 7 sq/ft width 2' x depth 3' 6"
Kitchen 149 sq/ft width 13' 7" x depth 11'
Living Room 265 sq/ft width 15' x depth 17' 8"
Master Bathroom 68 sq/ft width 8' 2" x depth 8' 4"
Master Bedroom 170 sq/ft width 12' x depth 14' 2"
Master Closet 44 sq/ft width 8' 2" x depth 5' 6"
Porch - Front 108 sq/ft width 8' x depth 13' 6"
Porch - Rear 63 sq/ft width 10' 6" x depth 6'
Powder Room 26 sq/ft width 3' 4" x depth 8'
Utility Room 52 sq/ft width 6' 6" x depth 8'

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
