PLAN 1010-141

Home > Style > Ranch House Plans

Key Specs

1803
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description

This lovely ranch home holds a split-bedroom layout that nicely balances privacy with relaxed gathering spaces. In the middle of the home, the kitchen features a central island with an extra sink (besides the large one with a view of the front yard) that's convenient for rinsing veggies. Nearby, the dining room opens via sliding doors to the deck, while also flowing easily into the great room. On the right side of the home, the master suite offers a private bathroom, a large walk-in closet, and easy access to the laundry room. On the opposite side, two family bedrooms share a bath with double sinks.

Floor Plans

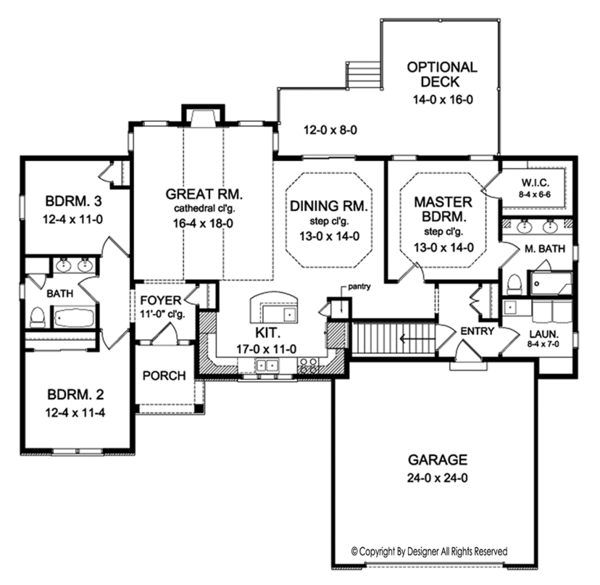

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Full Specs & Features

Dimension

Depth : 52'

Height : 26' 6"

Width : 65'

Area

Basement Unfinished: 1803 sq/ft

First Floor: 1803 sq/ft height 9'

Garage: 571 sq/ft

Porch: 60 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 12:12

Roof Framing : Combination Truss/Conventional

Roof Type : Asphalt

Secondary Pitch : 8:12

Exterior Wall Framing

Exterior Wall Finish : Shingle/Stone

Framing : Wood - 2x6

Bedroom Features

Fireplace

Main Floor Master Bedroom

Split Bedrooms

Walk In Closet

Kitchen Features

Kitchen Island

Additional Room Features

Great Room Living Room

Main Floor Laundry

Mud Room

Open Floor Plan

Vaulted / Cathedral Ceilings

Garage Features

Front Entry Garage

Outdoor Spaces

Covered Front Porch

Deck

Rooms

Bedroom 2:

140 sq/ft width 12' 4" x depth 11' 4"

Bedroom 3:

136 sq/ft width 12' 4" x depth 11'

Covered Front Porch:

60 sq/ft

Dining Room:

182 sq/ft width 13' x depth 14'

Garage:

571 sq/ft width 24' x depth 24'

Great Room:

294 sq/ft width 16' 4" x depth 18'

Kitchen:

187 sq/ft width 17' x depth 11'

Laundry Room:

58 sq/ft width 8' 4" x depth 7'

Master Closet:

54 sq/ft width 8' 4" x depth 6' 6"

Master Bedroom:

182 sq/ft width 13' x depth 14'

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Roof Plan: ?” scale; this shows roof rafter or trusses and how the roof is framed.
CAD Plans are in AutoDesk Architecture.

Questions? Call 1-800-447-0027

Plan Set

PDF Set:
$1300.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set:
$1350.00

5 printed plan sets mailed to you.

CAD Set:
$2600.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Single Set:
$800.00

One printed set for bidding purposes only. Not a legal building set for construction.

Study Set:
$800.00

One electronic set for bidding purposes only. Not a legal building set for construction.

Foundation

Basement:
$0.00

Ideal for level lot, lower level of home partially or fully underground.

Framing

Wood 2x6:
$0.00

Wood 2x6 Exterior Walls

Additional Options

Additional Construction Sets:
$75.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design:
$165.00

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List:
$295.00

A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.

Construction Guide:
$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$165.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets:
$100.00

A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
