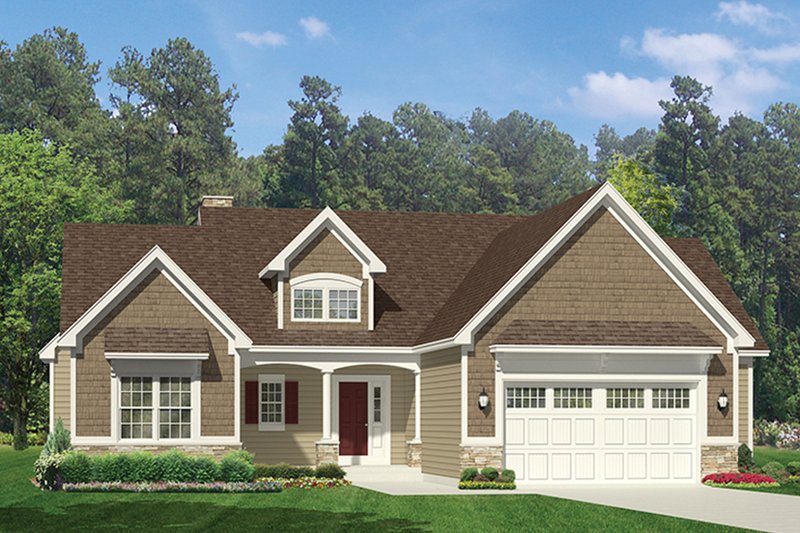

Photographs may show modified designs.

Save
Select Plan Set Options
What's included?
Additional Construction Sets
$60.00/each
Mirror Reversed Sets
$75.00
Subtotal
$900.00
Or order by phone: 1-800-447-0027
Cost-to-Build Estimates
How much will this cost to build?
This report will provide you cost estimates based on location and building materials.
Questions?
Questions?
Need an answer fast? Call us at 1-800-447-0027

We do our best to get back within 24 - 48 business hours.
Hours  Mon-Fri, 9 am - 8:30 pm (EST)

PLAN #1010-142

Key Specs


1915
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


This graceful one-story home really puts the everyday needs of homeowners first. Take a look at the entrance from the garage: a bench provides a place to sit and take off shoes, while the direct entrance into the kitchen (and the pantry a few steps away) makes it a snap to unload groceries. Another bench sits just off the primary foyer. On the right, the master suite includes a walk-in closet plus linen storage and another bench in the bathroom. The dining room opens to a porch for after-dinner outdoor enjoyment. Each secondary bedroom also includes a walk-in closet.

Floor Plans

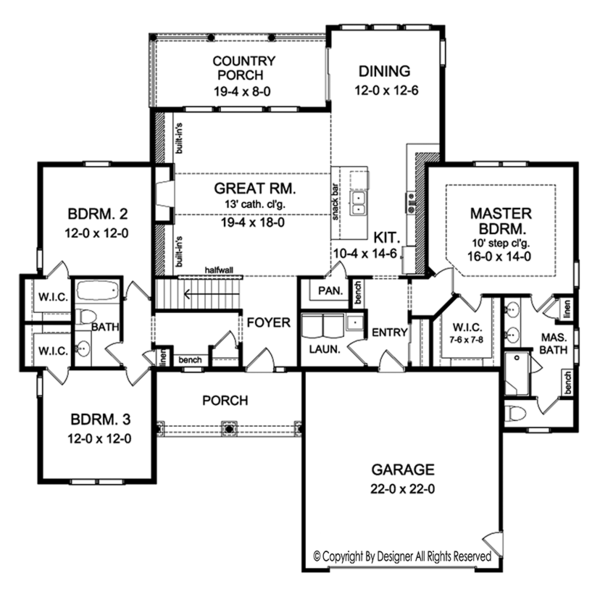

Floor Plan - Main Floor Plan
Ranch Floor Plan - Main Floor Plan Plan #1010-142

Full Specs & Features


Dimension
Depth : 60'
Height : 25' 5"
Width : 59' 4"
Area
Basement Unfinished: 1915 sq/ft
First Floor: 1915 sq/ft height 9'
Garage: 484 sq/ft
Roof
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Shingle/Siding
Framing : Wood - 2x6
Bedroom Features
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Fireplace
Kitchen Features
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Mud Room
Great Room Living Room
Main Floor Laundry
Open Floor Plan
Vaulted / Cathedral Ceilings
Garage Features
Front Entry Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms

Bedroom 2:

144 sq/ft width 12' x depth 12'

Bedroom 3:

144 sq/ft width 12' x depth 12'

Covered Front Porch:

114 sq/ft

Covered Rear Porch:

155 sq/ft width 19' 4" x depth 8'

Dining Area:

150 sq/ft width 12' x depth 12' 6"

Garage:

484 sq/ft width 22' x depth 22'

Great Room:

348 sq/ft width 19' 4" x depth 18'

Kitchen:

150 sq/ft width 10' 4" x depth 14' 6"

Master Closet:

58 sq/ft width 7' 6" x depth 7' 8"

Master Bedroom:

224 sq/ft width 16' x depth 14'

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :
  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Roof Plan: ⅛” scale; this shows roof rafter or trusses and how the roof is framed.
» See important information before purchasing.

Plan Set

5 Copy Set :
$900.00
5 printed plan sets mailed to you.
PDF Set :
$900.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set :
$1800.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Basement:
$0.00
Ideal for level lot, lower level of home partially or fully underground.

Framing

Wood 2x6:
$0.00
Wood 2x6

Additional Options

Additional Construction Sets :
60.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design :
100.00
Receive an overlay sheet with suggested placement of audio and video components.
Home Furniture Planner :
19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
100.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets :
75.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
