PLAN 51-516

Home > Style > Craftsman House Plans

Key Specs

1824
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description

This craftsman design floor plan is 1824 sq ft and has 3 bedrooms and 2 bathrooms.

Floor Plans

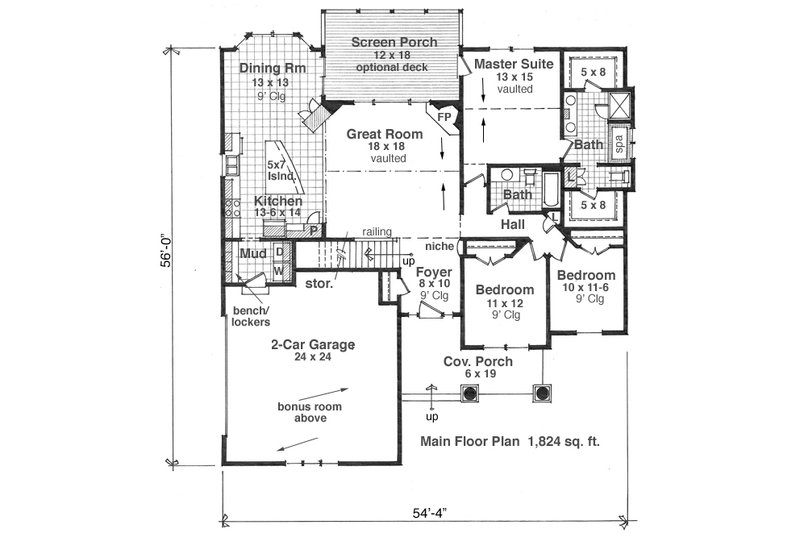

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

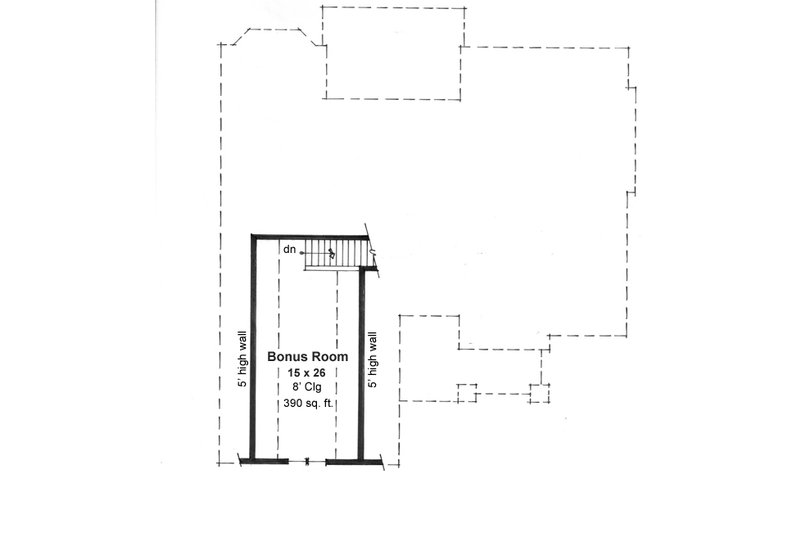

Floor Plan - Other Floor

Reverse

Full Specs & Features

Dimension

Depth : 56'

Height : 24'

Width : 54' 4"

Area

Bonus: 390 sq/ft height 8'

First Floor: 1824 sq/ft height 9'

Garage: 576 sq/ft height 9'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Bonus Ceiling : 8'

Ceiling Details : Great room and master suite are vaulted clgs.

Main Ceiling : 9'

Roof

Primary Pitch : 7:12

Roof Framing : Trusses

Secondary Pitch : 12:12

Exterior Wall Framing

Exterior Wall Finish : brick,shakes

Framing : 2"x6"

Bedroom Features

Main Floor Bedrooms

Main Floor Master Bedroom

Walk In Closet

Kitchen Features

Kitchen Island

Walk In Pantry Cabinet Pantry

Additional Room Features

Family Room Keeping Room

Great Room Living Room

Main Floor Laundry

Mud Room

Play Flex Room

Storage Area

Unfinished Future Space

Garage Features

Side Entry Garage

Lot Characteristics

Suited For Corner Lot

Suited For View Lot

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

Empty Nester

Suited For Vacation Home

Rooms

Bedroom 2:

132 sq/ft width 11' x depth 12'

Bedroom 3:

115 sq/ft width 10' x depth 11' 6"

Bonus Room - Unfinished:

390 sq/ft width 15' x depth 26'

Dining Room:

169 sq/ft width 13' x depth 13'

Foyer:

80 sq/ft width 8' x depth 10'

Great Room:

324 sq/ft width 18' x depth 18'

Kitchen:

189 sq/ft width 13' 6" x depth 14'

Master Bedroom:

195 sq/ft width 13' x depth 15'

Porch - Front:

114 sq/ft width 6' x depth 19'

Porch - Screened:

216 sq/ft width 12' x depth 18'

What's Included In This Plan Set

See a sample plan set

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements. Drawn to 1/4" and 1/8" scale.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Roof Layout: Overhead view of roof showing ridges, valleys, and pitch.
Note: These plans will not contain an electrical layout.
