Key Specs


1857
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

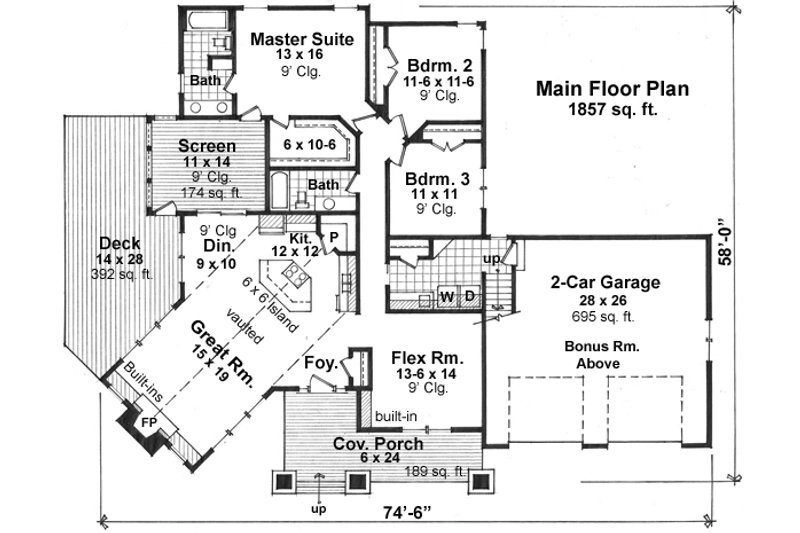

Floor Plan - Main Floor Plan
Craftsman style house plan, main level floor plan

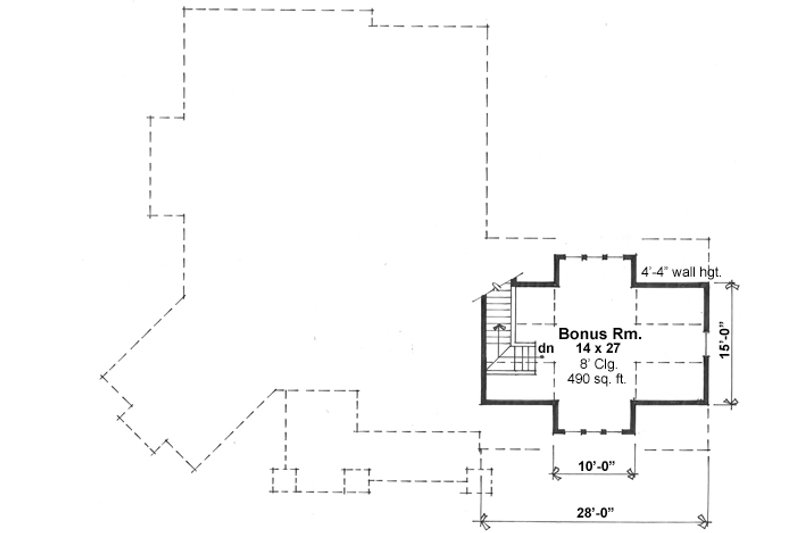

Floor Plan - Other Floor Plan
Craftsman style house plan, bonus level floor plan

Full Specs & Features


Dimension
Depth : 58'
Height : 26' 6"
Width : 74' 6"
Area
Bonus: 490 sq/ft height 8'
First Floor: 1857 sq/ft height 9'
Garage: 695 sq/ft height 9'
Ceiling
Bonus Ceiling : 8'
Main Ceiling : 9'
Roof
Roof Framing : Trusses
Primary Pitch : 9:12
Secondary Pitch : 12:12
Exterior Wall Framing
Exterior Wall Finish : Shingle/Stone
Framing : 2"x6"
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Mud Room
Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Unfinished Future Space
Sunroom
Garage Features
Front Entry Garage
Lot Characteristics
Suited For Corner Lot
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Grill Deck Sundeck
Screened Porch
More
Empty Nester
Suited For Vacation Home
Unusual Shape
Structural Information Provided
Foundation Drawing
Structural Notes
Rooms

Bedroom 2:

132 sq/ft width 11' 6" x depth 11' 6"

Bedroom 3:

121 sq/ft width 11' x depth 11'

Bonus Room - Unfinished:

378 sq/ft width 14' x depth 27'

Deck:

392 sq/ft width 14' x depth 28'

Dining Room:

90 sq/ft width 9' x depth 10'

Flex Room:

189 sq/ft width 13' 6" x depth 14'

Garage:

728 sq/ft width 28' x depth 26'

Great Room:

285 sq/ft width 15' x depth 19'

Kitchen:

144 sq/ft width 12' x depth 12'

Master Bedroom:

208 sq/ft width 13' x depth 16'

Porch - Front:

144 sq/ft width 6' x depth 24'

Porch - Screened:

154 sq/ft width 11' x depth 14'

What's Included In This Plan Set


  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements. Drawn to 1/4" and 1/8" scale.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Roof Layout: Overhead view of roof showing ridges, valleys, and pitch.
  • Note: These plans will not contain an electrical layout.
» See important information before purchasing.
