PLAN 406-209
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 45' 10"
Height : 26'
Width : 79' 9"
Area
Basement Unfinished: 1860 sq/ft
First Floor: 1860 sq/ft height 8'
Garage: 610 sq/ft
Porch: 367 sq/ft
Ceiling
Main Ceiling : 8'
Roof
Primary Pitch : 8:12
Roof Type : Shingle
Secondary Pitch : 12:12
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : 2"x4"
Bedroom Features
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Additional Room Features
Great Room Living Room
Storage Area
Entryway
Friend S Entry
Lot Characteristics
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms
Bedroom 2:
150 sq/ft width 11' 1" x depth 13' 7"
Bedroom 3:
142 sq/ft width 12' 3" x depth 11' 8"
Breakfast:
145 sq/ft width 12' 6" x depth 11' 8"
Dining Room:
136 sq/ft width 12' 2" x depth 11' 3"
Garage:
465 sq/ft width 21' 5" x depth 21' 9"
Kitchen:
154 sq/ft width 12' 6" x depth 12' 4"
Laundry Room:
70 sq/ft width 7' 6" x depth 9' 5"
Living Room:
271 sq/ft width 18' 1" x depth 15'
Master Bathroom:
118 sq/ft width 9' 9" x depth 12' 2"
Master Bedroom:
208 sq/ft width 13' x depth 16'
Shop:
83 sq/ft width 8' 8" x depth 9' 8"
What's Included In This Plan Set
- Cover Sheet: Outlines the design criteria and construction notes, such as general site, foundation, framing, and mechanical notes

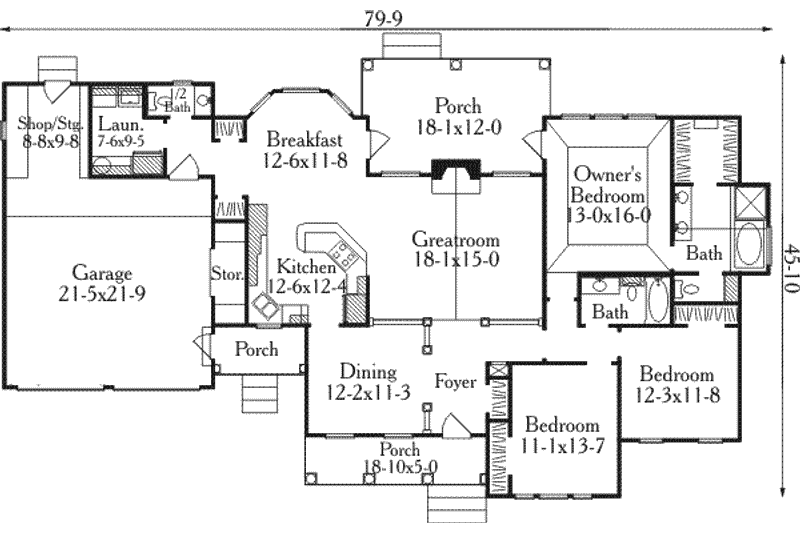

- Foundation Plan(s): The foundation of your choice (slab or crawlspace - fee may apply)
- Floor Plan(s): Detailed plans for each level showing room dimensions, wall partitions, windows and doors, fixture locations, and ceiling treatments.

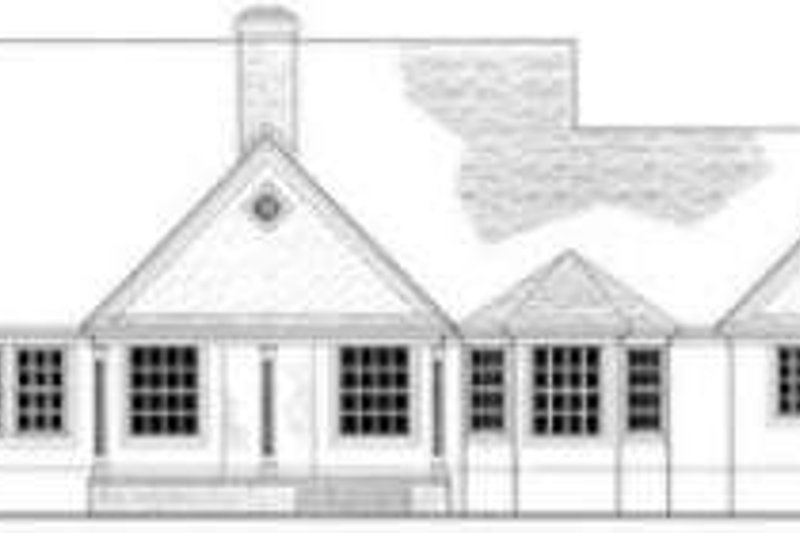

- Exterior Elevations: Views of the home from all four sides showing exterior materials, roof slope, ridge heights, siding and trim notes.
- Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
- Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
- Electrical Plan(s): Shows the location of lights, receptacles, switches, etc. Some plans that do not include an electrical plan may have it available for an additional fee.
- Kitchen Cabinet Elevation(s): Detailed drawings of kitchen cabinet elevations.
- Construction Notes / Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
Plan Set
$1260.00
$1605.00
$1780.00
$2165.00
Foundation
$0.00
$350.00
$350.00
Framing
$0.00
Additional Options
$300.00
$165.00
$295.00
$39.00
$165.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
