Key Specs


1863
sq ft

3
Beds

2.5
Baths

2
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans


Floor Plan - Main Floor Plan

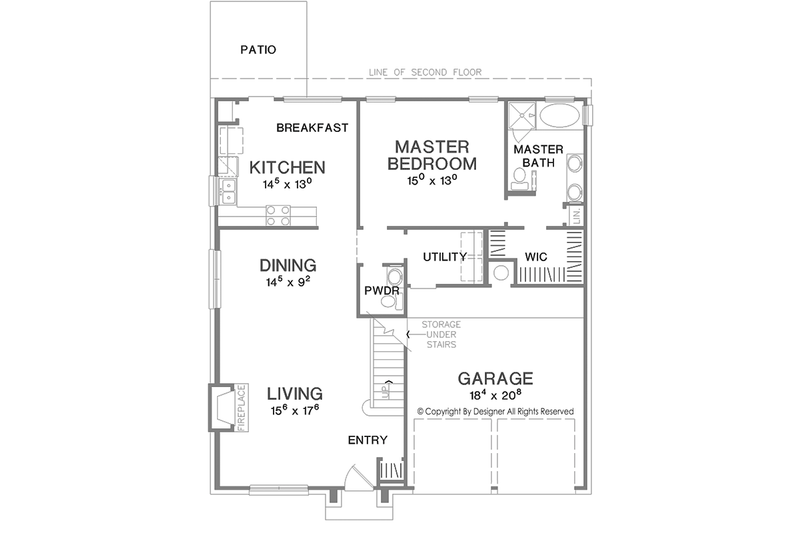

European Floor Plan - Main Floor Plan Plan #472-405
Floor Plan - Upper Floor Plan

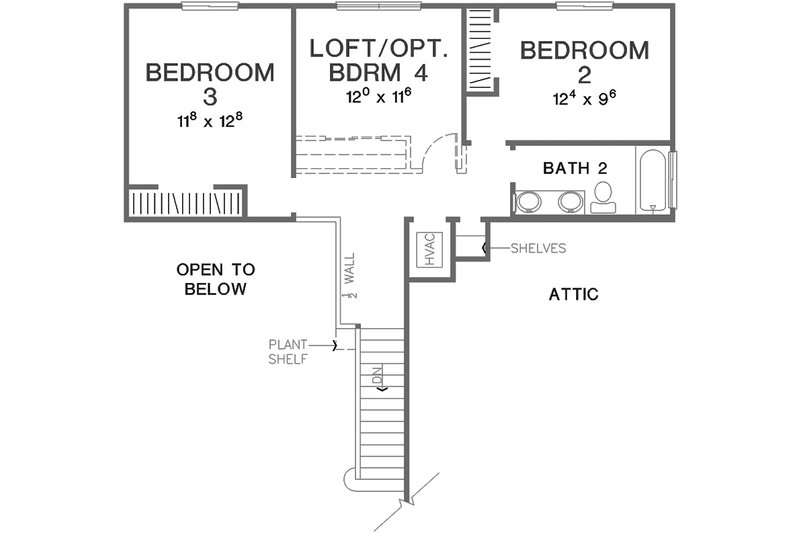

European Floor Plan - Upper Floor Plan Plan #472-405

Full Specs & Features


Dimension
Depth : 43'
Height : 24'
Width : 42'
Area
Basement Unfinished: 1191 sq/ft
First Floor: 1191 sq/ft
Second Floor: 672 sq/ft
Bedroom Features
Walk In Closet
Fireplace
Formal Dining Room
Outdoor Spaces
Courtyard
Loft Balcony

What's Included In This Plan Set


  • ELECTRICAL SCHEMATIC
  • EXTERIOR ELEVATIONS
  • CABINET ELEVATIONS
  • CEILING FRAMING
  • ROOF FRAMING
  • FOUNDATION OF CHOICE AS AVAILABLE (SLAB, CRAWLSPACE OR BASEMENT) APPROPRIATE FOUNDATION DETAIL SHEET
  • BUILDING CROSS SECTION IF MULTISTORY
  • ALSO 4 PAGE FHA DESCRIPTION OF MATERIALS FORM (NOT A MATERIALS LIST OF QUANTITIES)
  • GENERIC WALL SECTIONS
    Note: Reproducible and CAD files are not available if building in Texas, Oklahoma, New Mexico, or Louisiana. Architect must update and stamp all plans being sent to these states.
