Full Specs & Features
Depth : 40' 6"
Height : 33' 2"
Width : 54' 8"
Basement Unfinished: 978 sq/ft

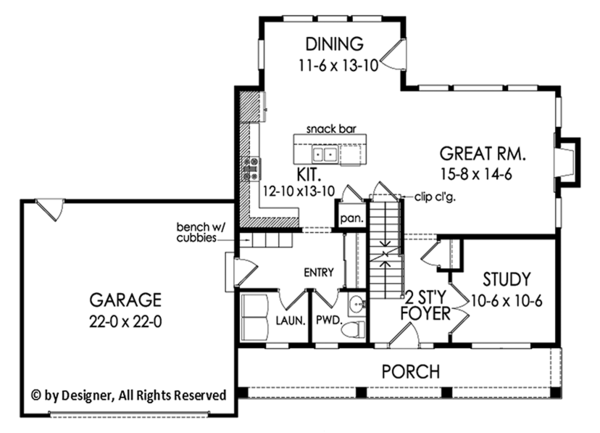

First Floor: 978 sq/ft height 9'
Garage: 479 sq/ft
Porch: 163 sq/ft

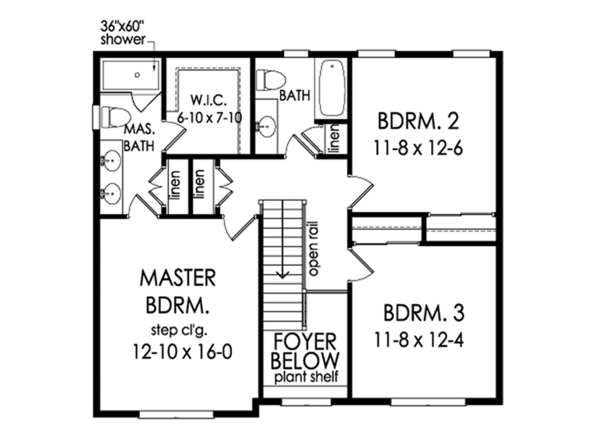

Second Floor: 902 sq/ft
Primary Pitch : 10:12
Roof Framing : Conventional
Roof Type : Shingle
Secondary Pitch : 12:12
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : Wood - 2x6
Upstairs Master Bedrooms
Walk In Closet
Kitchenette Wet Bar
Additional Room Features
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Open Floor Plan
Front Entry Garage
Covered Front Porch
What's Included In This Plan Set
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Roof Plan: ?” scale; this shows roof rafter or trusses and how the roof is framed.
- CAD Plans are in AutoDesk Architecture.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
