Key Specs
1884
sq ft
3
Beds
2.5
Baths
2
Floors
2
Garages
Phone: 1-800-447-0027
See our Terms & Conditions and Privacy Policy.
with Code CTB2024 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 70-1069
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description

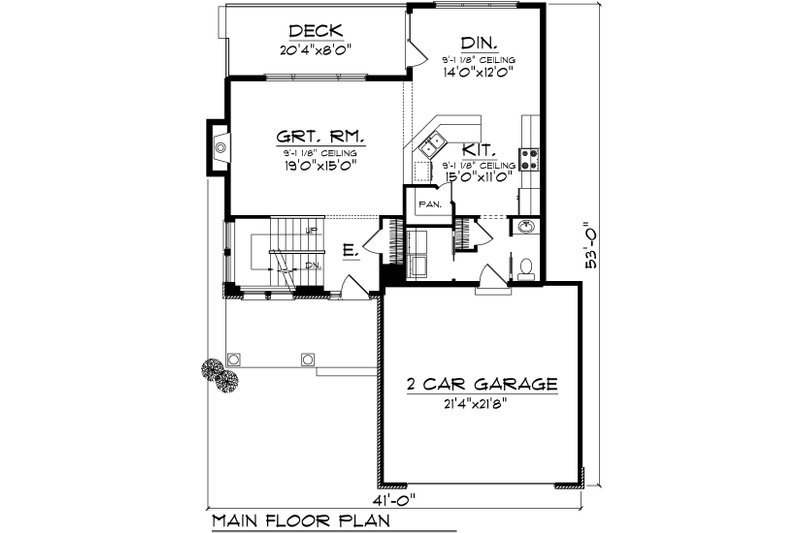

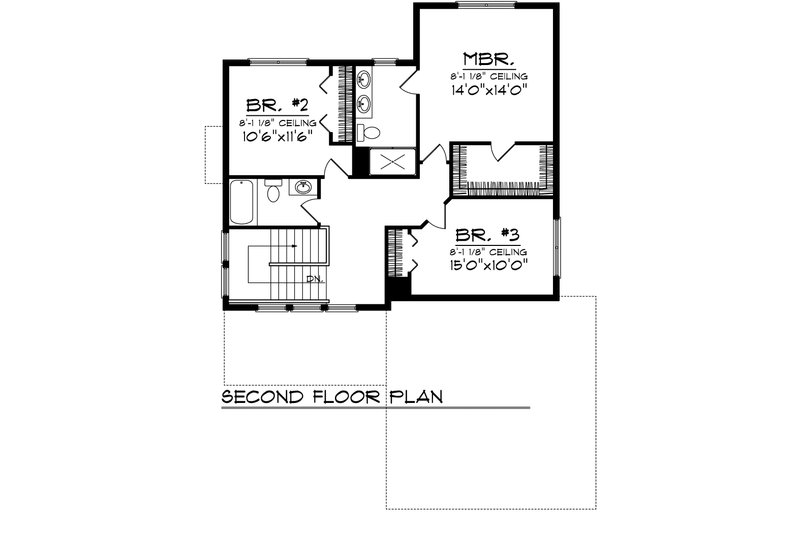

Floor Plans
Full Specs & Features
Dimension
Depth : 53'
Height : 27' 1"
Width : 41' 4"
Area
First Floor: 942 sq/ft height 9'
Garage: 462 sq/ft
Second Floor: 892 sq/ft height 8'
Ceiling
Main Ceiling : 9'
Upper Ceiling Ft : 8'
Roof
Primary Pitch : 9:12
Roof Framing : Truss
Roof Load : 47
Secondary Pitch : 7:12
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : 2x6
Insulation : R-19
Bedroom Features
Upstairs Bedrooms
Upstairs Master Bedrooms
Walk In Closet
Additional Room Features
Great Room Living Room
Main Floor Laundry
Garage Features
Front Entry Garage
Lot Characteristics
Suited For Narrow Lot
Outdoor Spaces
Covered Front Porch
Grill Deck Sundeck
Rooms
Basement:
width 39' x depth 53'
Bedroom 2:
width 10' 6" x depth 11' 6"
Bedroom 2 Closet:
width 2' 1" x depth 8' 2"
Bedroom 3:
width 15' x depth 10'
Bedroom 3 Closet:
width 2' 1" x depth 5' 2"
Breakfast Nook:
width 14' x depth 12'
Deck:
width 20' 4" x depth 8'
Foyer:
width 6' 4" x depth 8' 5"
Front Porch:
width 17' x depth 8'
Garage:
width 21' 4" x depth 21' 8"
Hall Bath:
width 9' 6" x depth 5'
Kitchen:
width 15' x depth 11'
Laundry:
width 5' x depth 6'
Living Room:
width 19' x depth 15'
Master Bathroom:
width 6' 3" x depth 11' 6"
Master Bedroom:
width 14' x depth 14'
Master Closet:
width 10' 9" x depth 5' 4"
Pantry:
width 5' x depth 4'
Powder Room:
width 3' x depth 7'
What's Included In This Plan Set
- Cover sheet with front rendering
- Foundation and floor plans at 1/4" = 1' scale
- Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
- Building sections and details as required to construct the individual design
- Interior elevation of cabinets at 1/4" = 1' scale
- Roof plans
- Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
- Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
- Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
Plan Set
$1006.00
$1060.00
$1257.00
$1257.00
$1999.00
Foundation
$0.00
$395.00
$395.00
Additional Options
$395.00
$80.00
$100.00
$295.00
$39.00
$75.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
