PLAN 1058-209
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 61' 4"
Height : 17' 8"
Width : 36' 8"
Area
Garage : 417 sq/ft
Main Floor : 1304 sq/ft
Porch : 183 sq/ft
Ceiling
Ceiling Details : Kitchen and Owner's suite with vaulted ceilings. Great Roo and Foyer with 10' ceilings.
Main Ceiling : 8'
Roof
Primary Pitch : 6/12
Roof Framing : Trusses
Roof Load : Shingles
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : CMU block
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Additional Room Features
Great Room Living Room
Main Floor Laundry
Garage Features
Front Entry Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
More
Economical To Build
Suited For Vacation Home
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

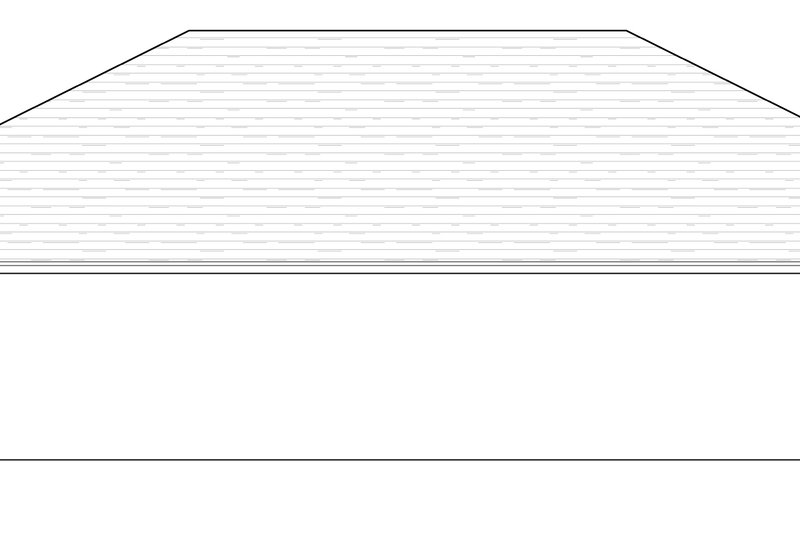

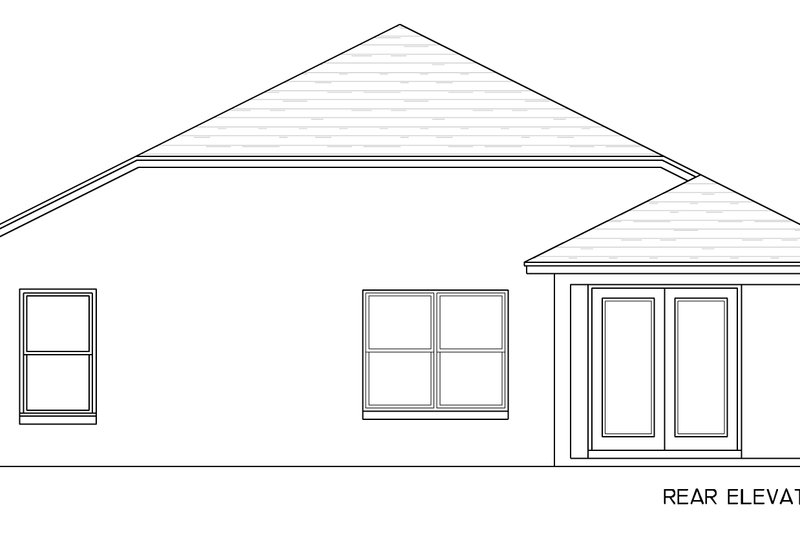

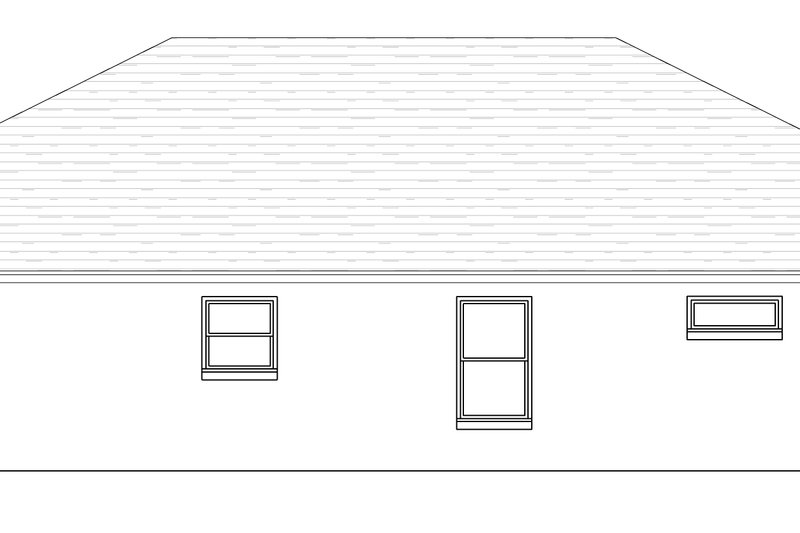

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

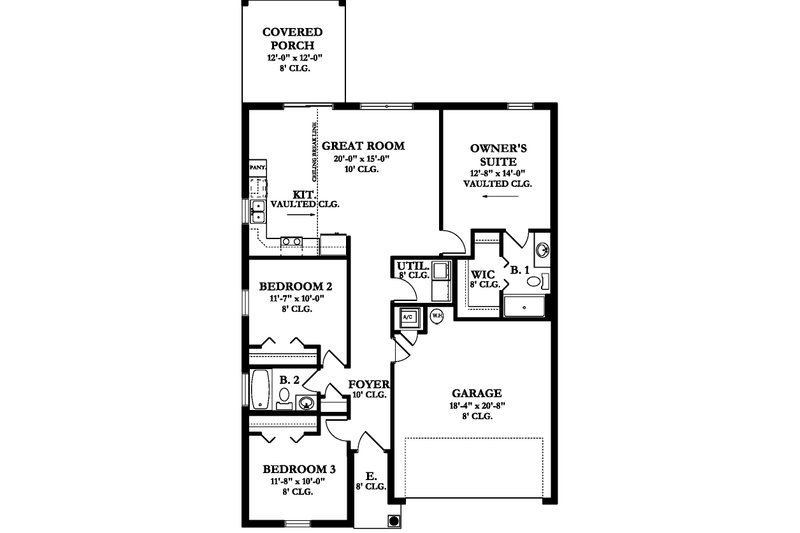

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
