PLAN 472-7

Photographs may show modified designs.

Save
Home  /  Style  /  Modern

Key Specs


Plan Sq Ft

1905
sq ft

Plan Bedrooms

3
Beds

Plan Bathrooms

2.5
Baths

Plan Floors

2
Floors

Plan Garages

2
Garages

Select Plan Set Options

What's included?

Additional options

Dropdown arrow

Subtotal
$995.00
Best Price Guaranteed*

Also order by phone: 1-800-447-0027
Cost-to-Build Estimates

Cost to Build Reports Only $4.99 with Code CTBSUMMER (Limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report
Or order by phone: 1-800-447-0027
Questions about building your home?
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-447-0027
Hours:  Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 472-7

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description

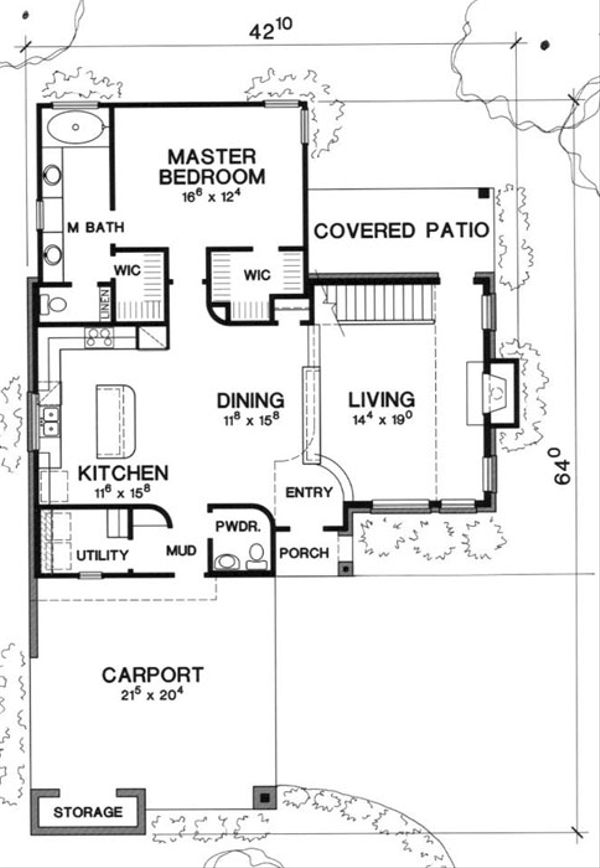

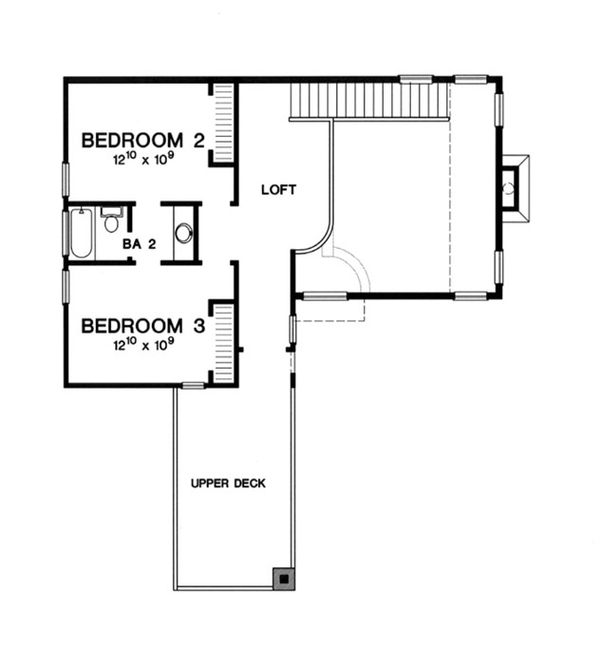

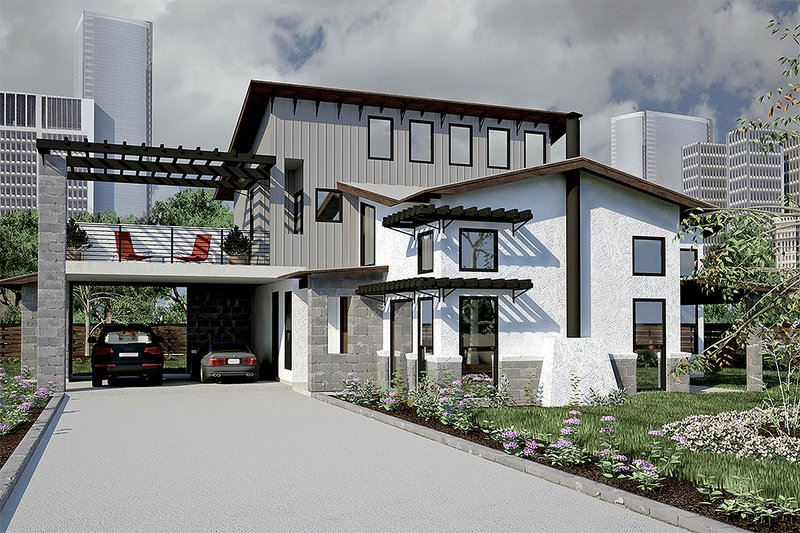

Enter this Retro Urban styled house and you will find a home designed for today's living with the open Island Kitchen and Dining. You step down beyond the bookshelves into the Living Room and up the open tread stairs to the second floor which boasts an outdoor living Balcony. The Master Bedroom is conveniently located on the main floor and has His and Hers walk-in closets.

Full Specs & Features


Dimension

Depth : 64'

Width : 42' 10"

Area

Deck: 219 sq/ft

First Floor: 1300 sq/ft height 9'

Garage: 418 sq/ft height 9'

Porch: 27 sq/ft

Second Floor: 605 sq/ft height 9'

Storage: 35 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'

Upper Ceiling Ft : 9'

Roof

Primary Pitch : 3:12

Roof Framing : stick

Exterior Wall Framing

Exterior Wall Finish : Stucco

Framing : 2"x4"

Bedroom Features

Main Floor Master Bedroom

Upstairs Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Kitchen Island

Additional Room Features

Great Room Living Room

Loft

Main Floor Laundry

Mud Room

Storage Area

Garage Features

Carport Porte Cochere

Lot Characteristics

Suited For Corner Lot

Suited For Narrow Lot

Suited For View Lot

Outdoor Spaces

Balcony

Covered Rear Porch

Grill Deck Sundeck

Structural Information Provided

Foundation Drawing

Rooms

Bedroom 2:

137 sq/ft width 12' 10" x depth 10' 9"

Bedroom 3:

137 sq/ft width 12' 10" x depth 10' 9"

Carport:

435 sq/ft width 21' 5" x depth 20' 4"

Dining Room:

182 sq/ft width 11' 8" x depth 15' 8"

Kitchen:

180 sq/ft width 11' 6" x depth 15' 8"

Living Room:

272 sq/ft width 14' 4" x depth 19'

Master Bedroom:

203 sq/ft width 16' 6" x depth 12' 4"

What's Included In This Plan Set


  • ELECTRICAL SCHEMATIC
  • EXTERIOR ELEVATIONS
  • CABINET ELEVATIONS
  • CEILING FRAMING
  • ROOF FRAMING
  • FOUNDATION OF CHOICE AS AVAILABLE (SLAB, CRAWLSPACE OR BASEMENT) APPROPRIATE FOUNDATION DETAIL SHEET
  • BUILDING CROSS SECTION IF MULTISTORY
  • ALSO 4 PAGE FHA DESCRIPTION OF MATERIALS FORM (NOT A MATERIALS LIST OF QUANTITIES)
  • GENERIC WALL SECTIONS
    Note: Reproducible and CAD files are not available if building in Texas, Oklahoma, New Mexico, Louisiana, Tennessee or Alabama. Architect must update and stamp all plans being sent to these states.
» See important information before purchasing.
Questions? Call 1-800-447-0027

Plan Set

PDF Set:
$995.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set:
$1995.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Crawlspace:
$75.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Basement:
$150.00
Ideal for level lot, lower level of home partially or fully underground.

Additional Options

Right-Reading Reverse:
$200.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets:
$50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design:
$100.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
