Key Specs


1937
sq ft

3
Beds

3.5
Baths

1
Floors

0
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


Whether you have an ocean view, a mountain view or a desert view, this economical 3 bedroom, 4 bath plan would be wonderful as a vacation home or a full time residence. With a single corridor open concept, all 3 bedrooms open directly to the living space eliminating the waste of a hallway. In addition to using sustainable and renewable building materials, there is a truly remarkable folding platform deck that extends the full width of the plan. When in the “down” position, it provides an immense outdoor living area, and when it has been retracted to the “up” position, it provides security and protects the glass front of the home from inclement weather.

Floor Plans


Floor Plan - Other Floor Plan
Modern Floor Plan - Other Floor Plan Plan #542-11

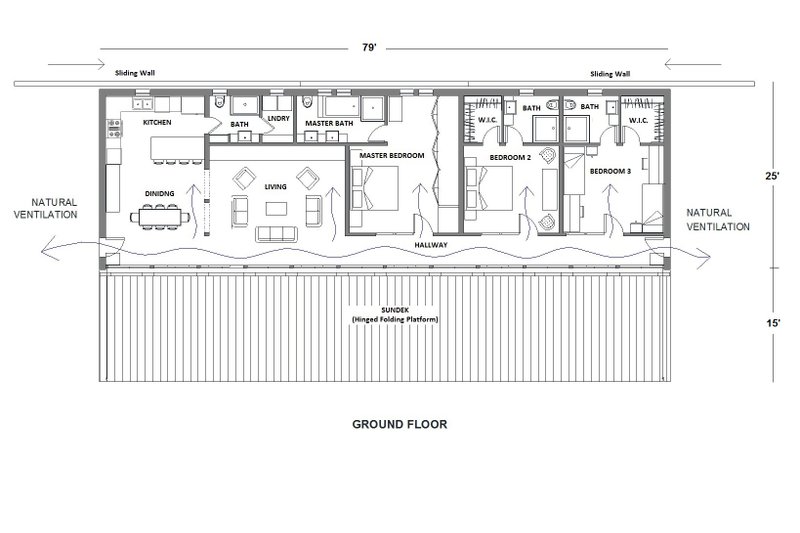

Floor Plan - Main Floor Plan
Modern Floor Plan - Main Floor Plan Plan #542-11

Full Specs & Features


Dimension
Depth : 25'
Height : 16'
Width : 79'
Area
Decks : 1119 sq/ft
Main Floor : 1937 sq/ft
Ceiling
Ceiling Details : Vaults to 15'
Main Ceiling : 12'
Exterior Wall Framing
Insulation : Eco-friendly mineral wood fibre panel
Exterior Wall Finish : Wood, plaster and glass
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Kitchen Island
Additional Room Features
Great Room Living Room
Lot Characteristics
Suited For View Lot
Outdoor Spaces
Grill Deck Sundeck
More
Suited For Vacation Home

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
