PLAN #47-742

Key Specs


1939
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


This unique design begins with a double-door entry into a barrel-vaulted foyer accented by two round-top windows and an arched, glass-block wall. Curved ceilings and open-plan design enhance both the living and dining rooms. The living room is sunken and features a fireplace and box-bay window. The dining room also has a box-bay. Beyond is the U-shaped kitchen, connecting directly to an octagonal breakfast nook. The nook has access to the rear deck and spa beyond. The family room is up just a step or two and is graced by a gas fireplace and conversation alcove with built-in seats. The owners bedroom also has access to the rear deck via a luxurious bath with a spa tub, separate shower and compartmented toilet. Two additional bedrooms share a full bath that has twin vanities.<P/><BR/>

Floor Plans

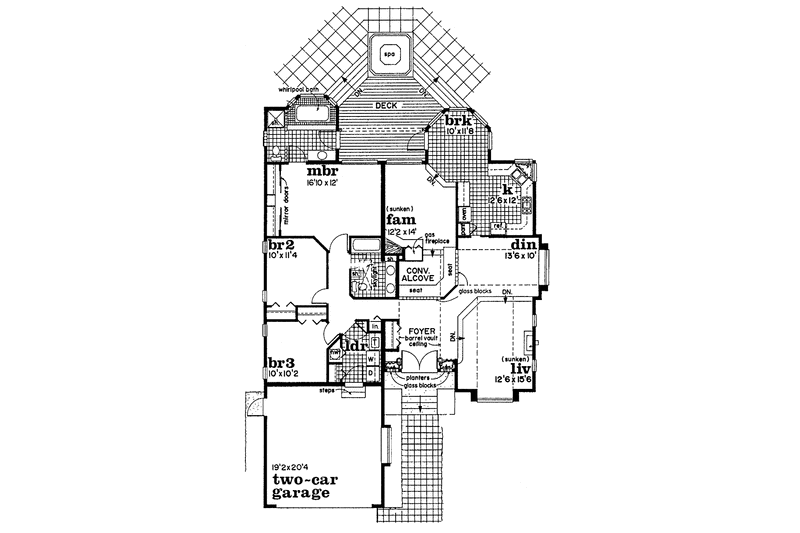

Floor Plan - Main Floor Plan
Contemporary Floor Plan - Main Floor Plan Plan #47-742

Full Specs & Features


Dimension
Depth : 69' 4"
Height : 22'
Width : 46' 6"
Area
First Floor: 1939 sq/ft height 8'
Roof
Roof Framing : Combination Truss/Conventional
Primary Pitch : 7:12
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x6
Bedroom Features
Fireplace
Formal Living Room / Parlor
Additional Room Features
Family Room Keeping Room
Outdoor Spaces
Covered Front Porch
Rooms

3rd BR Closet:

9 sq/ft width 2' x depth 4' 10"

Basement Foundation:

2225 sq/ft width 50' x depth 44' 6"

Bedroom 2:

113 sq/ft width 11' 4" x depth 10'

Bedroom 2 Closet:

9 sq/ft width 2' x depth 4' 10"

Bedroom 3:

101 sq/ft width 10' 2" x depth 10'

Bedroom 3 Closet:

9 sq/ft width 2' x depth 4' 10"

Breakfast Room:

116 sq/ft width 11' 8" x depth 10'

Crawlspace Foundation:

2225 sq/ft width 50' x depth 44' 6"

Dining Room:

135 sq/ft width 10' x depth 13' 6"

Foyer:

91 sq/ft width 8' 4" x depth 11'

Garage:

386 sq/ft width 20' 2" x depth 19' 2"

Gathering Room:

170 sq/ft width 14' x depth 12' 2"

Hall Bathroom:

70 sq/ft width 9' 8" x depth 7' 4"

Hall Closet:

8 sq/ft width 4' 4" x depth 2'

Kitchen:

150 sq/ft width 12' x depth 12' 6"

Living Room:

193 sq/ft width 15' 6" x depth 12' 6"

Master Bathroom:

101 sq/ft width 8' 10" x depth 11' 6"

Master Bedroom:

201 sq/ft width 12' x depth 16' 10"

Master Closet:

24 sq/ft width 12' x depth 2'

Wash Room:

44 sq/ft width 8' x depth 5' 6"

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

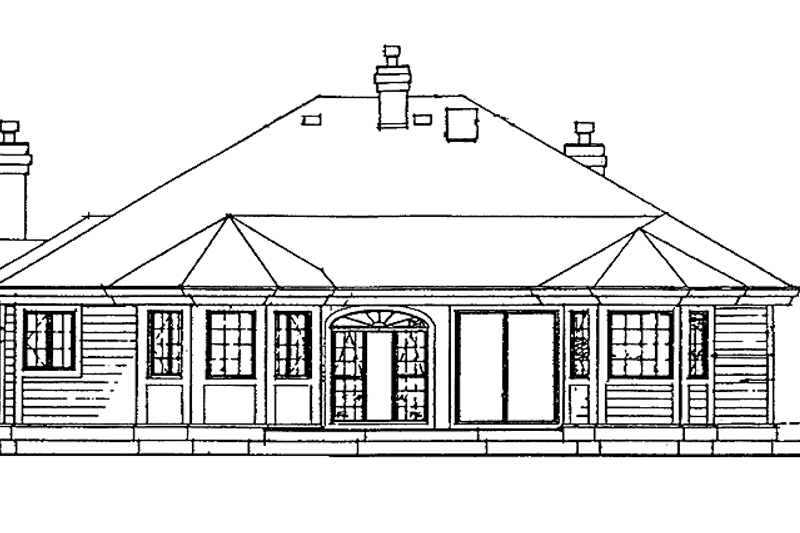

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
