Open living area defines this narrow lot plan with an attractive front porch with Craftsman accents. There is plenty of privacy with a separate living room that can be a den or study and 3 good-sized bedrooms. Off the family room, there is a nice covered rear porch that has so many potential uses.

Floor Plans

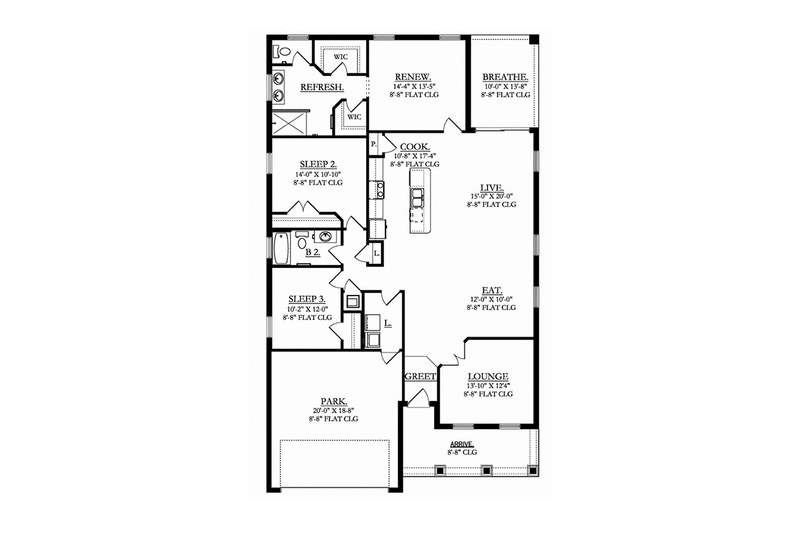

Floor Plan - Main Floor Plan

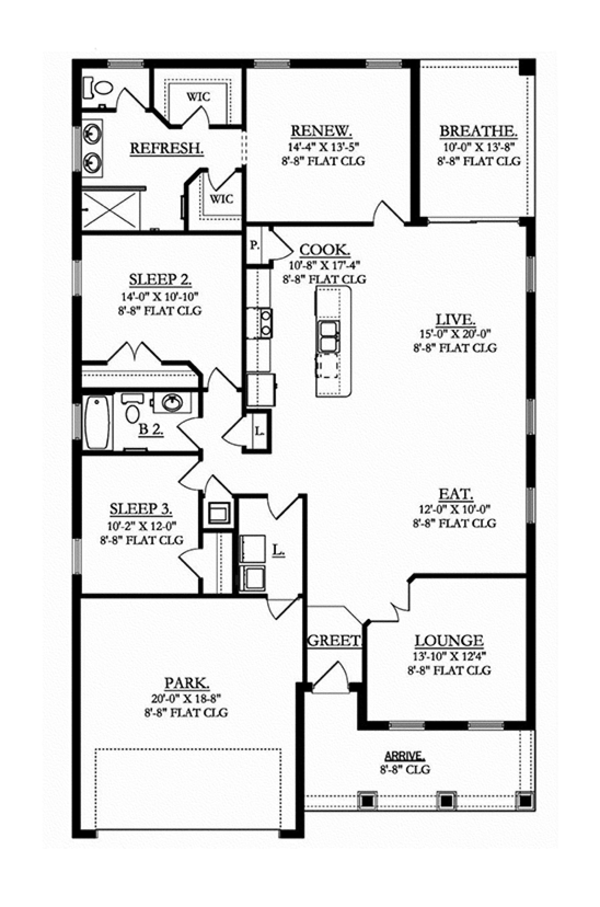

Craftsman Floor Plan - Main Floor Plan Plan #1058-71

Full Specs & Features

Depth : 67' 4"
Height : 17' 5"
Width : 40'
First Floor: 1940 sq/ft height 8' 8"
Garage: 414 sq/ft height 8' 8"
Primary Pitch : 5:12
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : Block
Bedroom Features
Formal Living Room / Parlor
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Kitchen Island
Kitchenette Wet Bar
Additional Room Features
Family Room Keeping Room
Main Floor Laundry
Open Floor Plan
Garage Features
Front Entry Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch

Bedroom 2:

152 sq/ft width 14' x depth 10' 10"

Bedroom 3:

122 sq/ft width 10' 2" x depth 12'

Covered Front Porch:

138 sq/ft

Covered Rear Porch:

138 sq/ft width 10' x depth 13' 8"

Dining Area:

120 sq/ft width 12' x depth 10'

Family Room:

300 sq/ft width 15' x depth 20'


414 sq/ft width 20' x depth 18' 8"


185 sq/ft width 10' 8" x depth 17' 4"

Living Room:

171 sq/ft width 13' 10" x depth 12' 4"

Master Bedroom:

192 sq/ft width 14' 4" x depth 13' 5"

What's Included In This Plan Set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

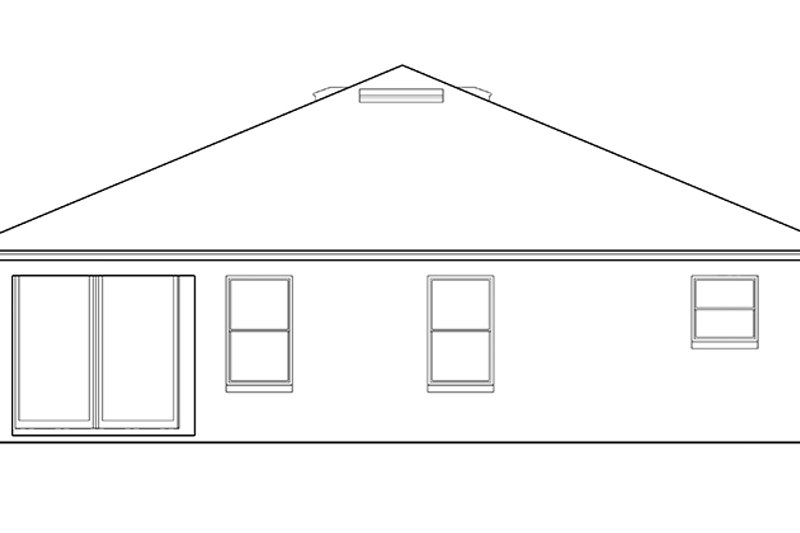

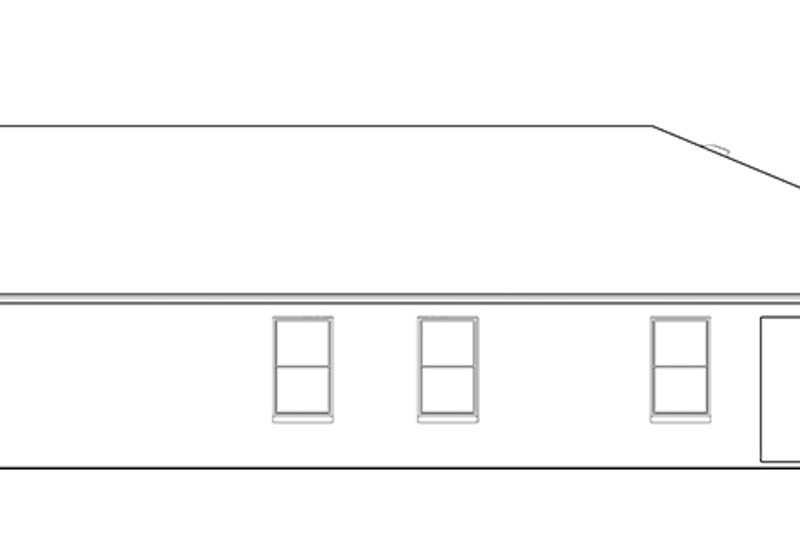

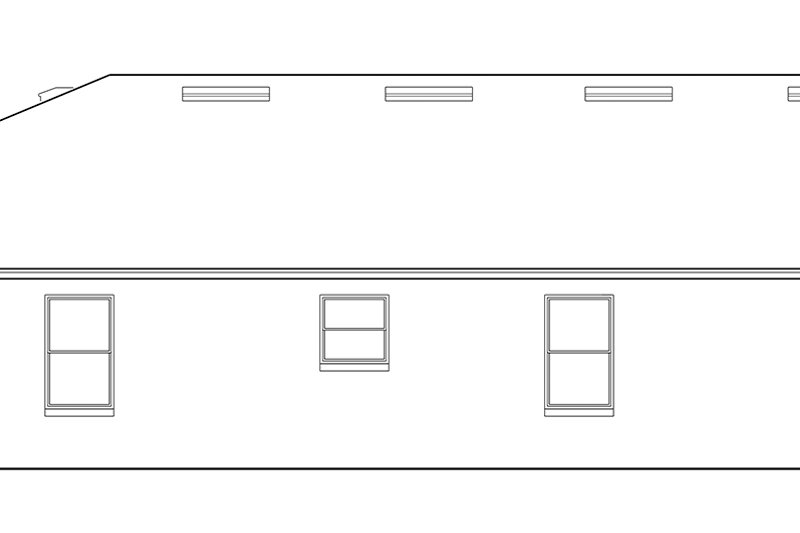

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
