PLAN 18-238
Photographs may show modified designs.
Get Personalized Help
Key Specs
1961
sq ft
4
Beds
2.5
Baths
2
Floors
2
Garages
WOW!
Cost to Build Reports
are Only $4.99
with Code CTB2023 (limit 1)
with Code CTB2023 (limit 1)
This report will provide you cost estimates based on location and building materials.
Construction Engineering Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
Get the Guide
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-447-0027
Phone: 1-800-447-0027
Hours: Mon - Fri 9:00 - 8:30 (EDT)
See our Terms & Conditions and Privacy Policy.
PLAN 18-238
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Floor Plans

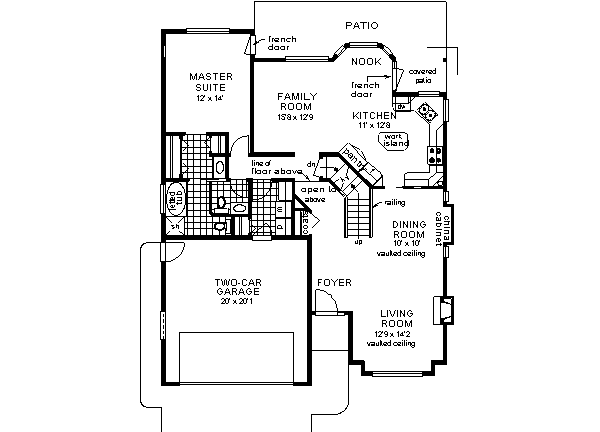

Floor Plan - Main Floor

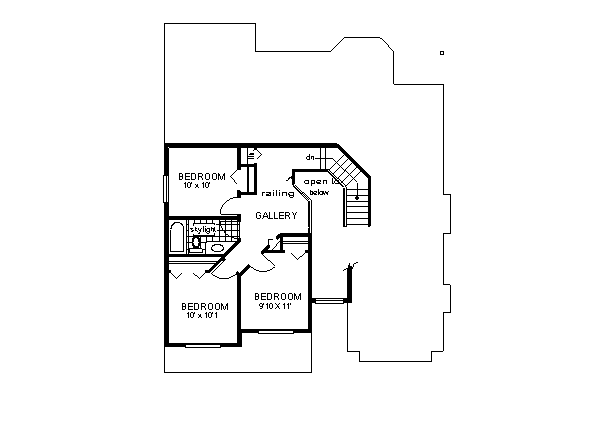

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 50' 4"
Height : 25' 6"
Width : 40'
Area
First Floor: 1372 sq/ft height 8'
Second Floor: 589 sq/ft height 8'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 8'
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Roof Type : Asphalt
Exterior Wall Framing
Exterior Wall Finish : Stone/Stucco
Framing : 2"x6"
Bedroom Features
Main Floor Master Bedroom
Kitchen Features
Breakfast Nook
Kitchen Island
Additional Room Features
Family Room Keeping Room
Lot Characteristics
Suited For Narrow Lot
Suited For View Lot
Outdoor Spaces
Covered Rear Porch
Rooms
Bedroom 2:
width 10' x depth 10' 1"
Bedroom 3:
width 10' x depth 10'
Bedroom 4:
width 9' 10" x depth 11'
Dining Room:
width 10' x depth 10'
Family Room:
width 15' 8" x depth 12' 9"
Garage:
width 20' x depth 20' 1"
Kitchen:
11 sq/ft width 1' x depth 8'
Living Room:
width 12' 9" x depth 14' 2"
Master Bedroom:
width 12' x depth 14'
