An impressive arched entry graces this transitional one-story design. An elegant foyer introduces an open gathering room/dining room combination. A front-facing study with a sloped ceiling could easily be converted to a guest room with a full bath accessible from the rear of the room. In the kitchen, such features as an island cooktop and a built-in desk add style and convenience. A corner bedroom offers front and side views, and the nearby master suite sports a whirlpool bath and walk-in closet, and offers access to the rear terrace. Other special features of the plan include multipane windows, a warming fireplace, a covered dining porch, and a two-car garage. Note the handy storage closet in the laundry area.<P/><BR/>

Floor Plans

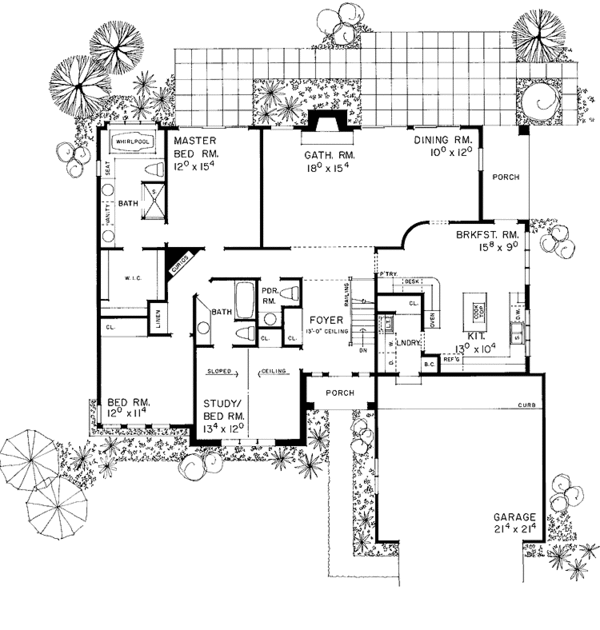

Floor Plan - Main Floor Plan
Mediterranean Floor Plan - Main Floor Plan Plan #72-996

Full Specs & Features

Depth : 56' 4"
Height : 26'
Width : 58'
First Floor: 1981 sq/ft height 9'
Bedroom Features
Main Floor Master Bedroom
Split Bedrooms
Formal Dining Room
Kitchen Features
Kitchen Island
Breakfast Nook
Additional Room Features
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Outdoor Spaces
Covered Front Porch
Covered Rear Porch

3rd BR Closet:

17 sq/ft width 6' 6" x depth 2' 8"

Dining Room:

120 sq/ft width 12' x depth 10'


width 3' 6" x depth 0"

Laundry Room:

51 sq/ft width 5' 5" x depth 9' 6"

Master Bathroom:

124 sq/ft width 8' 4" x depth 15'

Master Bedroom:

183 sq/ft width 15' 4" x depth 12'

Powder Room:

33 sq/ft width 6' x depth 5' 6"

Walk-In Closet:

68 sq/ft width 8' 3" x depth 8' 3"

What's Included In This Plan Set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Plan Set
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set :
5 printed plan sets mailed to you.
8 Copy Set :
8 printed plan sets mailed to you.
Reproducible Set :
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Ideal for level lot, lower level of home partially or fully underground.
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Daylight Basement:
Ideal for sloping lot, lower level of home partially underground.
Ideal for level lot, single layer concrete poured directly on grade.
Wood 2x6:
Wood 2x6
Additional Options
Material List :
A list of building supplies needed to construct the infrastructure of your new house.
Right-Reading Reverse :
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Home Furniture Planner :
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
Receive an overlay sheet with suggested placement of lighting fixtures.
Audio Video Design :
Receive an overlay sheet with suggested placement of audio and video components.
