Key Specs


1984
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

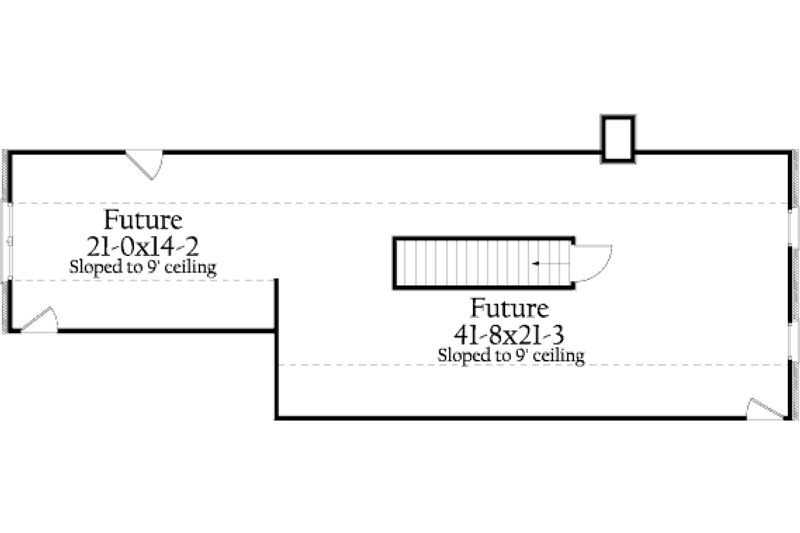

Floor Plan - Other Floor Plan
Southern Floor Plan - Other Floor Plan Plan #406-9620

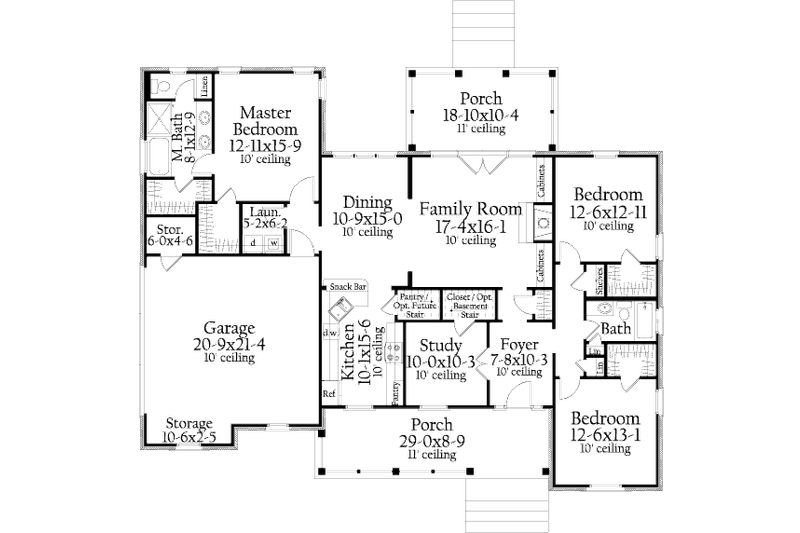

Floor Plan - Main Floor Plan
Southern Floor Plan - Main Floor Plan Plan #406-9620

Full Specs & Features


Dimension
Depth : 52' 4"
Height : 26'
Width : 64' 6"
Area
Bonus: 1192 sq/ft
First Floor: 1984 sq/ft
Garage: 500 sq/ft
Storage: 35 sq/ft
Ceiling
Main Ceiling : 10'
Upper Ceiling Ft : 9'
Roof
Roof Framing : 2x8 Framing
Primary Pitch : 9:12
Secondary Pitch : 12:12
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : brick veneer/siding
Framing : 2"x4"
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Eating Bar
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Play Flex Room
Storage Area
Unfinished Future Space
Garage Features
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms

Bedroom 2:

163 sq/ft width 12' 6" x depth 13' 1"

Bedroom 3:

161 sq/ft width 12' 6" x depth 12' 11"

Bonus Room - Unfinished:

297 sq/ft width 21' x depth 14' 2"

Bonus Room - Unfinished:

885 sq/ft width 41' 8" x depth 21' 3"

Family Room:

278 sq/ft width 17' 4" x depth 16' 1"

Foyer:

78 sq/ft width 7' 8" x depth 10' 3"

Garage:

442 sq/ft width 20' 9" x depth 21' 4"

Kitchen:

156 sq/ft width 10' 1" x depth 15' 6"

Laundry Room:

31 sq/ft width 5' 2" x depth 6' 2"

Master Bedroom:

203 sq/ft width 12' 11" x depth 15' 9"

Porch - Front:

253 sq/ft width 29' x depth 8' 9"

Porch - Rear:

194 sq/ft width 18' 10" x depth 10' 4"

Storage:

27 sq/ft width 6' x depth 4' 6"

Study:

102 sq/ft width 10' x depth 10' 3"

What's Included In This Plan Set


  • The first sheet is the cover sheet which outline the Design Criteria and Construction Notes, such as general site, foundation, framing and mechanical notes
  • The second sheet is typically the front and side elevation drawn to 1/4" scale.
  • The third sheet is the rear and side elevation drawn to 1/4" scale.
  • The foundation of your choice (slab, crawl space or basement). Floor Plan 1/4" Scale
  • Detail and Section Page
  • Cabinet elevations & Roof Plan
  • Electrical Plan
  • Foundation Details
