Full Specs & Features
Depth : 70'
Height : 22'
Width : 41' 6"

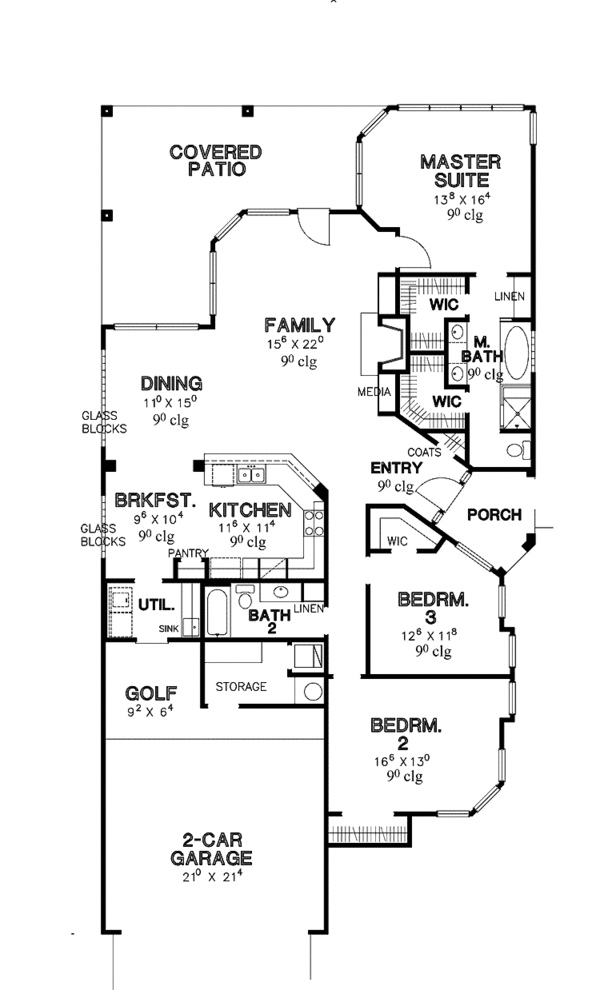

First Floor: 1986 sq/ft height 9'
Primary Pitch : 7:12
Roof Framing : Conventional
Roof Type : Tile
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : Wood - 2x4
Kitchenette Wet Bar
Additional Room Features
Great Room Living Room
Main Floor Laundry
Covered Rear Porch
What's Included In This Plan Set
- ELECTRICAL SCHEMATIC
- EXTERIOR ELEVATIONS
- CABINET ELEVATIONS
- CEILING FRAMING
- ROOF FRAMING
- FOUNDATION OF CHOICE AS AVAILABLE (SLAB, CRAWLSPACE OR BASEMENT) APPROPRIATE FOUNDATION DETAIL SHEET
- BUILDING CROSS SECTION IF MULTISTORY
- ALSO 4 PAGE FHA DESCRIPTION OF MATERIALS FORM (NOT A MATERIALS LIST OF QUANTITIES)
- GENERIC WALL SECTIONS
Note: Reproducible and CAD files are not available if building in Texas, Oklahoma, New Mexico, Louisiana, Tennessee or Alabama. Architect must update and stamp all plans being sent to these states.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
