Full Specs & Features
Depth : 57'
Height : 22'
Width : 66'

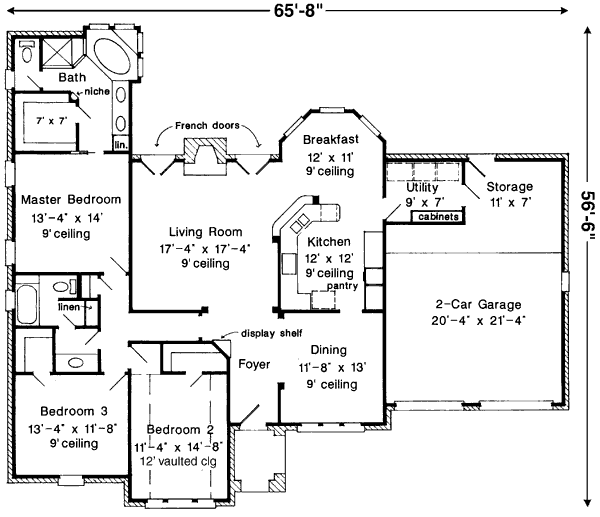

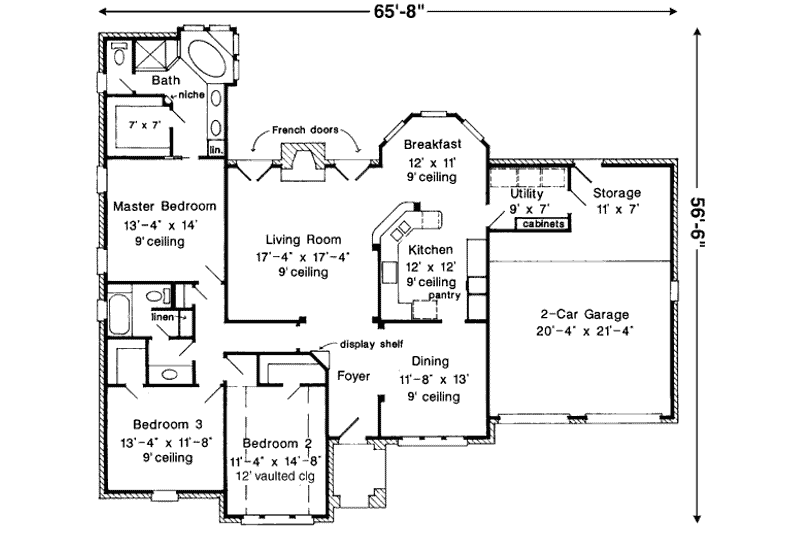

First Floor: 1994 sq/ft height 9'
Roof Framing : Conventional
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : 2"x4"
Walk In Closet
Additional Room Features
Covered Front Porch
165 sq/ft width 11' 4" x depth 14' 7"
154 sq/ft width 13' 4" x depth 11' 7"
132 sq/ft width 12' x depth 11'
150 sq/ft width 11' 7" x depth 13'
144 sq/ft width 12' x depth 12'
300 sq/ft width 17' 4" x depth 17' 4"
186 sq/ft width 13' 4" x depth 14'
63 sq/ft width 9' x depth 7'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
