PLAN #314-274

Key Specs


1996
sq ft

3
Beds

2.5
Baths

1
Floors

2
Garages

This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


Here's a standout new plan with a beautiful façade and thoughtful layout details. For example, a wall of glass in back lets lots of light into the great room and breakfast nook, with the fireplace moved to a side wall to keep the view clear. The master suite resides on this level, a good choice for aging in place. Growing families can opt to finish the fourth and fifth bedrooms upstairs. Extra storage in the garage is a welcome touch.

Floor Plans

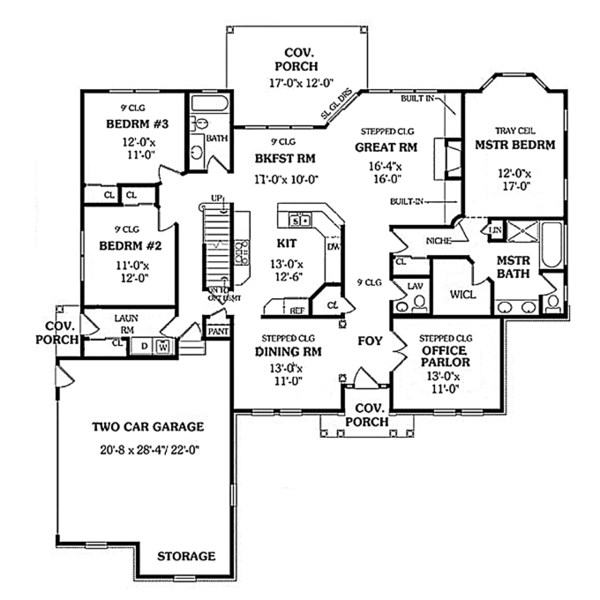

Floor Plan - Main Floor Plan
Colonial Floor Plan - Main Floor Plan Plan #314-274

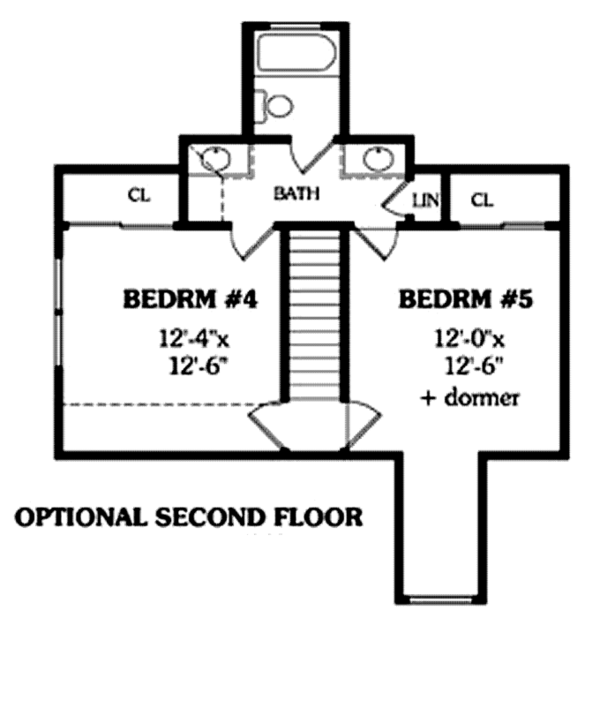

Floor Plan - Other Floor Plan
Colonial Floor Plan - Other Floor Plan Plan #314-274

Full Specs & Features


Dimension
Depth : 66' 6"
Height : 26'
Width : 61' 6"
Area
Basement Unfinished: 1996 sq/ft
Bonus: 559 sq/ft
First Floor: 1996 sq/ft
Garage: 537 sq/ft
Bedroom Features
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Kitchen Features
Kitchenette Wet Bar
Breakfast Nook
Additional Room Features
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Garage Features
Side Entry Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms

Bedroom 2:

width 11' x depth 12'

Bedroom 3:

width 12' x depth 11'

Bedroom 4:

width 12' 4" x depth 12' 6"

Bedroom 5:

width 12' x depth 12' 6"

Breakfast Nook:

width 11' x depth 10'

Dining Room:

width 13' x depth 11'

Great Room:

width 16' 4" x depth 16'

Kitchen:

width 13' x depth 12' 6"

Master Bedroom:

width 12' x depth 17'

Office:

width 13' x depth 11'

Porch - Rear:

188 sq/ft width 17' x depth 12'

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Plan Set
5 Copy Set :
$735.00
5 printed plan sets mailed to you.
8 Copy Set :
$795.00
8 printed plan sets mailed to you.
PDF Set :
$895.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
$920.00
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
Foundation
Crawlspace:
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Basement:
$100.00
Ideal for level lot, lower level of home partially or fully underground.
Daylight Basement:
$175.00
Ideal for sloping lot, lower level of home partially underground.
Framing
Wood 2x4:
$0.00
Wood 2x4
Additional Options
Right-Reading Reverse :
350.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
60.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Home Furniture Planner :
19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
100.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Audio Video Design :
100.00
Receive an overlay sheet with suggested placement of audio and video components.
